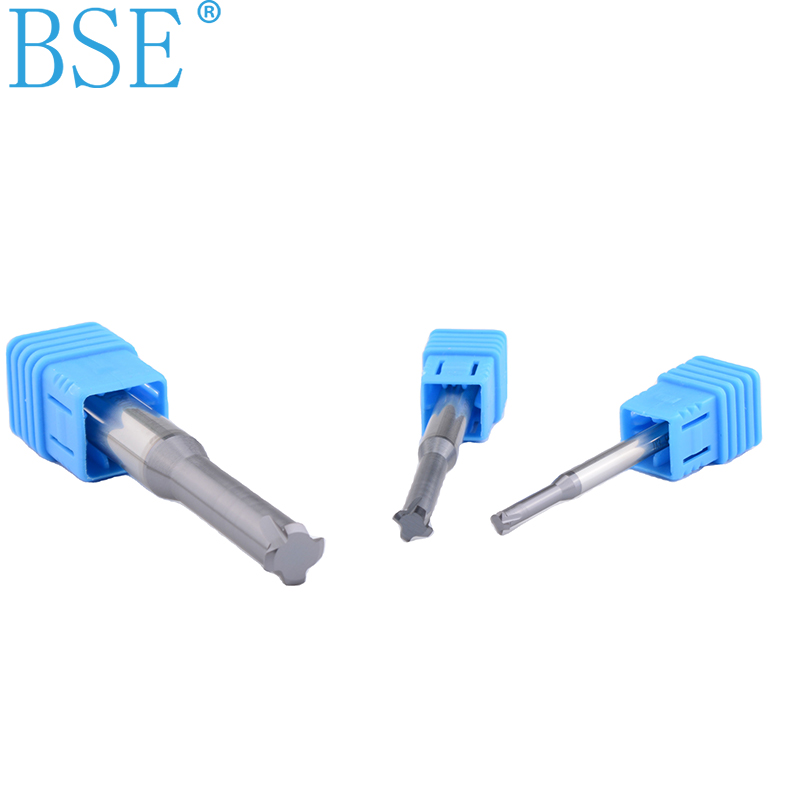

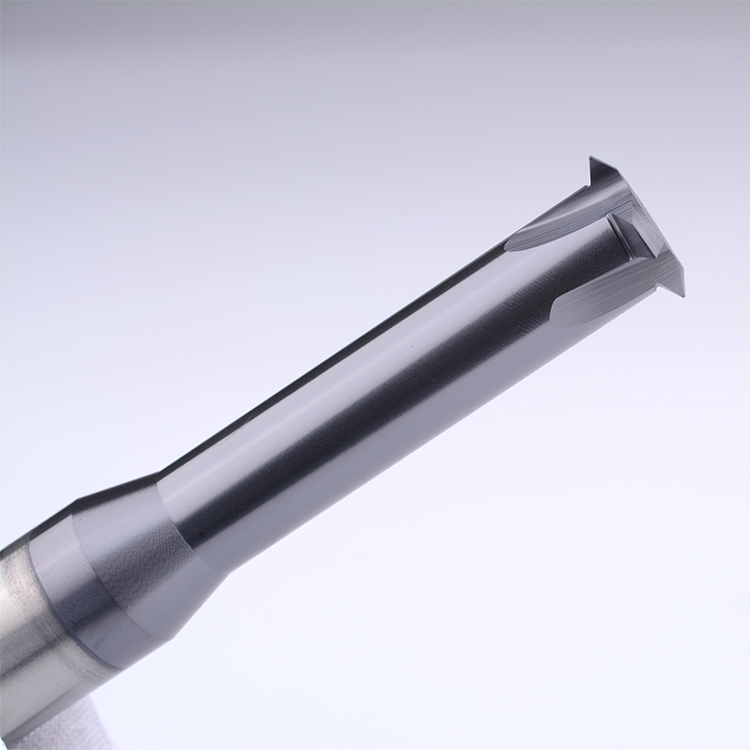

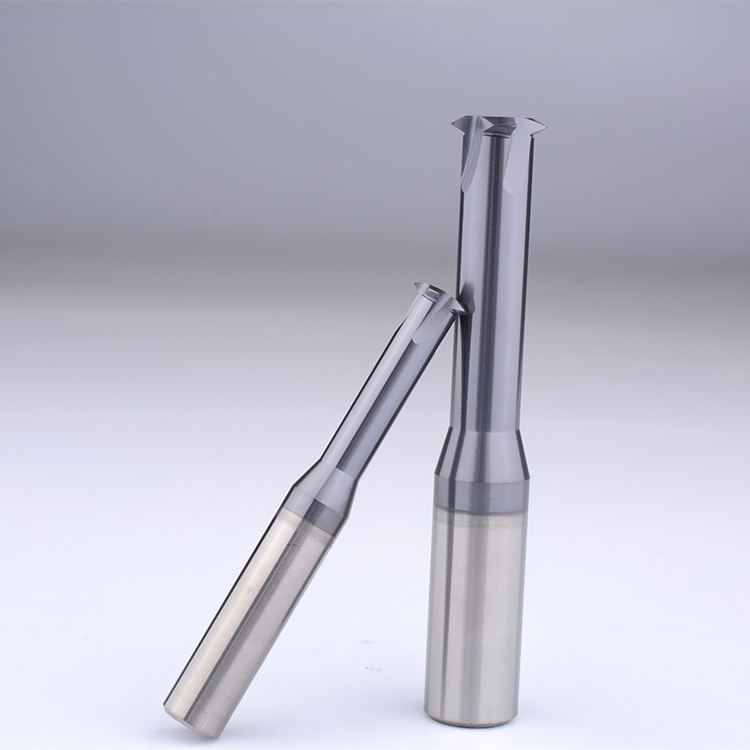

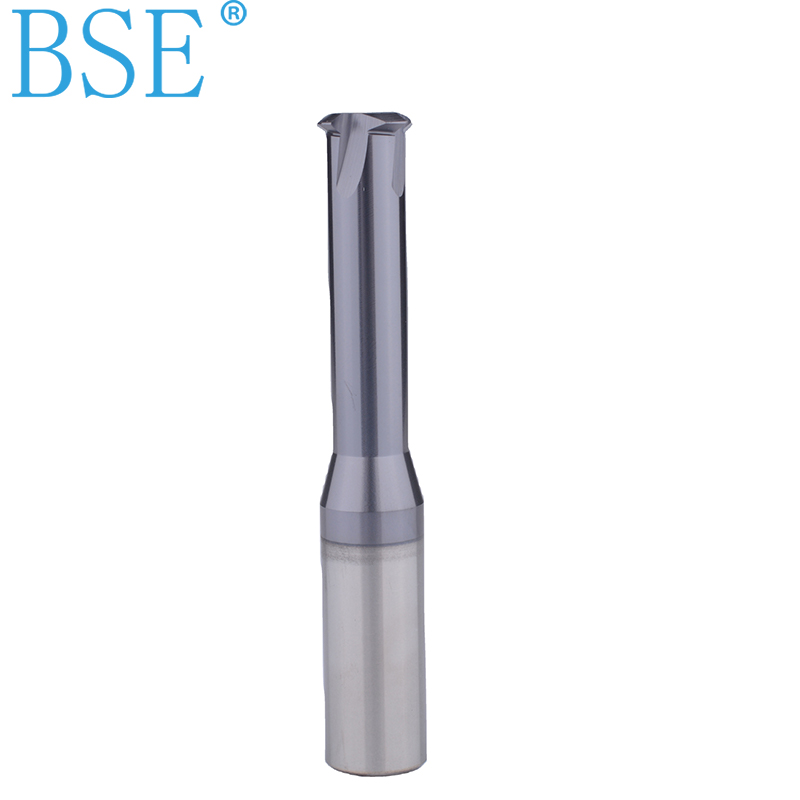

The knife edge is sharp and wear-resistant, featuring excellent chip removal, high processing efficiency, precision threading, and exceptional durability.

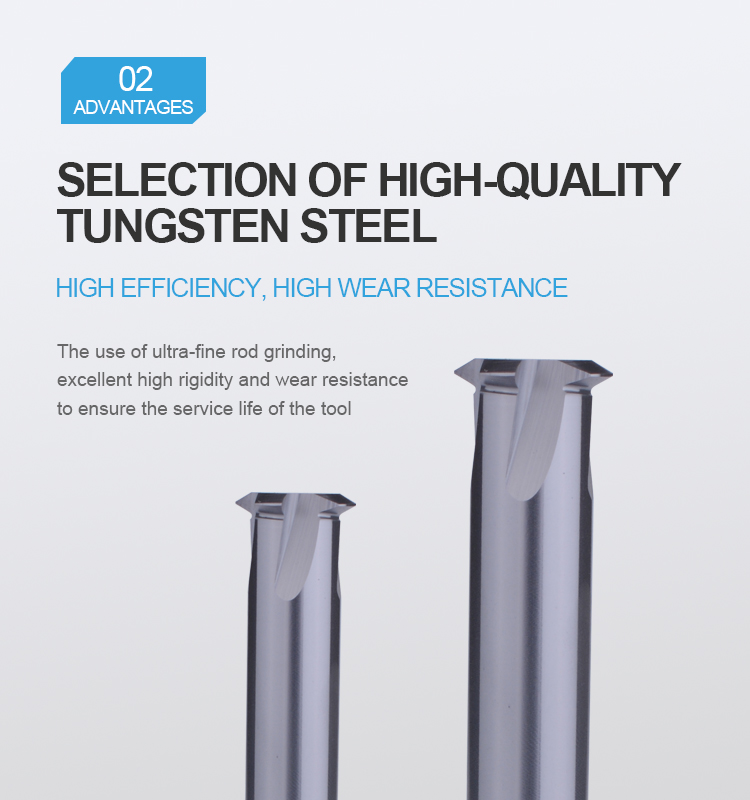

Constructed using ultra-fine rod grinding, providing outstanding rigidity and wear resistance to maximize the operating life of the tool.

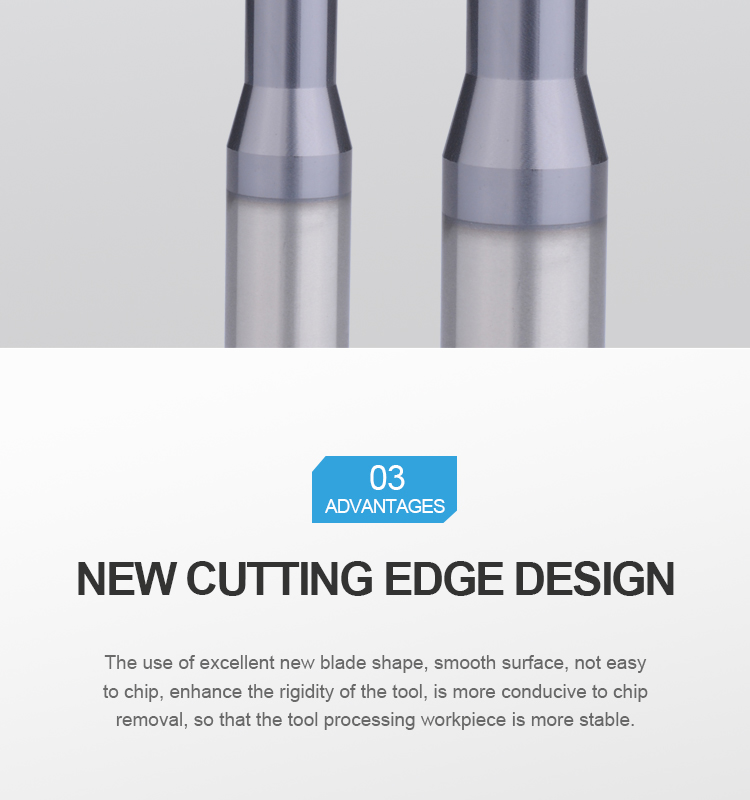

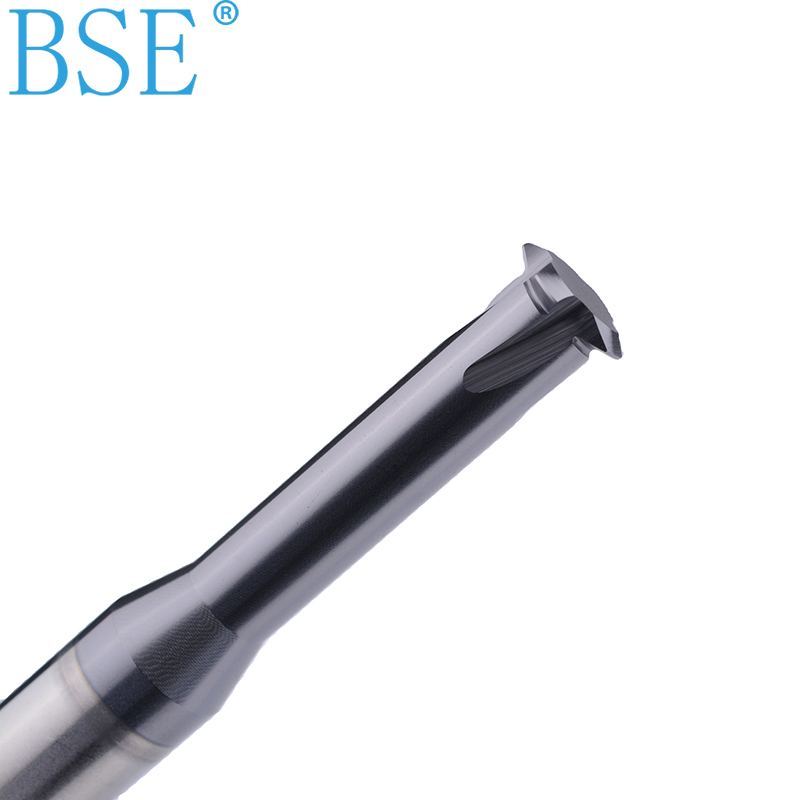

Employs an advanced blade geometry with a smooth surface that prevents chipping, enhances tool rigidity, and stabilizes workpiece processing.

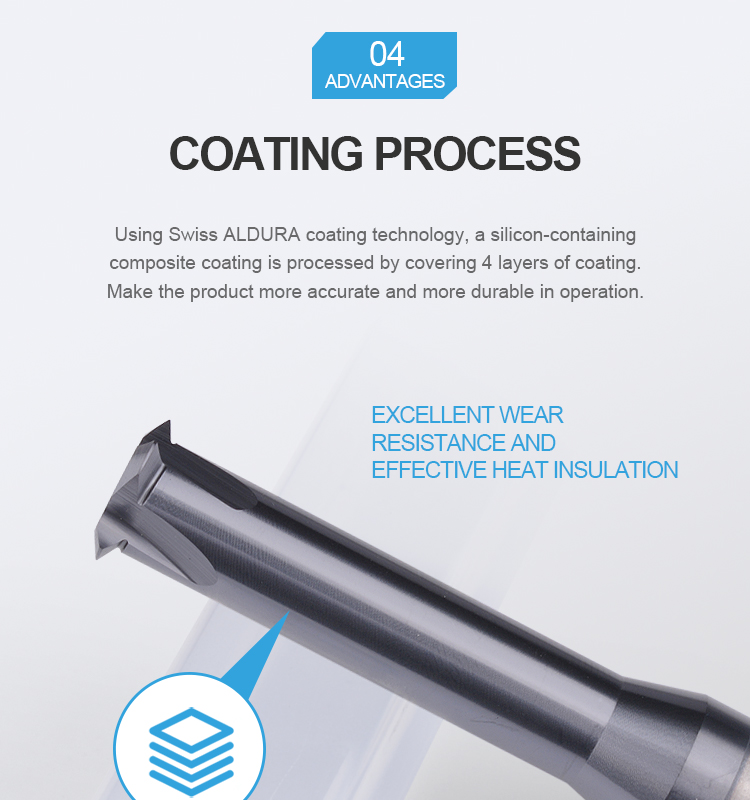

Utilizes Swiss ALDURA coating technology, applying a 4-layer silicon-containing composite coating for enhanced operational precision and durability.

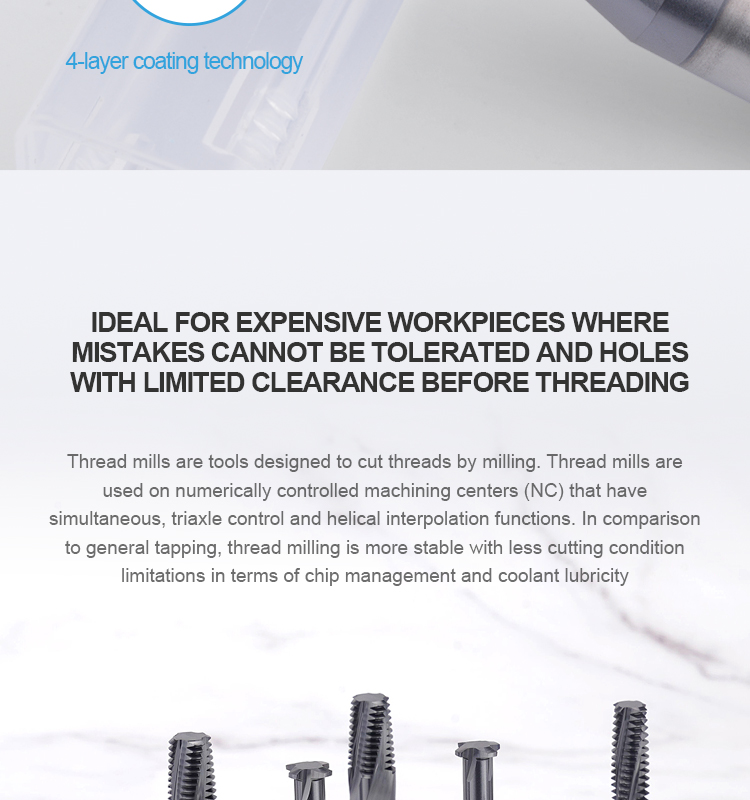

Perfectly engineered for expensive workpieces with tight tolerances and holes with limited clearance before threading.
Suitable for aluminum, copper, cast iron, stainless steel, alloy steel, tool steel, titanium alloy, and more.
| Material Type | Hardness (HRC) | Vc (m/min) | F (mm/min) |
|---|---|---|---|
| Cast Iron | - | 50 - 120 | 0.1 - 0.22 |
| Alloy Steel / Tool Steel | 30HRC | 80 - 200 | 0.03 - 0.1 |
| Hardened Steel | 40HRC | 60 - 180 | 0.03 - 0.07 |
| High Hardened Steel | 50HRC | 60 - 160 | 0.01 - 0.03 |

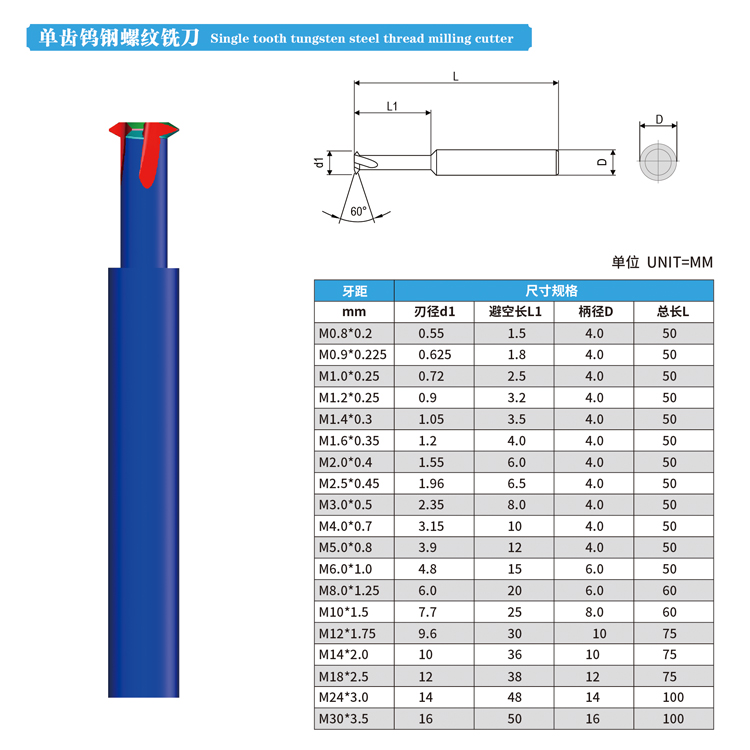

| Thread Model (mm) | Blade Diameter (mm) | Cutting Length (mm) | Shank Diameter (mm) | Total Length (mm) |
|---|---|---|---|---|
| M1.0 * 0.25 | 0.72 | 2.5 | 4 | 50 |
| M1.2 * 0.25 | 0.90 | 3.2 | 4 | 50 |
| M1.4 * 0.30 | 1.05 | 3.5 | 4 | 50 |
| M1.6 * 0.35 | 1.20 | 4.0 | 4 | 50 |
| M2.0 * 0.40 | 1.55 | 6.0 | 4 | 50 |
| M2.5 * 0.45 | 1.96 | 6.5 | 4 | 50 |
| M3.0 * 0.50 | 2.35 | 8.0 | 4 | 50 |
| M4.0 * 0.70 | 3.15 | 10.0 | 4 | 50 |
| M5.0 * 0.80 | 3.90 | 12.0 | 4 | 50 |
| M6.0 * 1.00 | 4.80 | 15.0 | 6 | 60 |
| M8.0 * 1.25 | 6.00 | 20.0 | 6 | 60 |
| M10 * 1.50 | 7.70 | 25.0 | 8 | 75 |
| M12 * 1.75 | 9.60 | 30.0 | 10 | 75 |
| M14 * 2.00 | 10.00 | 36.0 | 10 | 75 |
| M18 * 2.50 | 12.00 | 38.0 | 12 | 100 |
The tool is highly versatile and suitable for a wide range of materials, including aluminum, copper, cast iron, stainless steel, alloy steel, tool steel, and titanium alloys.
The Swiss ALDURA coating utilizes 4 layers of silicon-containing composite coating. It offers excellent wear resistance and effective heat insulation, significantly increasing machining precision and tool service life.

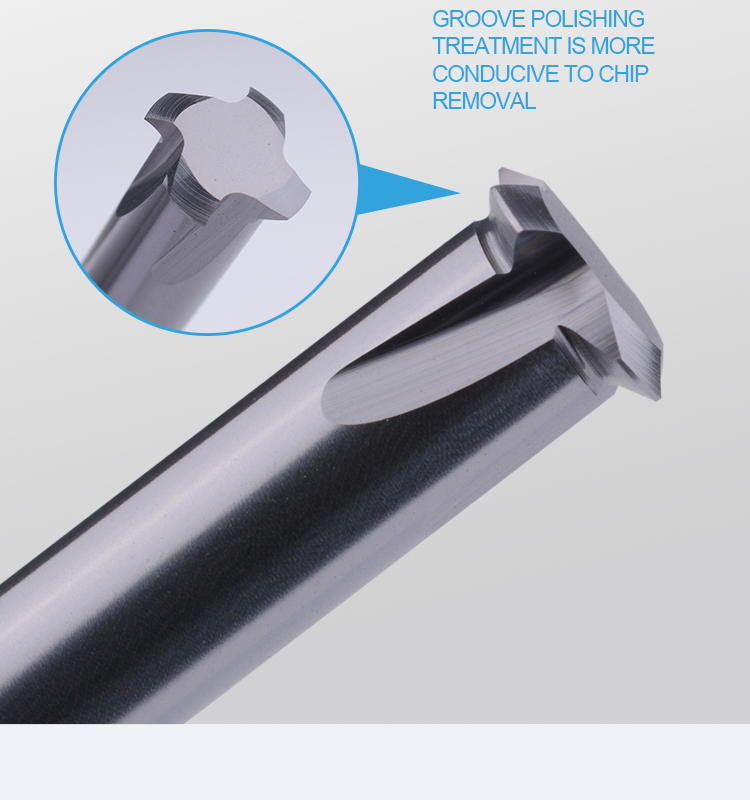

The groove polishing treatment helps with efficient chip removal, reducing resistance. It makes the cutting edge less prone to chipping and stabilizes the workpiece during high-efficiency machining.

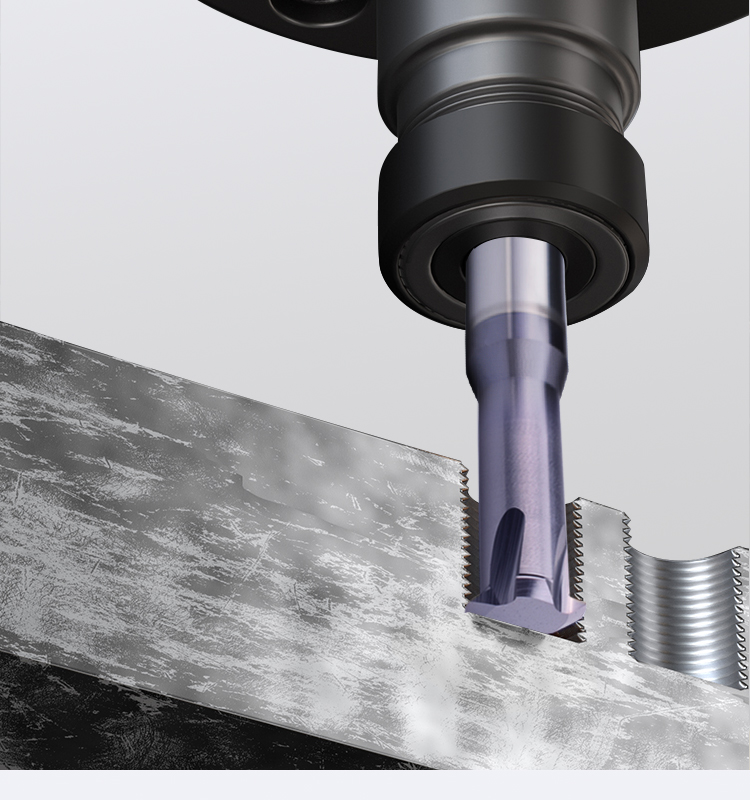

Yes. It is ideal for complex scenarios, including expensive workpieces where errors cannot be tolerated and holes with limited clearance before threading.

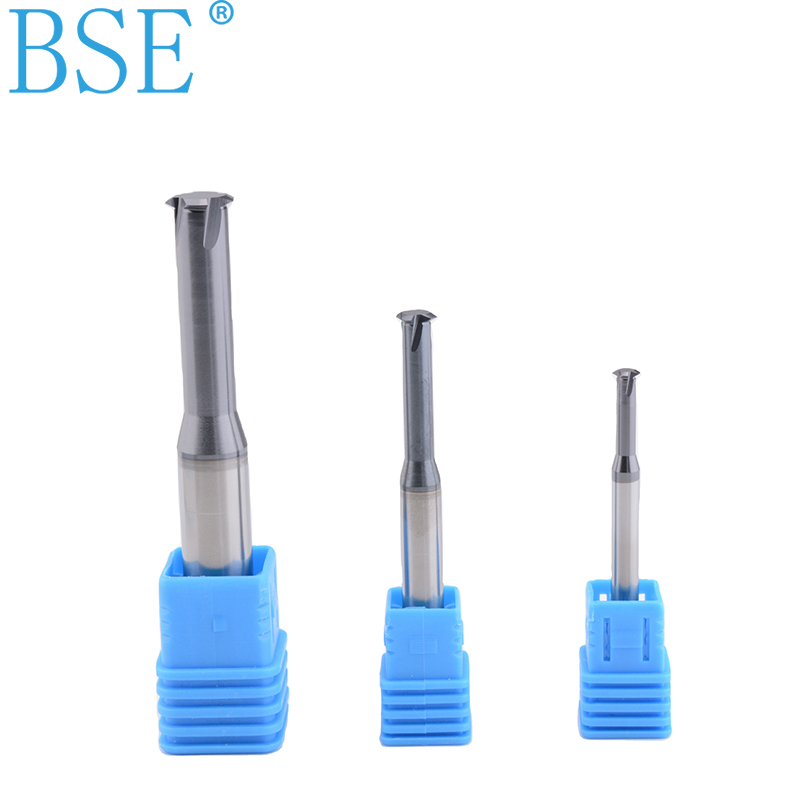

We offer thread models ranging from M1.0 to M18. Please consult the product parameters table for exact blade diameters, cutting lengths, and shank dimensions.
Please refer to our cutting condition table. The settings vary based on material hardness. For instance, cast iron runs at Vc 50-120 m/min with a feed of 0.1-0.22 mm/min. For high hardness levels (e.g. 50HRC), we recommend adjusting settings accordingly or contacting our support team.
