Explore our premium grade high-performance cutting tools designed for high rigidity, precise runout, and superior chip evacuation.
A comprehensive engineering review of advanced drilling dynamics, kinematics, and micro-geometry design standards.
Gundrilling operates on an asymmetrical cutting principle. High-pressure coolant is delivered through the drill's inner channel directly to the cutting head, clearing chips along the V-shaped external flute. The location of guide pads is micro-engineered to ensure burnishing of the bore wall, ensuring sub-micron roughness (Ra < 0.4 μm).
Critical to gundrilling is the cooling/lubrication system. Oil pressure must scale proportionally to drilling depths, frequently exceeding 100 bar for micro-drills. Our designs optimize coolant duct geometry (such as dual round or single kidney-shaped oil holes) to maximize heat removal and avoid thermal cracks.
We source ultra-fine micro-grain tungsten carbide matrices featuring optimized cobalt concentration (8%–12%). This achieves an outstanding balance between extreme hardness (up to 1600 HV) and critical fracture toughness, reducing early tool wear during continuous high-feed cycles.
Technical Insight: Gun drills differ fundamentally from conventional twist drills by using guide pads on the drill head to burnish the hole wall. This unique mechanics means the tool actually improves the bore surface finish as it progresses, eliminating the need for subsequent reaming in many high-precision applications.
How modern supply chains, high-tech manufacturing corridors, and localized application demands drive deep-hole drilling equipment evolution.

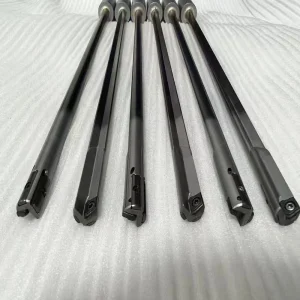

The demand for deep-hole gun drills is highly clustered across major manufacturing economies. In **Europe (primarily Germany and Italy)**, advanced automotive transmission systems and aerospace components demand customized, ultra-precise indexable insert gun drills. In **North America**, the focus shifts heavily toward medical device manufacturing (such as cannulated surgical instruments) and oilfield exploration tooling.
Meanwhile, the **Asia-Pacific region**, anchored by specialized tooling factories like Suzhou Tier Tool Co., Ltd., has emerged as the global production engine. Chinese high-tech enterprises leverage domestic supply chain networks and cost-efficient raw material refinement to deliver premium-performance solid carbide tools globally, serving both regional mass markets and niche high-tech sectors.
Procurement teams are shifting away from traditional low-cost B2B suppliers toward integrated technical partners. Reliability, verified runout metrics, and deep application support now take precedence.
Firms now utilize a blended sourcing model—combining standardized catalog gun drills for volume production with strategic, specialized manufacturing units for bespoke tool geometries (such as custom kidney-hole layouts or multi-step carbide tipped drills).
A closer look at the machinery, precision workflows, and engineering processes behind high-reliability solid carbide cutting tools.
Established in 2008, Suzhou Tier Tool Co., Ltd. is a recognized national high-tech enterprise dedicated to the design, manufacturing, and technical support of premium solid carbide cutting tools. We serve the precision machining industry with high-performance, high-efficiency cutting solutions designed for demanding hole-making and metalworking applications worldwide.
To maintain strict tolerances and quality, we operate multiple imported CNC tool grinding units alongside specialized precision inspection systems. This extensive setup enables complete in-house control from initial CAD design and prototyping to rapid trial runs and high-volume production.
From micro-implants to massive oil rig components, explore how gun drills operate across major manufacturing sectors.
| Industry Sector | Common Machined Parts | Material Challenges | Key Gun Drill Attributes Required |
|---|---|---|---|
| Automotive | Common-rail injectors, crankshafts, camshafts, engine blocks | Alloy steels, nodular cast iron | High speed processing, long wear life, indexable heads for quick tool changes. |
| Aerospace & Defense | Landing gear struts, jet engine shafts, turbine blade cooling holes | Inconel, Titanium alloys, Nimonic | Exceptional rigidity, precision straightness control, advanced AlTiN coatings. |
| Medical Technology | Cannulated bone screws, surgical drills, orthopedic implants | Medical-grade Titanium, SUS316L, Cobalt-chrome | Micro-grain carbide, micro-drill geometries down to 0.9mm, high surface polish. |
| Oil, Gas & Energy | Heat exchanger tube sheets, oilfield exploration drilling collars | Super duplex stainless steels, Monel | Heavy-duty indexable gun drills, long-distance straightness, robust brazed designs. |
| Die & Mold Making | Ejector pin holes, deep cooling lines in plastic injection molds | Pre-hardened tool steels (H13, P20) | Highly flexible lengths, custom flute configurations, step-diameter capabilities. |
Analyzing key R&D trends shaping the next generation of precision deep-hole drilling technology.
Future CNC gundrilling operations will integrate smart tool holders equipped with acoustic emission and vibration sensors. This allows systems to predict chip clogging or tool wear ahead of time, avoiding costly workpieces damage.
Environmental pressures are forcing a shift from flood oil coolant to mist-based MQL systems. Advanced single-flute and kidney-hole geometries are actively engineered to work under aerosol flows, reducing carbon footprints while maintaining clean chip extraction.
Diamond-like carbon (DLC), Titanium Aluminum Nitride (TiAlN), and Chromium Nitride (CrN) coatings are micro-deposited via physical and chemical vapor deposition. This increases tool life by up to 300% when cutting hard titanium or abrasive cast irons.
B2B technical buyers must verify the following structural, material, and system capability metrics before selecting a manufacturing partner.
A premier factory should provide detailed metrology profiles for every batch. Ensure your supplier uses non-contact optical measuring tools and laser scanners to check flank wear, guide pad wear, outer diameter runout, and the concentricity of internal coolant ducts.
Work only with factories providing ISO 9001:2015 certifications and detailed material certs. Every carbide batch must be traceable to raw powder materials, ensuring consistent performance and preventing unexpected head breakage during high-speed runs.
Gun drills are capital investments designed for multiple life cycles. High-quality suppliers provide detailed re-grinding templates, fixture options, and professional re-conditioning services. They help restore the original tip geometry to optimize tool lifetime.
Do not source from suppliers that only sell products. Partners like Suzhou Tier Tool work directly with mechanical engineers, providing feed and speed tables, torque recommendations, fluid pressure calculations, and testing services.
Common questions answered by our engineering and tooling experts to help you troubleshoot performance issues.
Explore our complete range of specialized deep-hole drilling systems, rods, and custom tool profiles.
