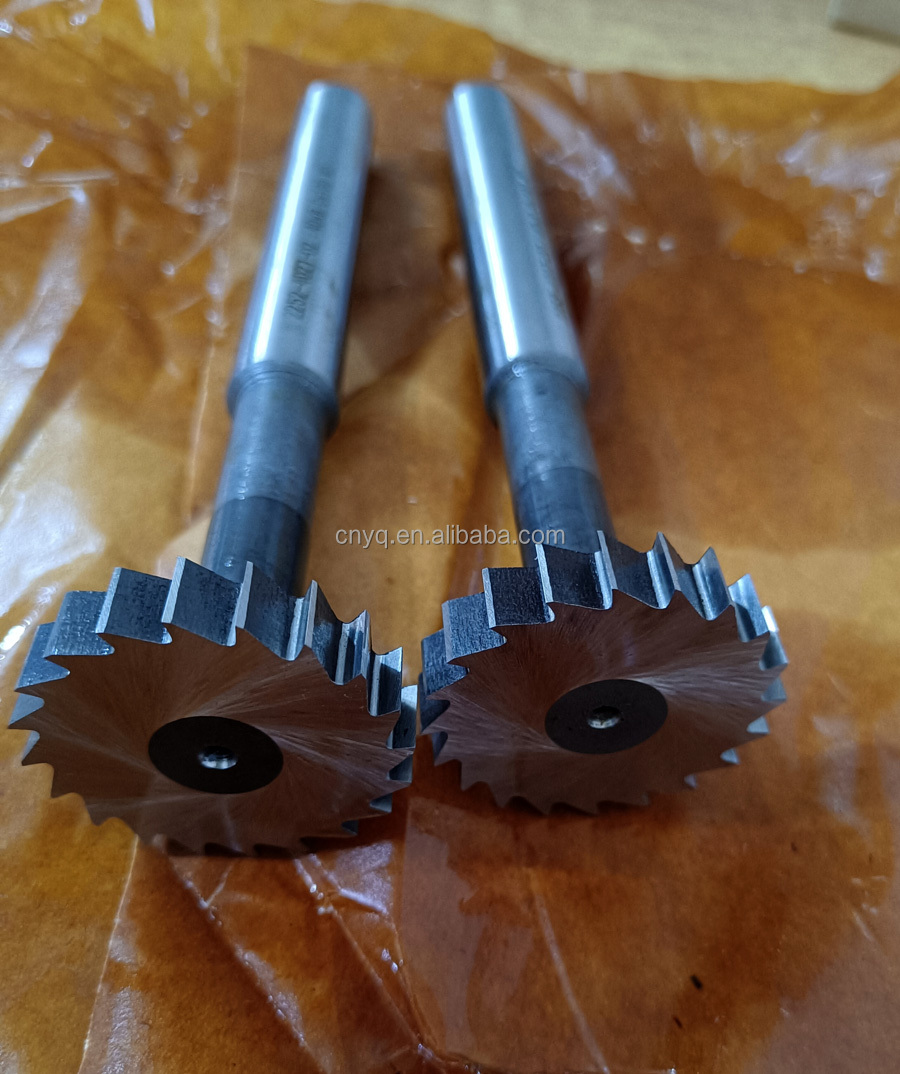

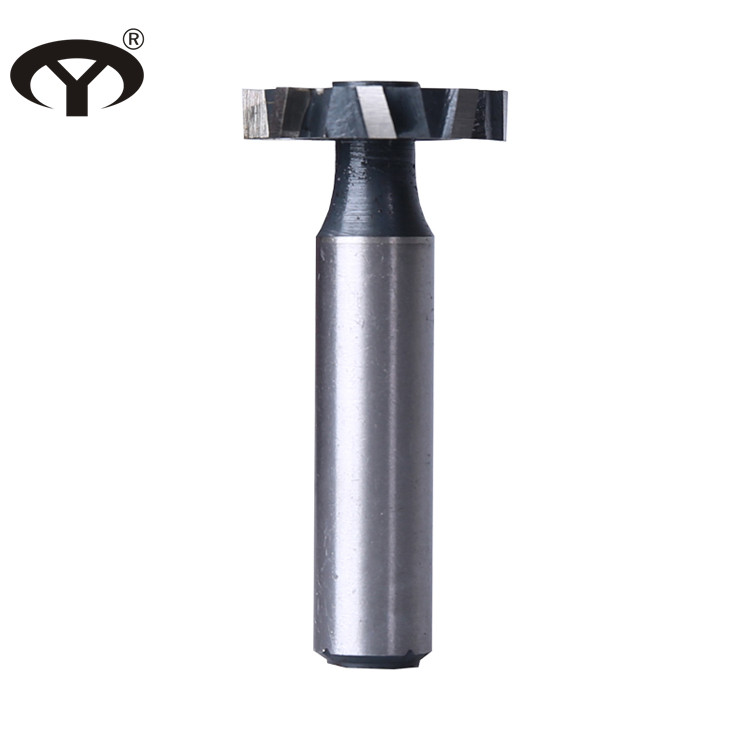

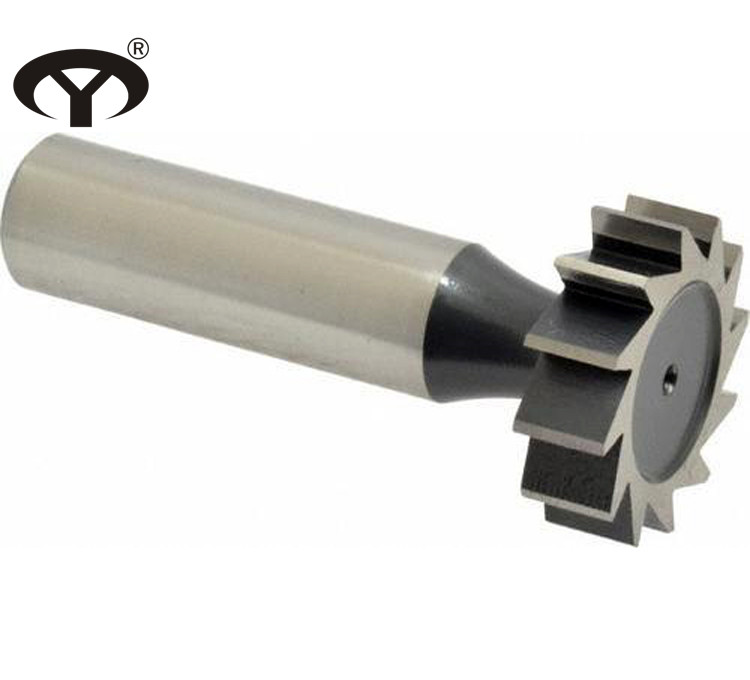

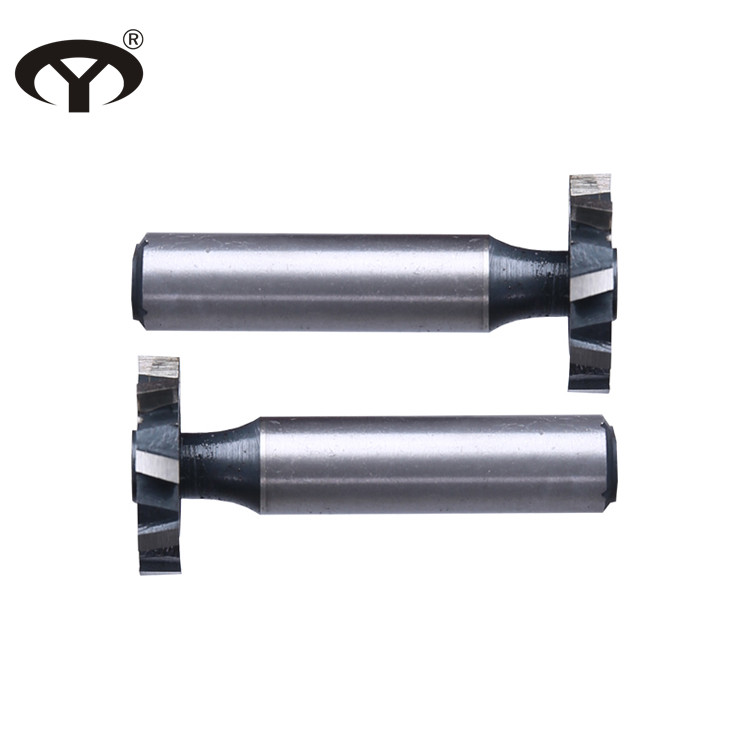

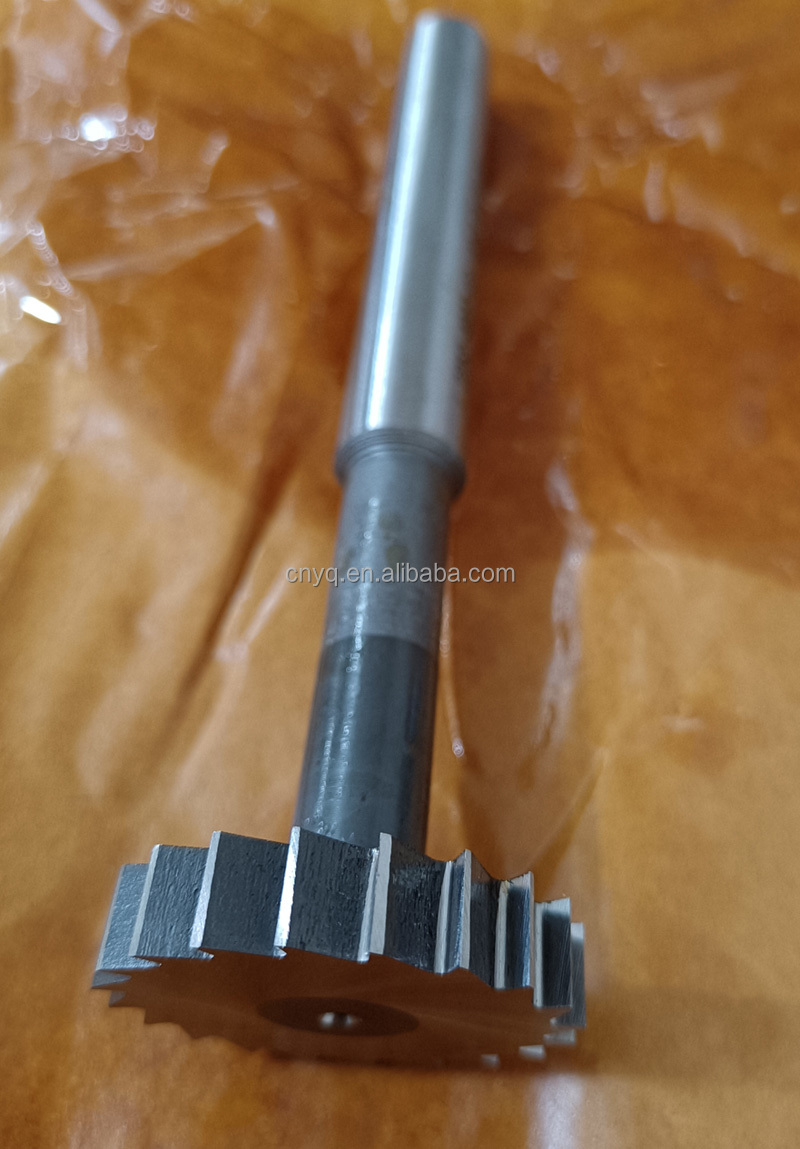

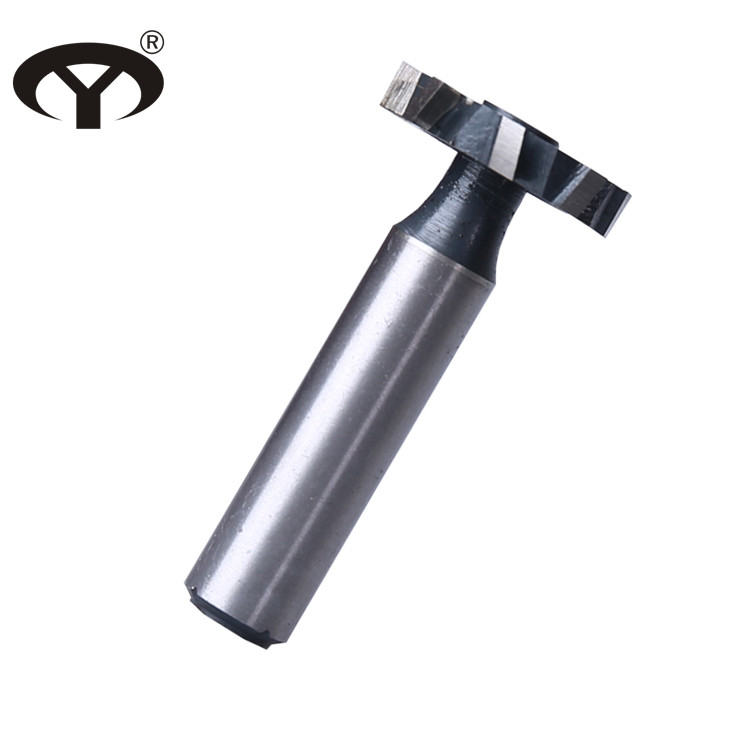

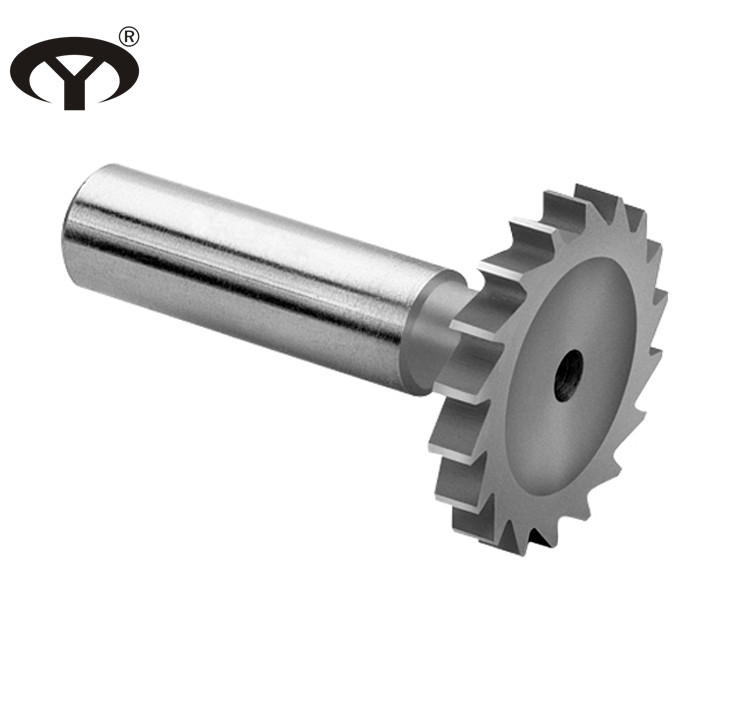

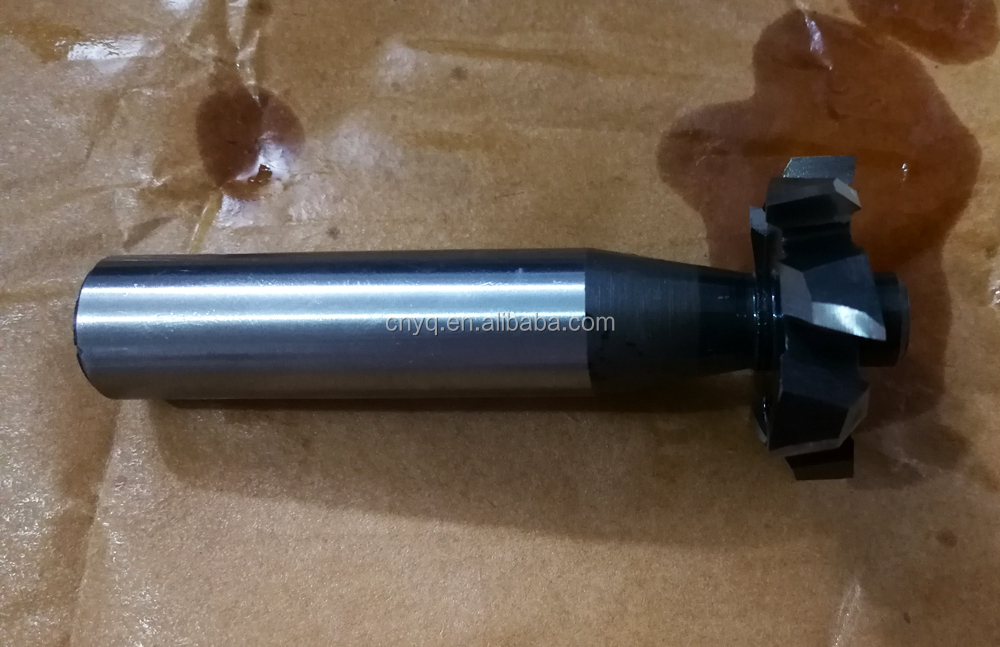

HSS M2 Milling Cutter for Woodruff Keyseat With Straight Teeth

HSS M2 Milling Cutter for Woodruff Keyseat with Straight Teeth

Type 1 (Straight Teeth) Specification

Key Size	Outside Dia.	Width of Tooth	Length	Neck Dia.	Suitable neck shaft
22×6	13.8	3	60	10	>77-18
2	13.8	4	60	10	>10-24
25×8	16.9	3	60	10	>77-18
28×6	16.9	4	60	10	>10-24
28×8	16.9	5	60	10	>14-30
32×6	20.1	4	60	10	>10-24
32×8	20.1	5	60	10	>14-30
32×10	23.2	4	60	12	>10-24
38×6	23.2	5	60	12	>14-30
38×8	26.5	5	60	12	>14-30
38×10	26.7	5	60	12	>14-30

Type 2 (Staggered Teeth) Specification

Key Size	Outside Dia.	Width of Tooth	Length	Neck Dia.	Suitable neck shaft
22×6	23.2	6	60	12	>18-36
25×6	26.5	6	60	12	>18-36
25×8	26.5	8	65	12	>24-42
28×6	29.7	6	60	12	>18-36
28×8	29.7	8	65	12	>24-42
32×6	33.9	6	60	12	>18-38
32×8	33.9	8	65	12	>18-36
32×10	33.9	10	60	12	>30-48
38×6	40.3	6	65	14	>18-36
38×8	40.3	8	60	14	>24-42
38×10	40.3	10	70	14	>30-48
45×8	47.7	8	65	15	>24-42
45×10	47.7	10	70	15	>38-48

Product Showcase

HSS M2 Milling Cutter for Woodruff Keyseat With Straight Teeth

Milling Cutter Series

Available Series: Shank end mill, keyway milling cutter, shell end mill, angle milling cutter, cylindrical milling cutter, side and face milling cutter, concave convex milling cutter, rack milling cutter, roller chain sprocket milling cutter, T-slot milling cutter, woodruff keyseat milling cutter and dovetail milling cutter.

Production Process of HSS M2/M35 Milling Cutter

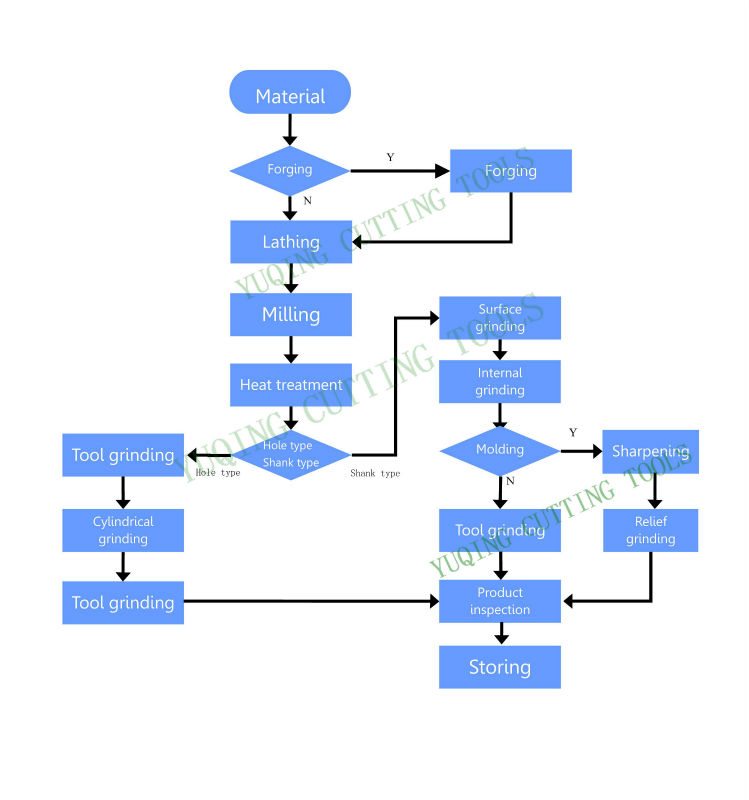

The production process of HSS M2/M35 milling cutter for woodruff keyseat with straight teeth:

Material Introduction

A. W6Mo5Cr4V2 (GB) / M2 (ASTM) / S6-5-2 (DIN) / SKH51 (JIS)

Chemical Composition: C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.00, Mo 4.80, V 1.85

Main Application: It is widely used for making all kinds of cutters and durability cold-work die.

B. W6Mo5Cr4V2Co5 (GB) / M35 (ASTM) / 1.3243 (DIN) / SKH55 (JIS)

Chemical Composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80, V 1.85, Co 5.00

Main Application: It is often used for making blades with high-speed and great cutting difficulty as it has good abrasive resistance.

Available Grade Materials:

W6Mo5Cr4V2(M2), W9Mo3Cr4V(W9), W18Cr4V(W18), W6Mo5Cr4V2Al(M2Al), W6Mo5Cr4V2Co5(M35), W2Mo9Cr4VCo8(M42), W4Mo3Cr4VSi(4341), W4Mo2Cr4VSi(4241)

Frequently Asked Questions (FAQ)

Q1: What is the main difference between Type 1 and Type 2 Woodruff Keyseat Milling Cutters?

Type 1 features Straight Teeth, which are ideal for general slotting operations. Type 2 features Staggered Teeth, which offer better chip clearance and reduce vibration during deeper or more demanding cutting operations.

Q2: When should I choose HSS M35 over HSS M2 material?

HSS M35 contains 5% Cobalt (Co), which significantly enhances thermal stability and abrasive resistance. It is the preferred choice for difficult-to-cut materials and high-speed cutting applications.

Q3: What standard grades correspond to W6Mo5Cr4V2 (GB)?

W6Mo5Cr4V2 conforms to standard grades including ASTM M2, DIN S6-5-2, and JIS SKH51. It is the standard industrial high-speed steel grade for high durability.

Q4: Are there other sizes of Woodruff keyseat cutters available?

Yes, standard key sizes range from smaller dimensions up to 45×10, with different cutter dimensions (outside diameter, neck diameter, width of tooth) and suitable neck shafts to match standard shaft processing requirements.

Q5: What other industrial milling cutters are in this product series?

The series includes a wide range of specialized cutters: shank end mills, keyway milling cutters, shell end mills, angle milling cutters, cylindrical milling cutters, side and face milling cutters, concave/convex milling cutters, T-slot milling cutters, and dovetail milling cutters.
