MFWN 90125-40-8T Face Mill CNC Lathe Indexable Milling Cutter for Carbide Insert

Product Description

Product Description

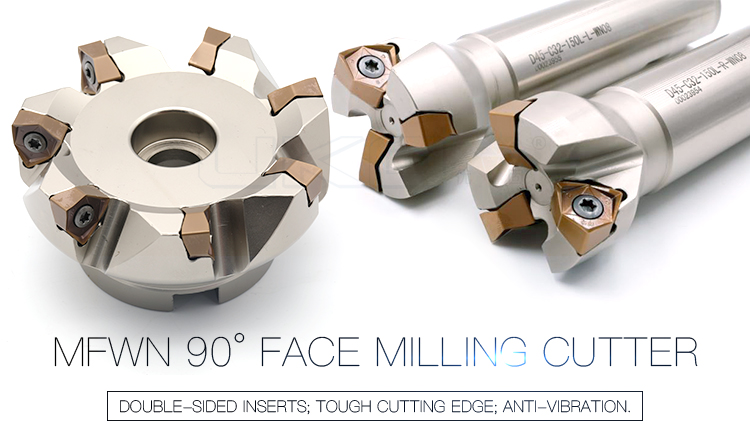

MFWN 90-degree CNC milling cutters with high efficiency

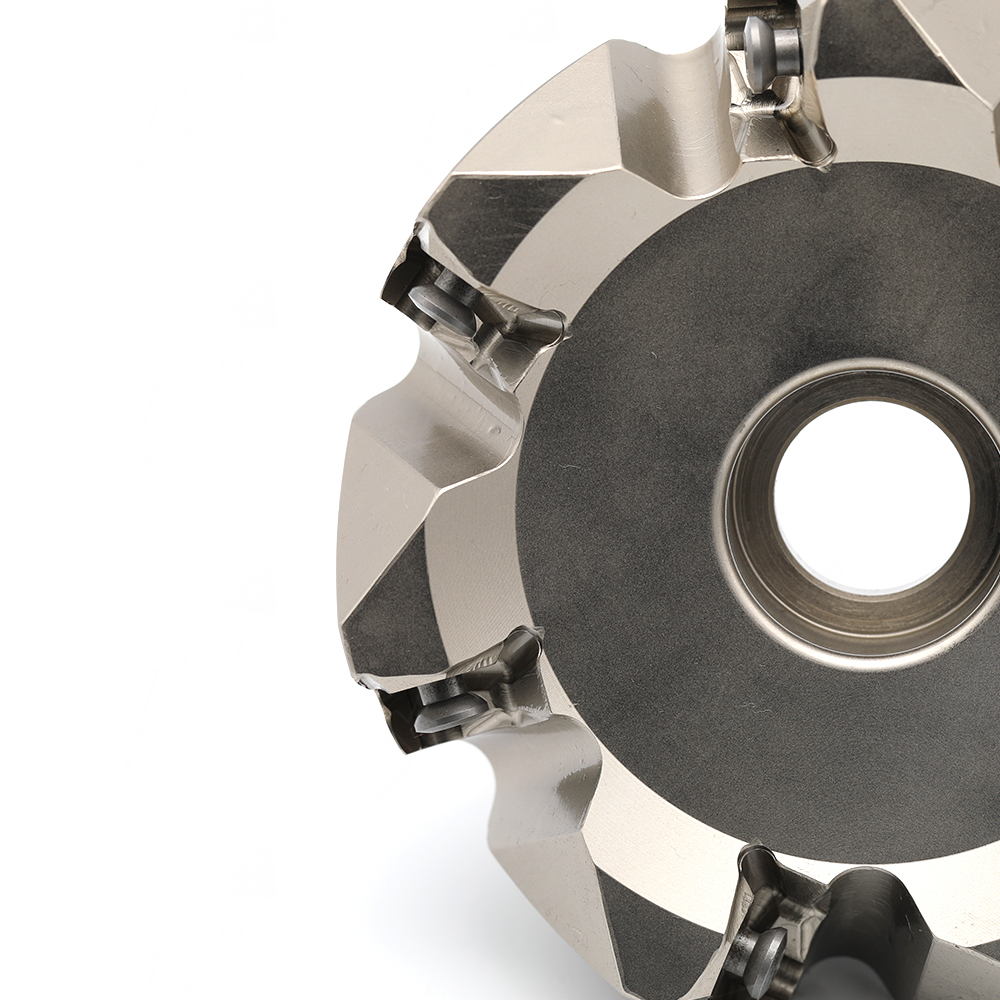

MFWN 90125-40-8T Face Mill CNC Lathe Indexable Milling Cutter for Carbide Insert

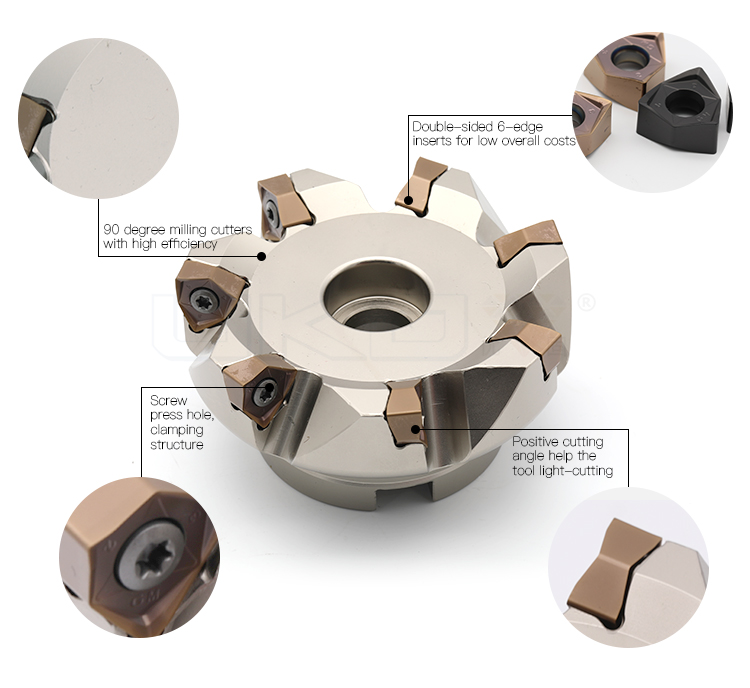

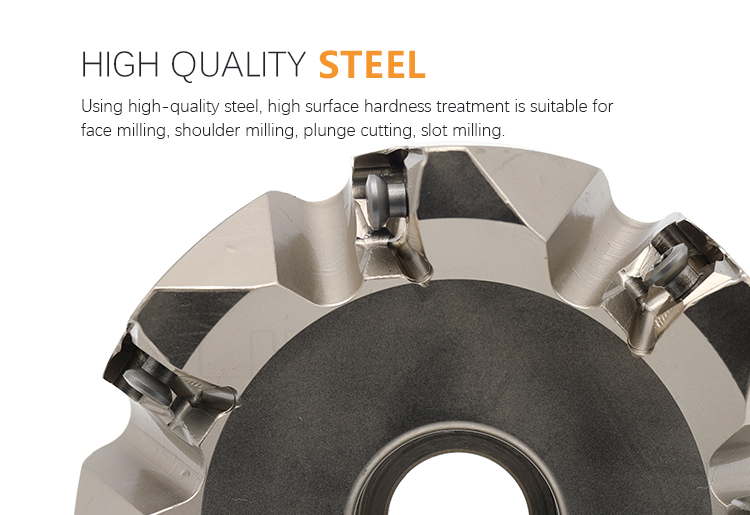

The MFWN milling cutter with 90-degree face mill style milling body that matches WNMU080608 fast feed milling inserts. Diameters range from 50-200mm and these are suitable for face milling, shoulder milling, plunge cutting, and slot milling. With 42CRMO steel material and multi-cutting edges, the MFWN face mill achieves high efficiency, anti-vibration, and longer service life.
Advantages
  • Use high-quality alloy steel material
  • 42CRMO material with stable performance and higher efficiency
  • Good anti-shock effect
  • Reduce blade wear and improve tool efficiency
MFWN 90125-40-8T Face Mill CNC Lathe Indexable Milling Cutter for Carbide Insert
MFWN 90125-40-8T Face Mill CNC Lathe Indexable Milling Cutter for Carbide Insert
Complete Models
Type Outer diameter Bore diameter Flute number Insert
MFWN 90050-22-4T 50 22 4 WNMU080608
MFWN 90063-22-4T 63 22 4
MFWN 90080-27-6T 80 27 6
MFWN 90100-32-7T 100 32 7
MFWN 90125-40-8T 125 40 8
MFWN 90160-40-10T 160 40 10
WFWN 90200R-12T-M 200 60 12
WFWN 90200R-16T-M 200 80 16

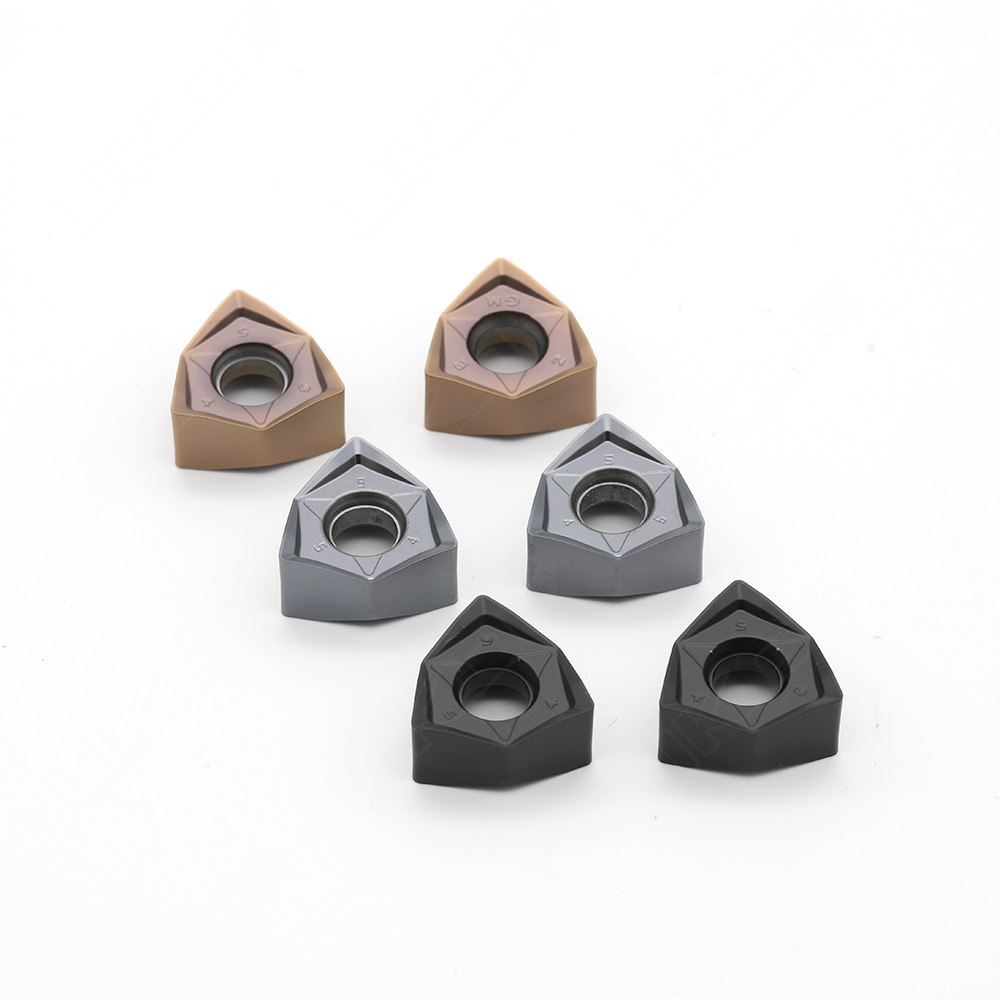

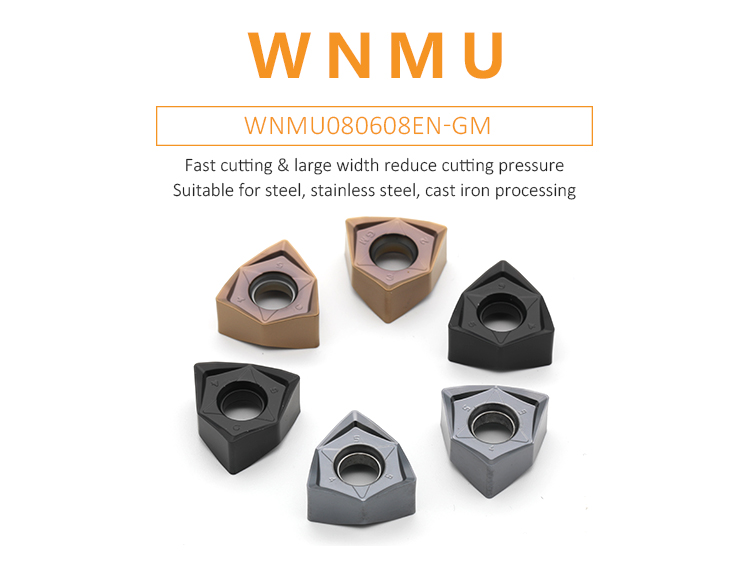

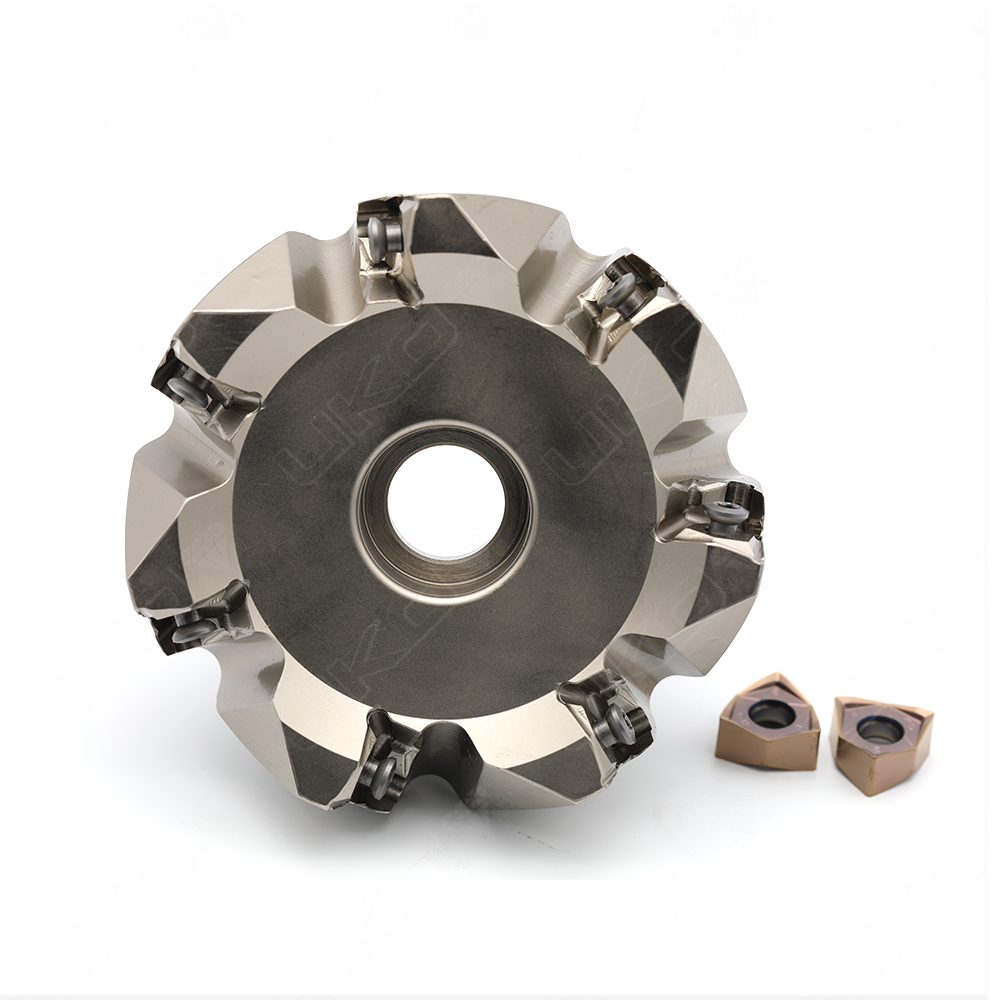

Milling Insert
MFWN 90125-40-8T Face Mill CNC Lathe Indexable Milling Cutter for Carbide Insert

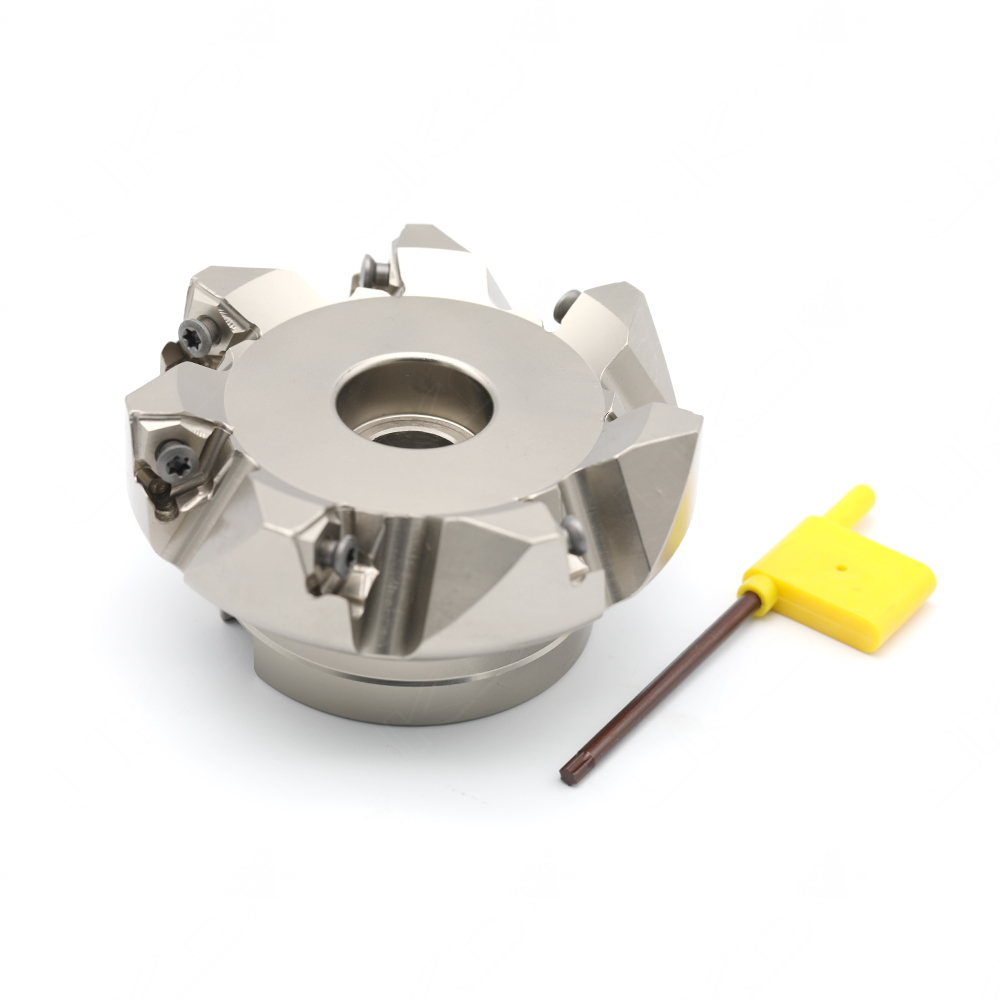

More Pictures
MFWN 90125-40-8T Face Mill CNC Lathe Indexable Milling Cutter for Carbide Insert

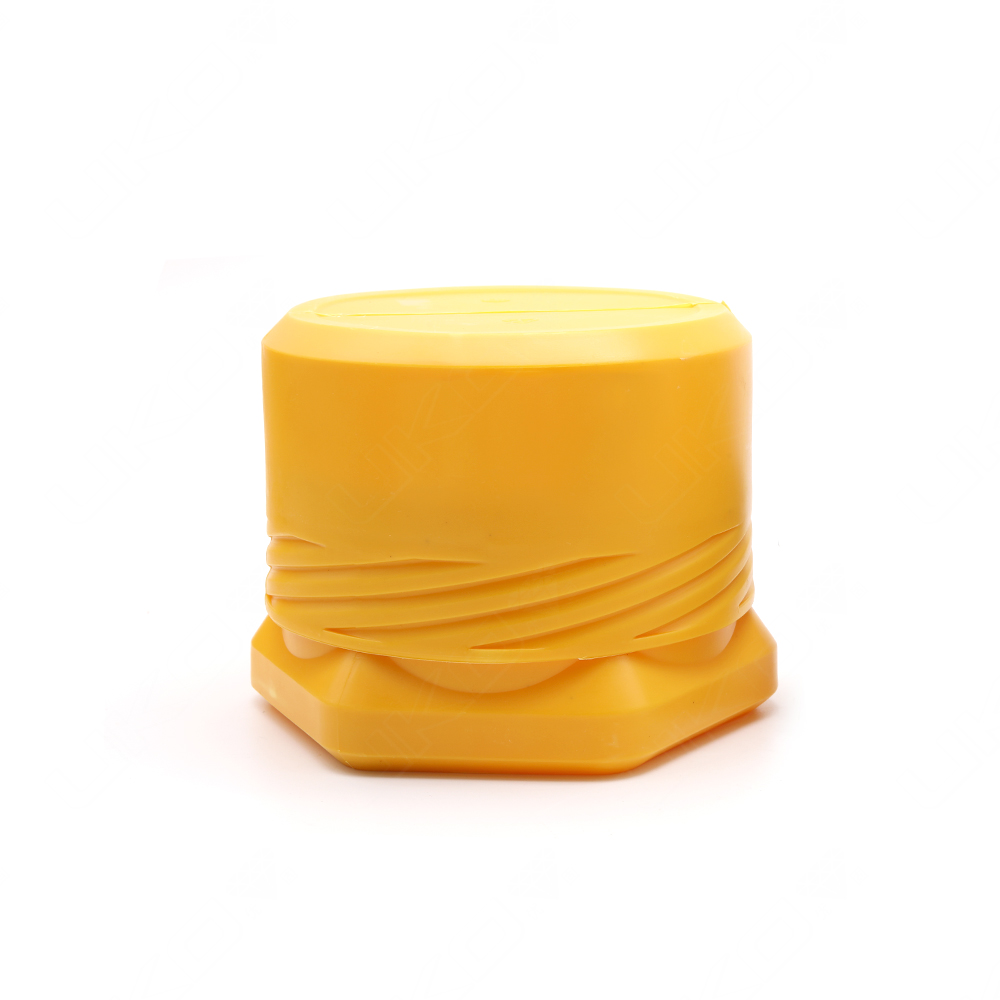

Packing & Delivery
MFWN 90125-40-8T Face Mill CNC Lathe Indexable Milling Cutter for Carbide Insert
MFWN 90125-40-8T Face Mill CNC Lathe Indexable Milling Cutter for Carbide Insert
Production Environment
Production Facility Room
Manufacturing Warehouse
Frequently Asked Questions
What materials are the MFWN face milling cutters suitable for?
The MFWN face milling cutter is ideal for milling steel, stainless steel, cast iron, and other alloy materials, depending on the matched carbide inserts.
Which inserts are compatible with this indexable milling cutter?
This cutter body is specifically designed to match WNMU080608 double-sided fast feed carbide milling inserts.
What is the advantage of using 42CRMO material for the cutter body?
42CRMO alloy steel offers excellent tensile strength and high fatigue limits. This provides the milling cutter with superior anti-vibration qualities and high efficiency under heavy loads.
What types of machining operations can be performed with the MFWN milling cutter?
It is designed for high-efficiency 90-degree shoulder milling, face milling, slot milling, and plunge cutting.
What is the size range of the outer diameters available?
The outer diameters for the MFWN indexable face milling cutters range from 50mm up to 200mm, with varying flute configurations.
