6mm Single Fluted Carbide Brazed Deep Hole Gun Drills

Customization:	Available
Customized:	Customized
Standard:	GB

📊 Basic Information

Type:

Gun Drill Bit

Material:

Tungsten Carbide

Usage:

Metal Drilling, Deep Hole Drilling

Origin:

China

Coating:

Tin Coating; Aitin Coating

Model:

Customized

Capacity:

10,000,000 pieces/Year

Transport:

In Cartons

🛠️ Product Description

6mm Single Fluted Carbide Brazed Deep Hole Gun Drills

Tungsten carbide gun drill is a highly efficient and precise drilling tool that is perfect for industrial applications. Made of premium-grade carbide material, the carbide gun drill is specially designed to offer unbeatable performance, durability, and reliability in various drilling operations.

Gun drills are considered for use when the hole depth with a diameter range of 2.0~50mm exceeds ten times the diameter. They provide high hole precision, accurate hole position, excellent surface finishes, good straightness, and concentricity. It is an ideal solution for special deep holes, such as cross-holes, blind holes, and flat-bottomed blind holes.

📷 Detailed Photos

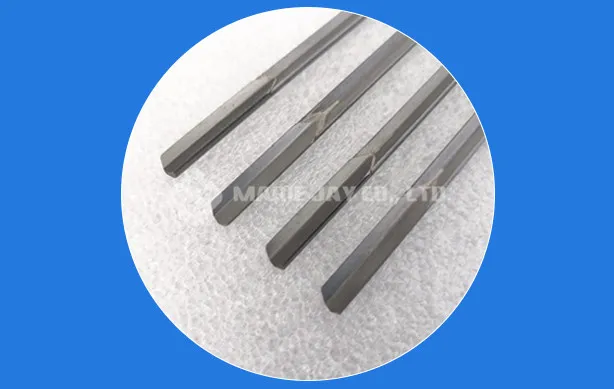

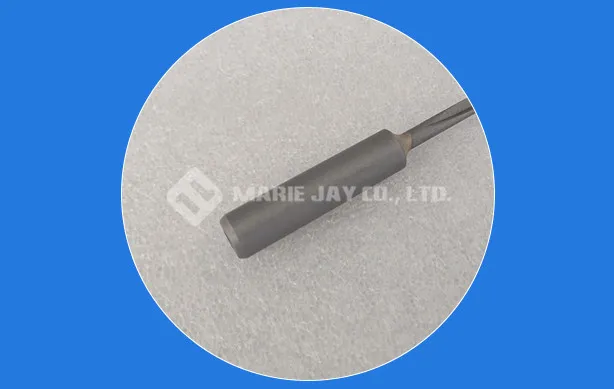

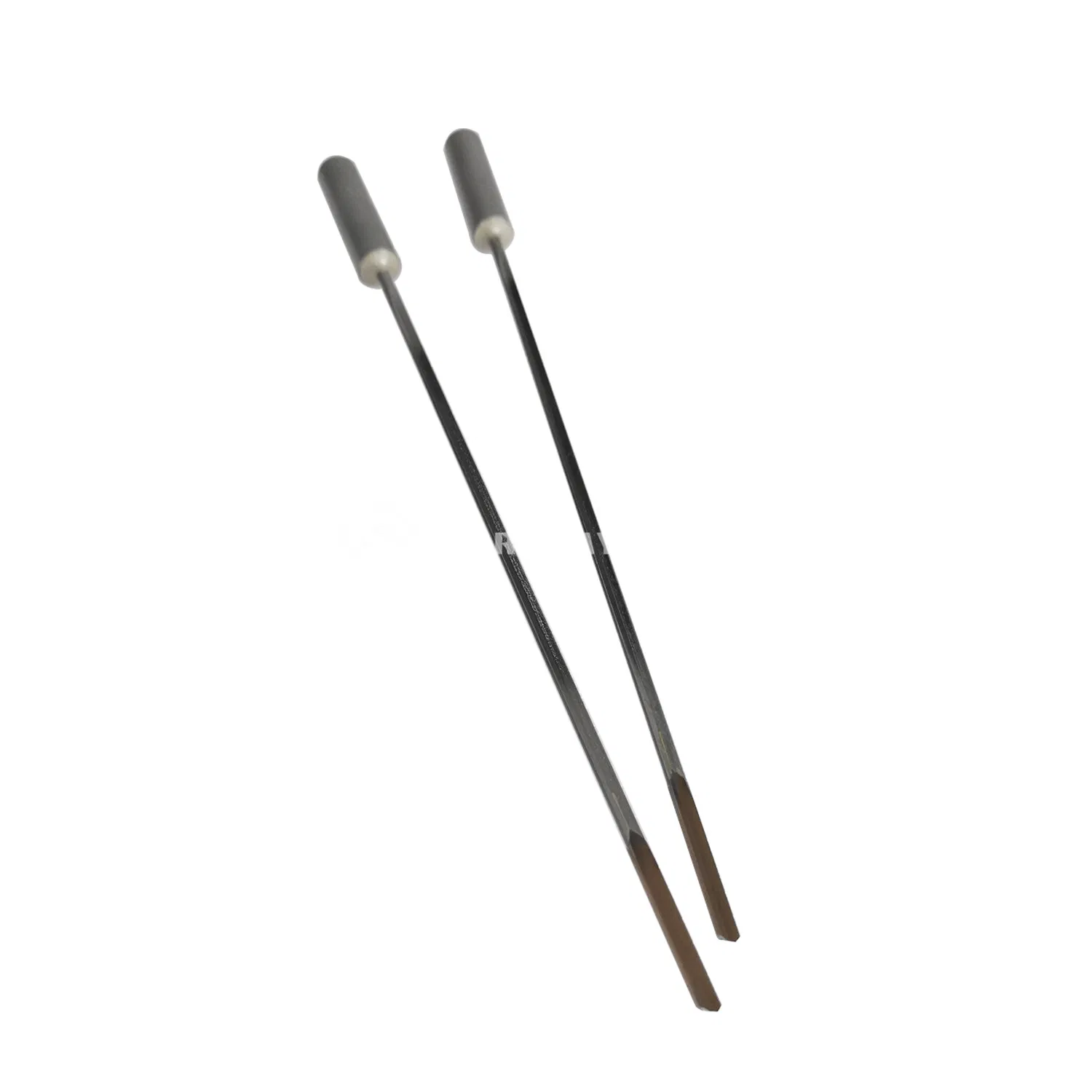

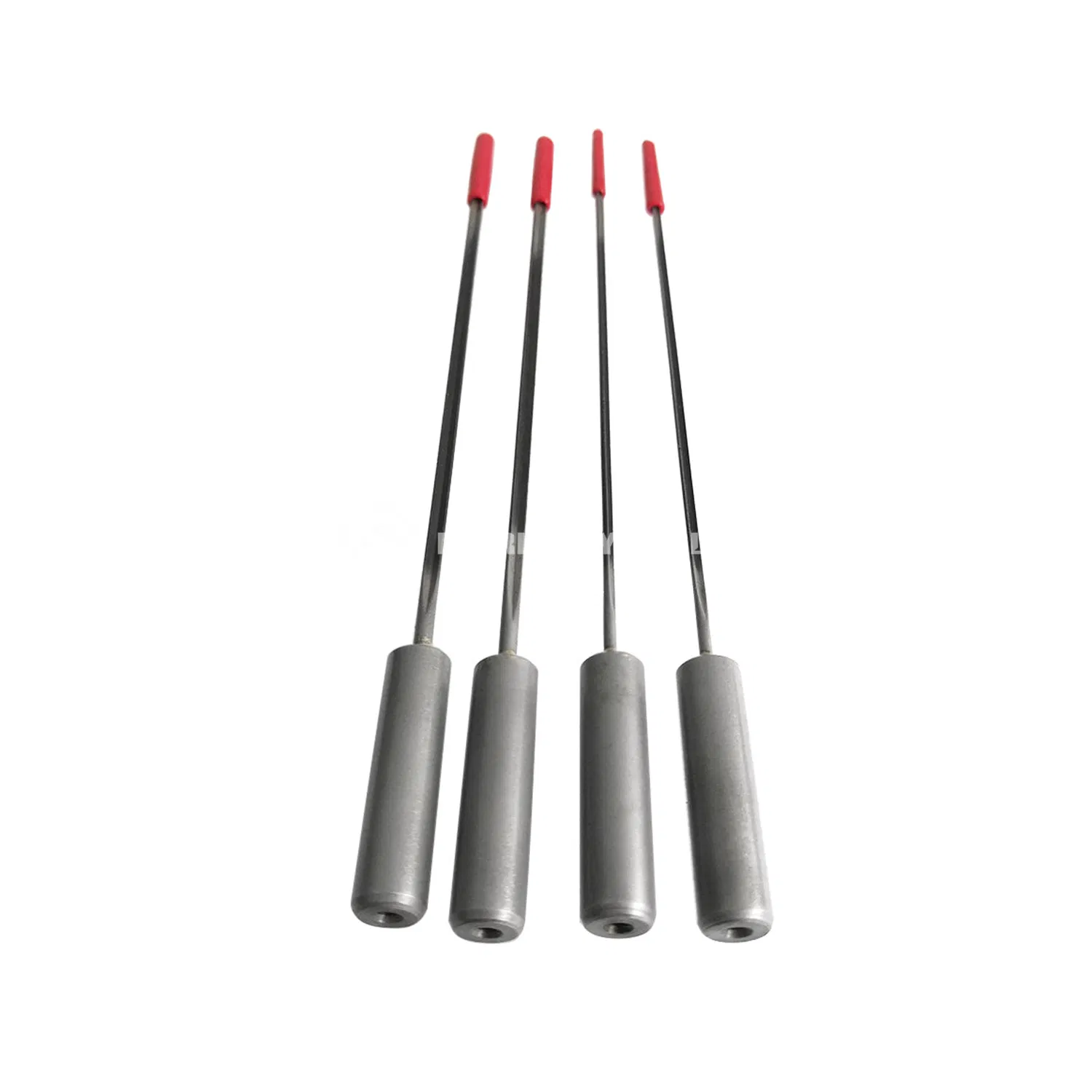

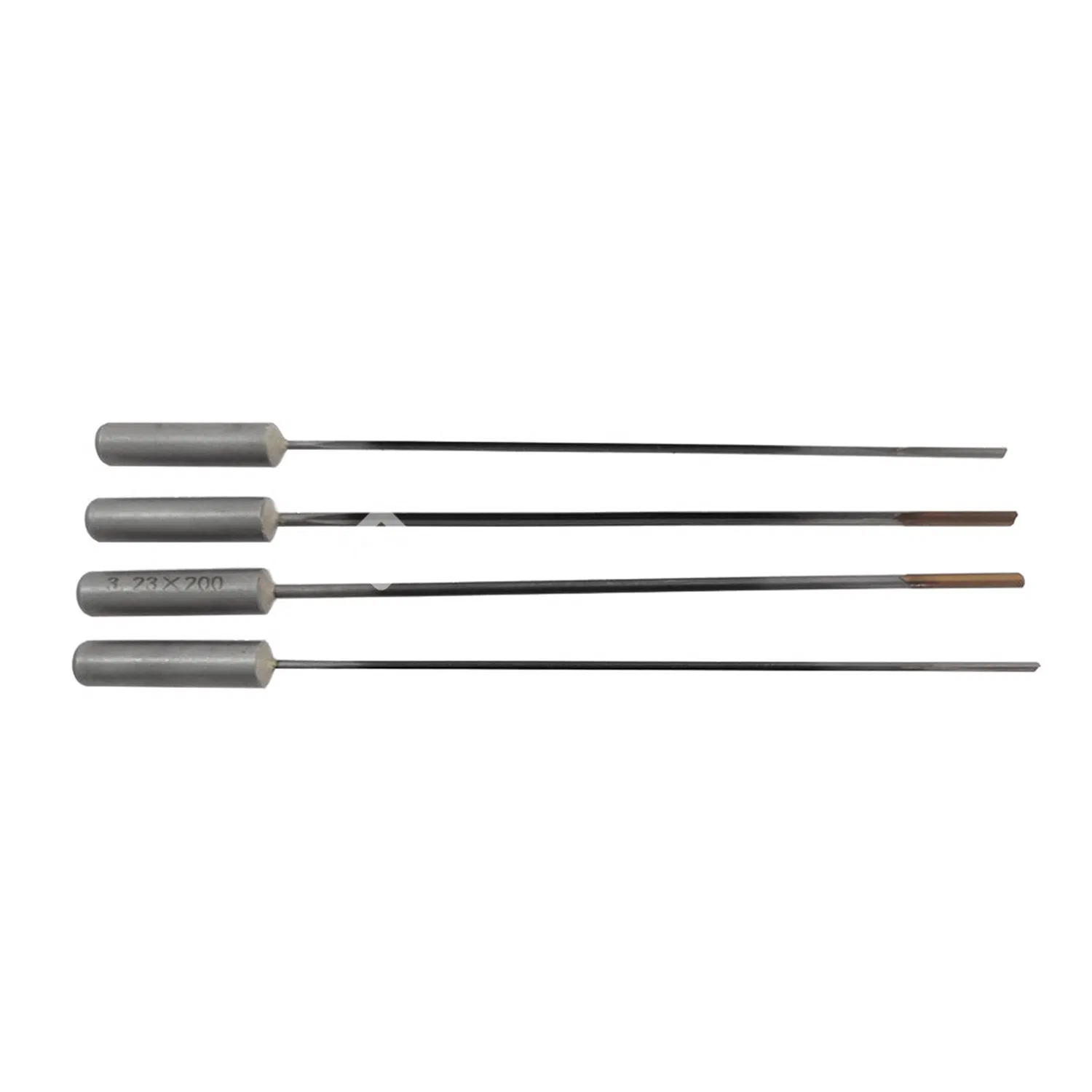

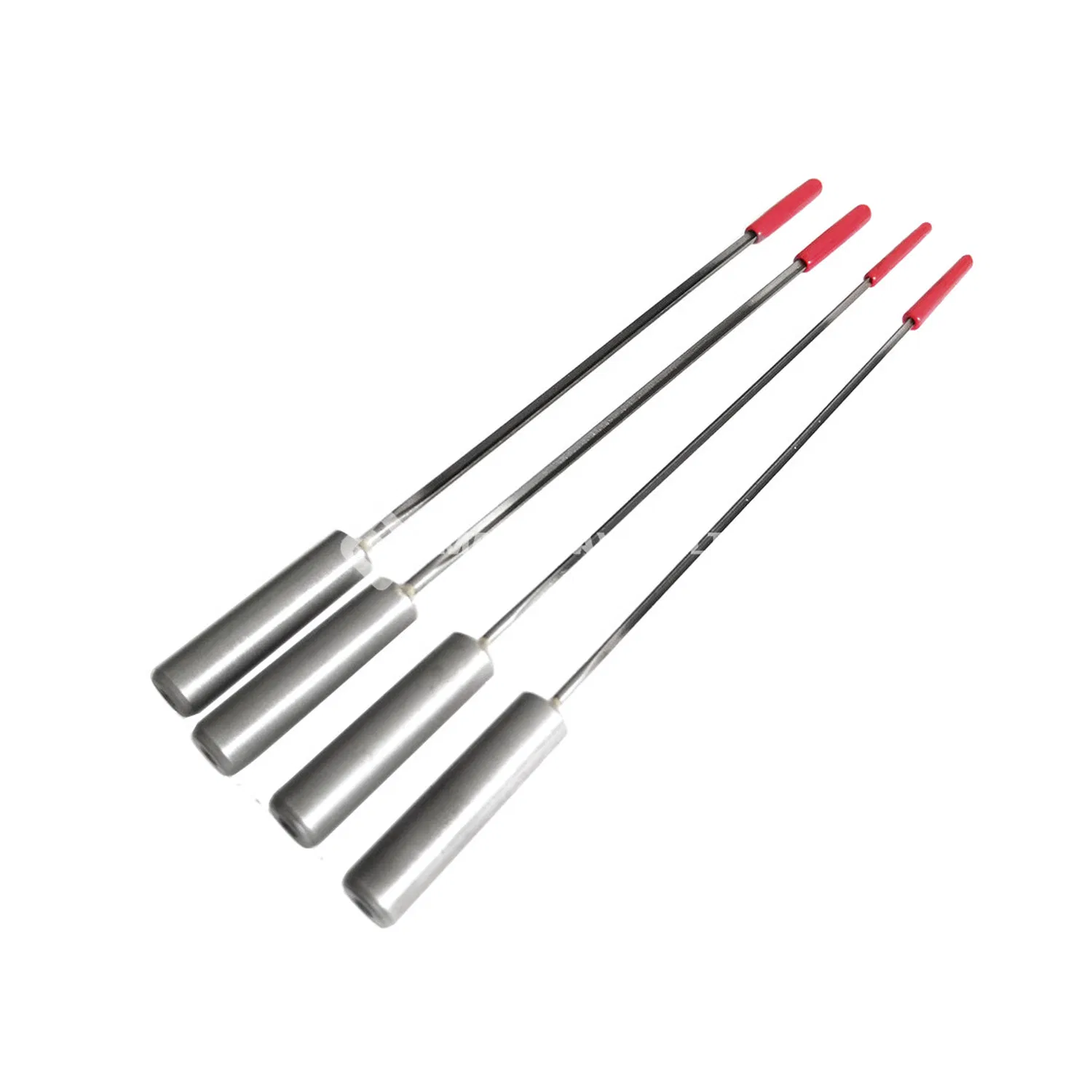

6mm Single Fluted Carbide Brazed Deep Hole Gun Drills

📏 Product Parameters

Drivers Specification for reference:

Type	L1	L2	X	M	Drill Dia.
Φ10*40	40	46	24.3	-	1.900-7.099
Φ16*45	45	53	31	-	1.900-12.099
Φ16*50	50	58	47.5	-	1.900-12.099
Φ25*70	70	78	34	-	1.900-19.799
Φ12.7*38.1	38.1	58	25.4	-	8.300-12.499
Φ19.05*69.8	69.8	100	44.4	-	14.95-18.799
Φ10*68	68	81	35	M6*0.5	6.8-9.999
Φ25*112	112	142	45	M16*1.5	19.8-24.799

📦 Packaging & Shipping

Delivery Methods:

Shipment: By Express / By Air / By Sea
Customized arrangement according to requests.

🌟 Our Services

Requests replied within 24 hours.
Effective and efficient communications.
First-class quality control and after-sale services.

Supplying Range:

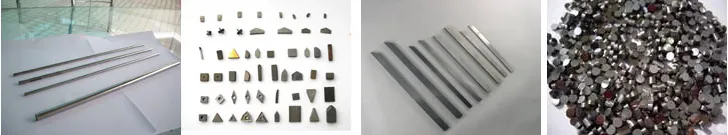

1. Tungsten carbide products:

Carbide Rods, Bars, Strips, Plates, Drawing Dies, Cold Forging Dies, Carbide Inserts, Burrs, Mining Bits, and customized solutions.

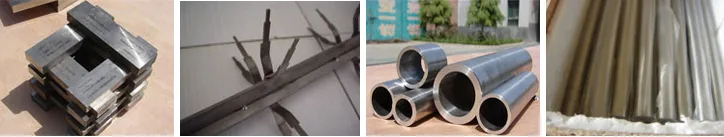

2. Titanium alloy products:

Titanium Rods, Tubes, Sheets, Foils, Wires, and customized titanium components.

Quality Control & Equipment:

All products are inspected and tested after production. Dimension inspection certificates are available upon request.

🏢 Production Facility

❓ Frequently Asked Questions

1. What is the primary advantage of using a gun drill?

Gun drills provide exceptional hole precision, accurate positioning, and superior surface finishes, especially for deep holes where the depth exceeds ten times the diameter.

2. What materials can be processed with these gun drills?

Our tungsten carbide gun drills are designed for various metal drilling applications, including specialized industrial alloys and deep hole operations.

3. Are customized sizes and specifications available?

Yes, we provide fully customized gun drills based on your specific requirements for length, diameter, and driver specifications.

4. What coatings do you offer for the drill bits?

We offer high-performance coatings including Tin Coating and Aitin Coating to enhance durability and heat resistance during the drilling process.

5. How is the quality of the drills ensured?

We perform 100% inspection and testing after production. We can also provide dimensional verification and inspection certificates according to customer needs.

6. What is the typical lead time for production?

With a production capacity of 10 million pieces per year, we ensure efficient turnaround times. Specific timelines depend on the customization complexity and order volume.
