Inserted Gun Drill for Deep Hole Gundrilling Machine

Customization:	Available
Customized:	Customized
Standard:	DIN

Overview / Basic Info

Model NO.

16mm

Length

Customized

Type

Gun Drill Bit

Material

Solid Carbide

Usage

Metal Drilling

Coating

Yes

Insert

Iscar or China Made

Length Spec

According Drawing

Brazed

Yes

Reliability

Very Good

Transport Package

Wood Box or Plastic Film

Specification

16

Production Capacity

3000

Product Description

Inserted Gun Drill: A Precision Tool for Advanced Machining

In the realm of modern machining and industrial processes, the inserted gun drill stands as a crucial and highly specialized tool. This innovative drilling solution offers exceptional precision and efficiency, playing a vital role in a wide range of applications.

The inserted gun drill is designed to create deep and accurate holes with remarkable consistency. Its unique construction combines a rigid body with replaceable inserts, allowing for enhanced durability and adaptability. The inserts are crafted from high-quality materials, ensuring optimal cutting performance and long service life.

Material Versatility: Handles a variety of materials including hardened steels, alloys, and difficult-to-machine substances. Excellent for aerospace, automotive, and precision engineering.

Superior Hole Quality: Achieves minimal deviation and excellent surface finishes using advanced cutting geometries and precise drill control parameters.

Stability & Safety: Outstanding tool rigidity reduces vibration and chatter. Integrated design safety features protect operators and ensure secure working environments.

As technology continues to advance, the inserted gun drill remains at the forefront of machining innovation. Its combination of precision, durability, and versatility makes it an indispensable tool for meeting the demanding requirements of today's industrial landscape. Whether for large-scale production or intricate custom work, the inserted gun drill is a reliable choice for achieving high-quality drilling results.

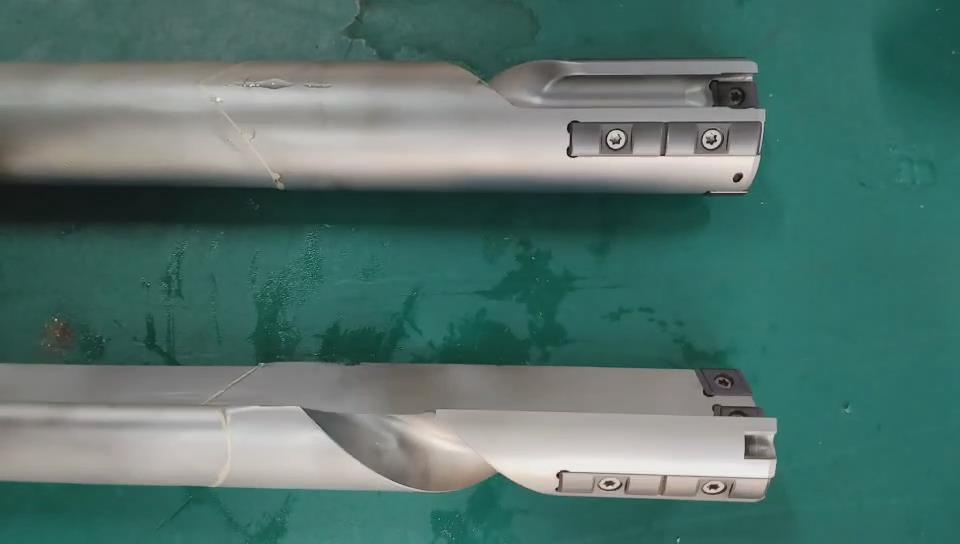

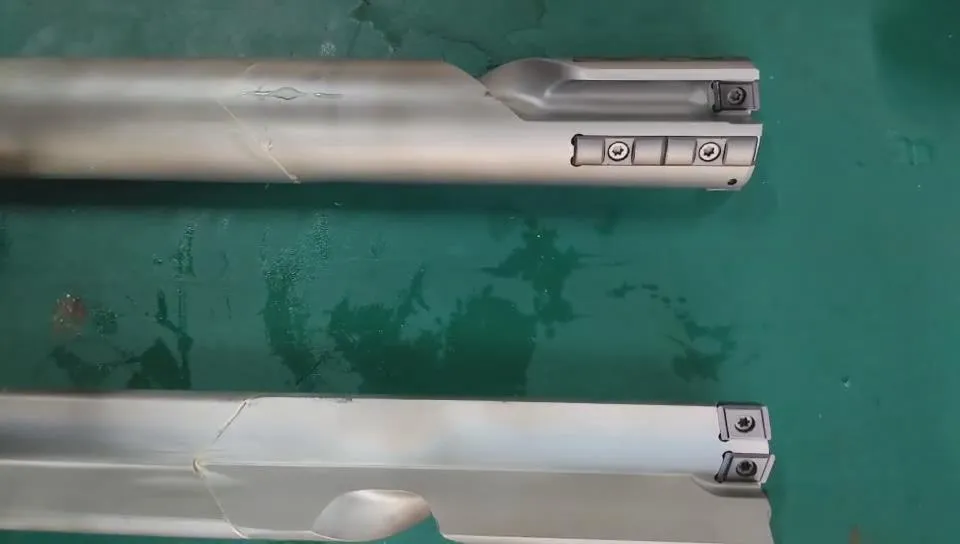

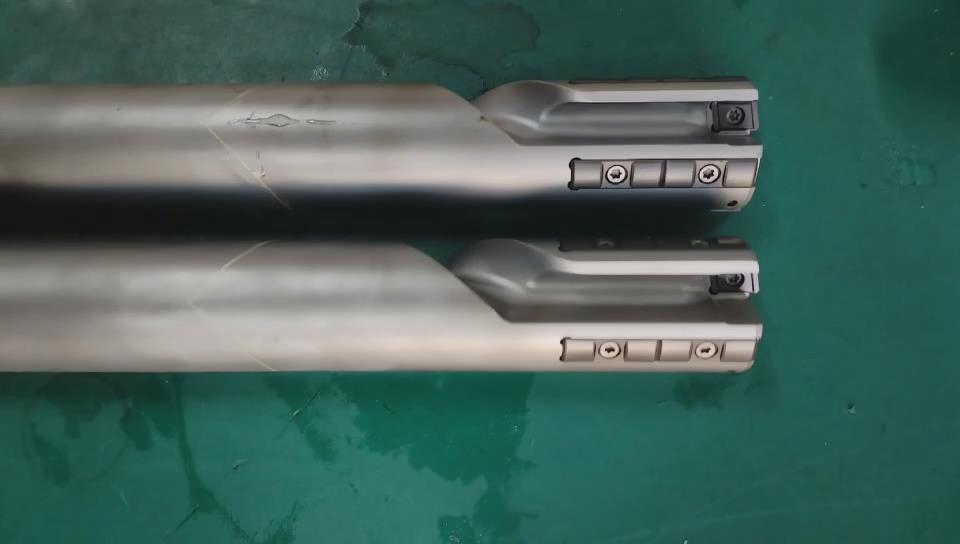

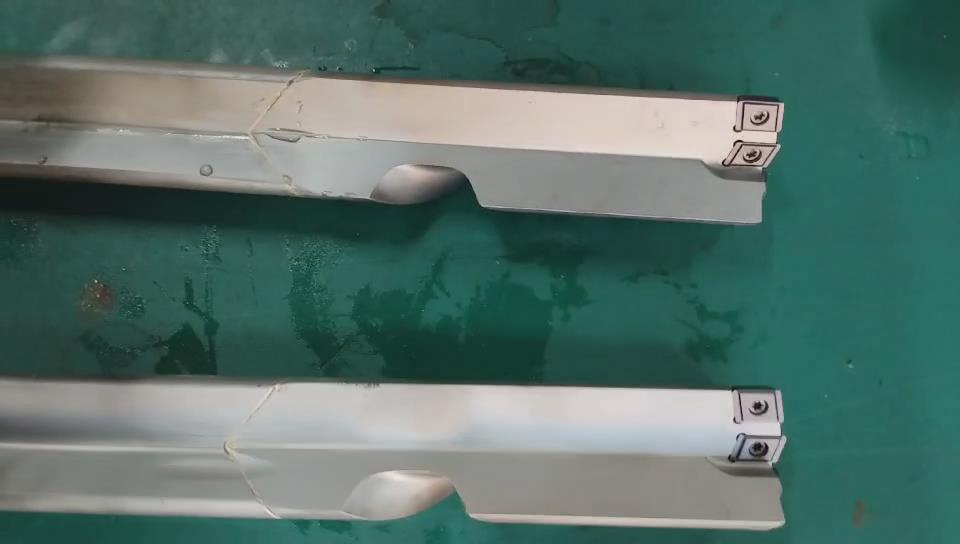

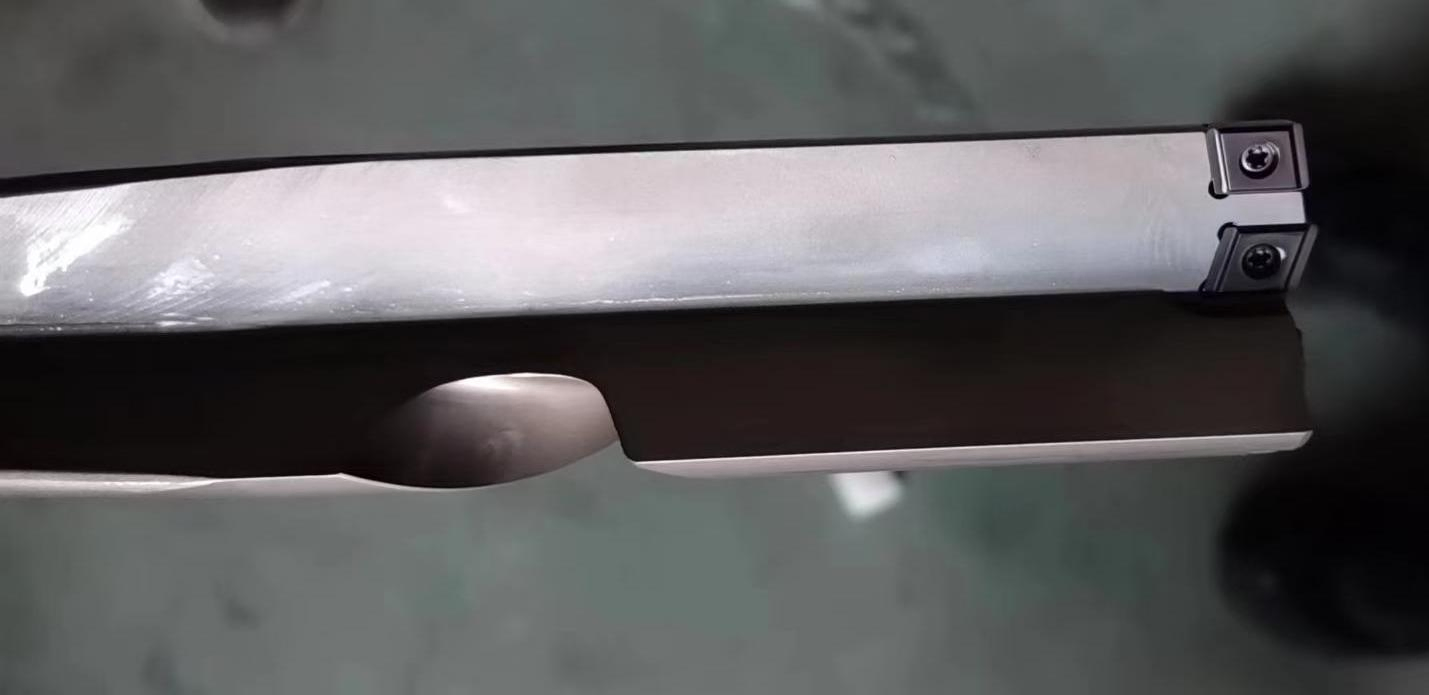

Detailed Photos

Inserted Gun Drill for Deep Hole Gundrilling Machine

Product Parameters

Brazed Drill Hole Diameter	Length
Min 14 mm	Customized
Max 60 mm	—

Frequently Asked Questions

Q1What is an inserted gun drill?

An inserted gun drill is a specialized tool designed for deep and accurate hole drilling. It features a rigid body paired with indexable, replaceable cutting inserts to optimize tool longevity and cutting speed.

Q2What are the standard diameter limits for this drill?

The drill diameter ranges from a minimum of 14mm up to a maximum of 60mm. Tool lengths can be fully customized according to engineering drawing specifications.

Q3Which materials can be processed with this tool?

It is capable of machining a wide range of materials, including hardened steels, tough alloys, and other difficult-to-machine substances commonly used in industrial sectors.

Q4How does the tool achieve superior hole quality?

By utilizing advanced cutting geometries, high tool rigidity, and optimized drilling parameters, the tool minimizes vibration and chatter, leading to minimal hole deviation and an exceptional surface finish.

Q5What are the main application areas for inserted gun drills?

They are heavily utilized in advanced manufacturing fields that demand deep hole precision, such as the automotive, aerospace, and general precision engineering industries.

Q6How does the insert design help reduce machining costs?

Since the inserts are replaceable, you do not need to replace the entire drill body when the edge wears down. This indexable design reduces tool wear costs and minimizes setup downtime.
