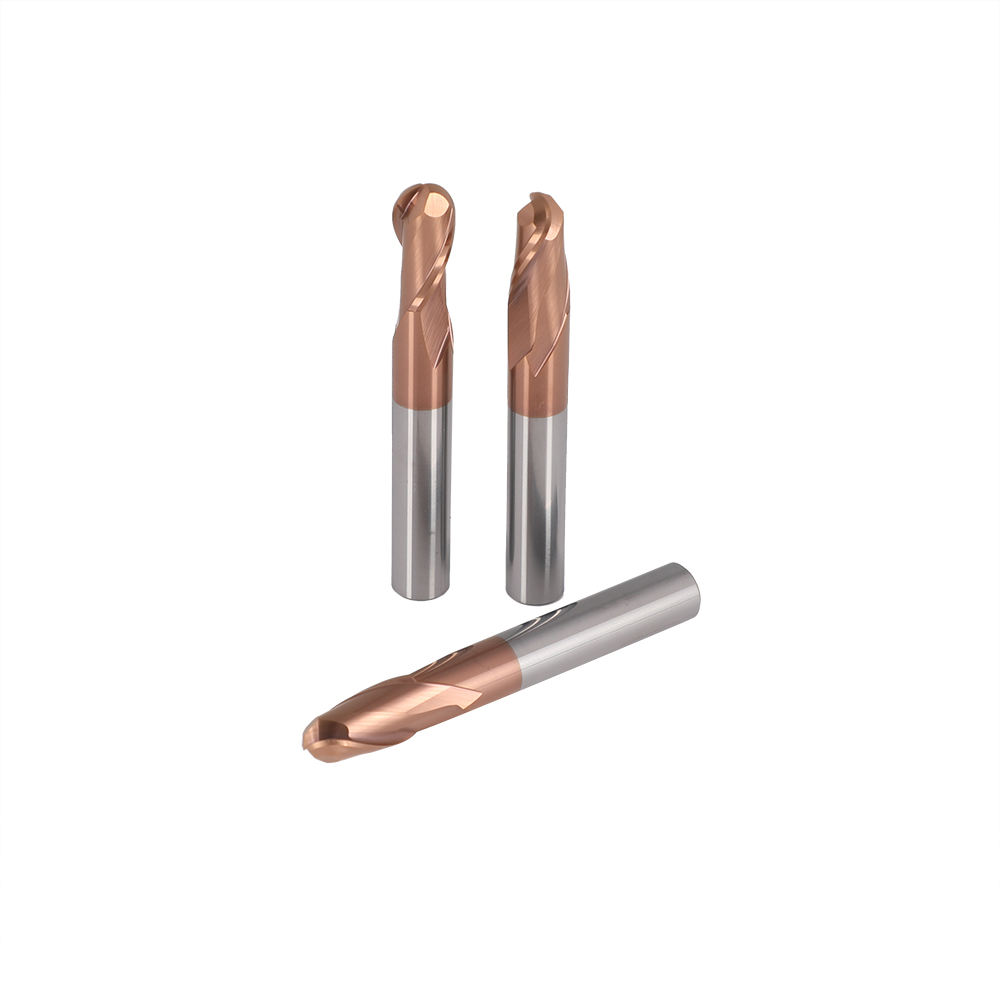

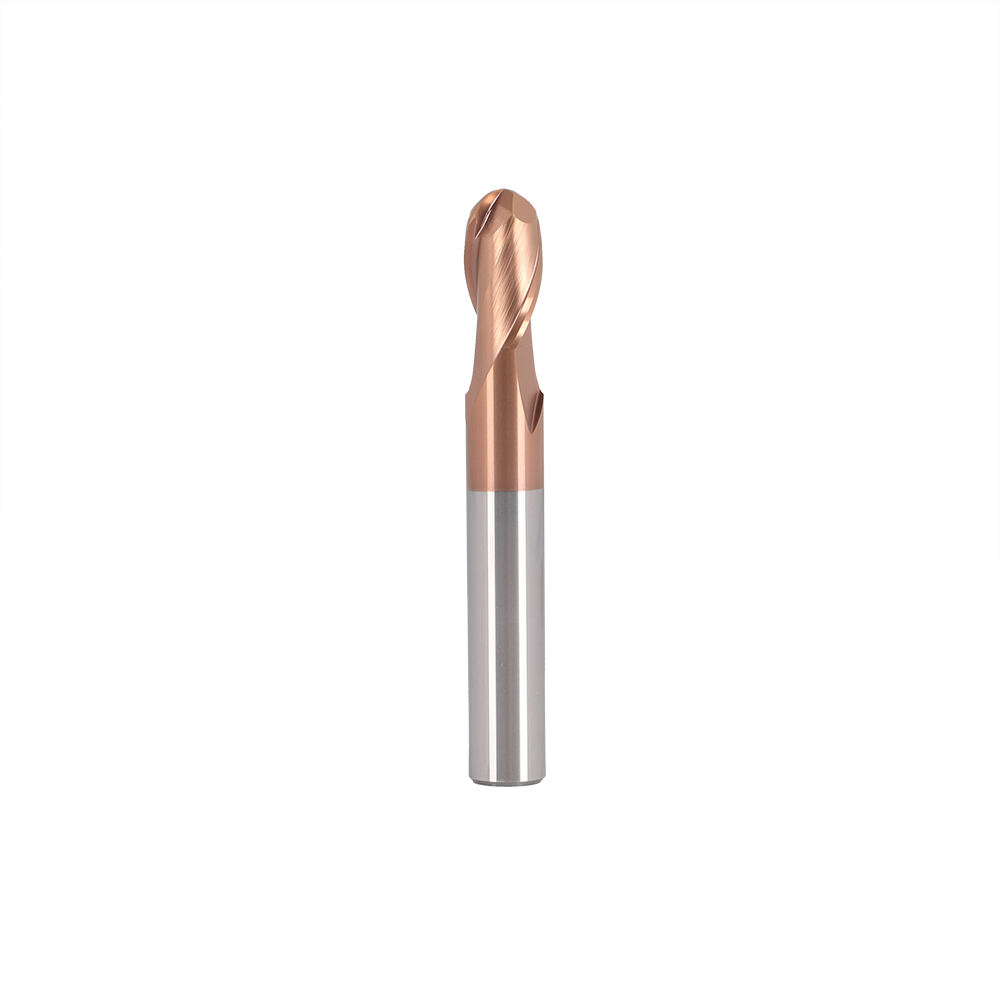

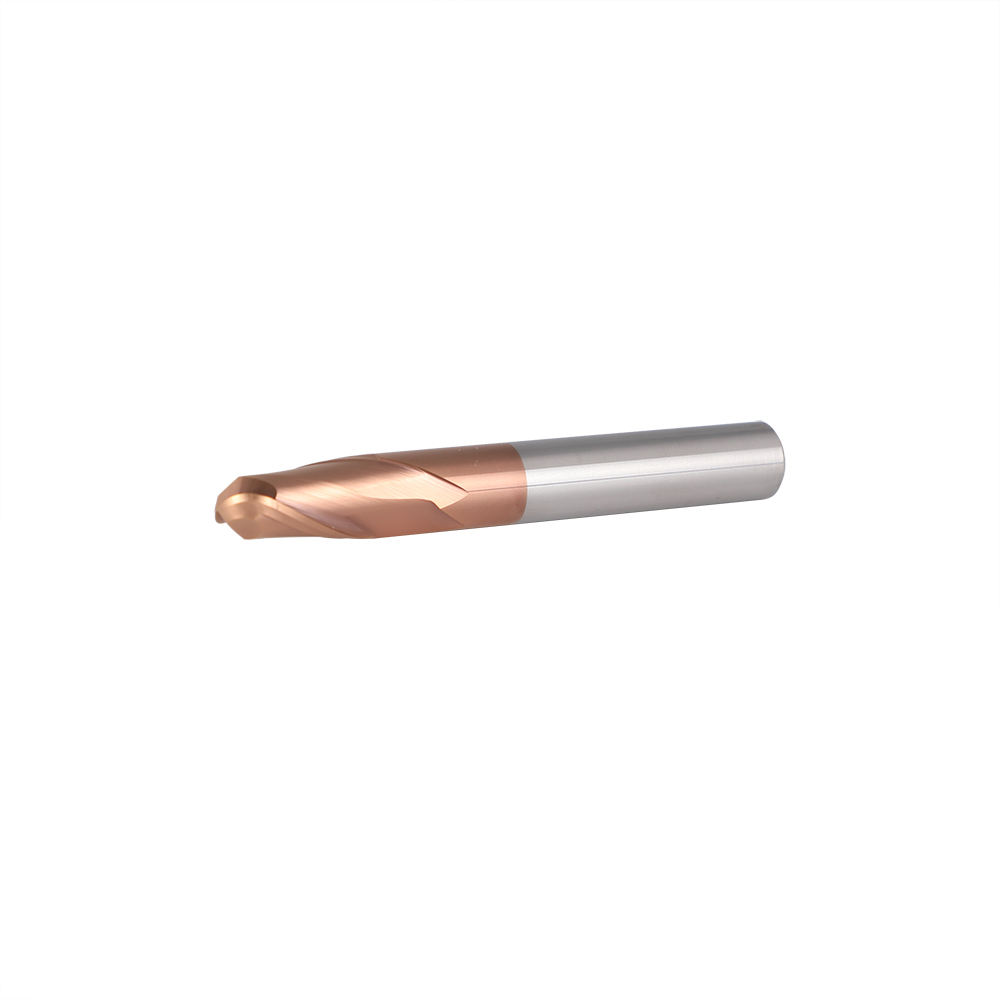

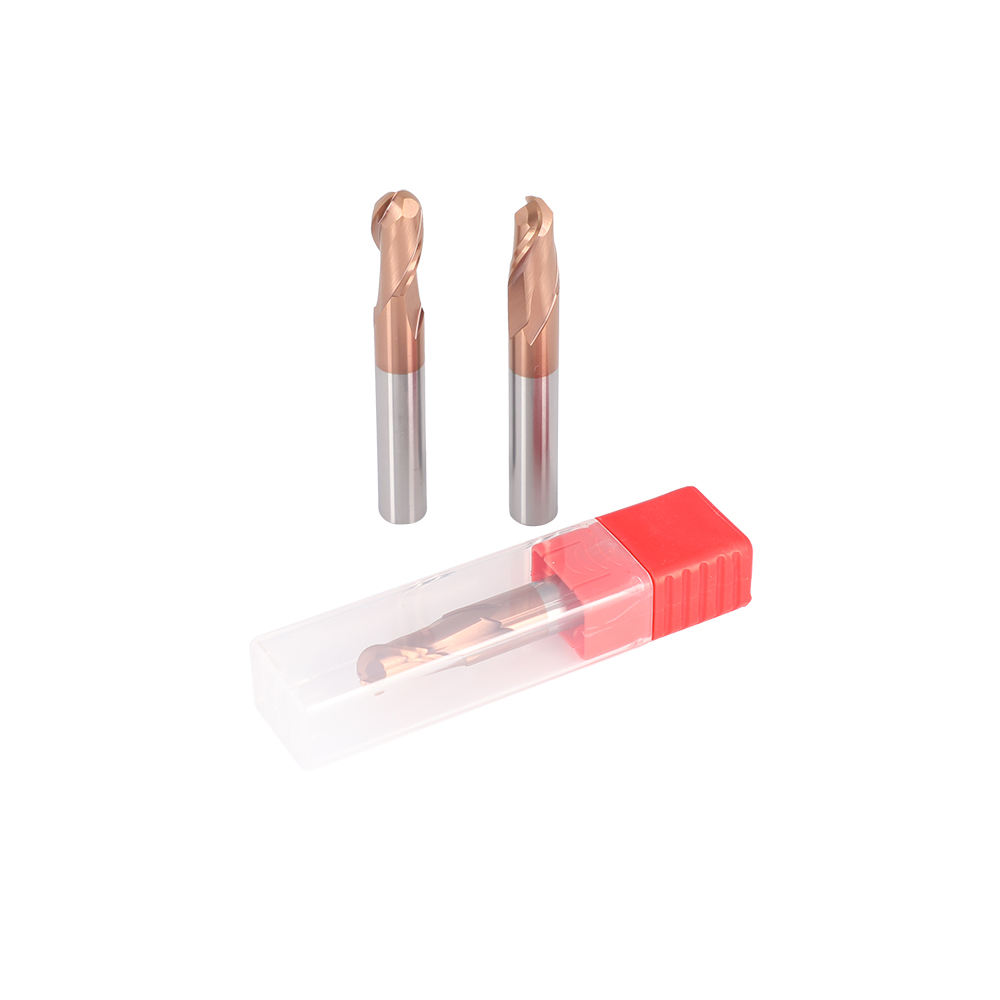

2F/4F Ball Nose End Mill Bits for Steel Milling Cutter Cutter D8 R0.5 Bull Nose End Mill Tungsten Carbide Ball Nose End Mill
2F/4F Ball Nose End Mill Bits for Steel Milling Cutter Cutter D8 R0.5 Bull Nose End Mill Tungsten Carbide Ball Nose End Mill
2F/4F Ball Nose End Mill Bits for Steel Milling Cutter Cutter D8 R0.5 Bull Nose End Mill Tungsten Carbide Ball Nose End Mill
2F/4F Ball Nose End Mill Bits for Steel Milling Cutter Cutter D8 R0.5 Bull Nose End Mill Tungsten Carbide Ball Nose End Mill
2F/4F Ball Nose End Mill Bits for Steel Milling Cutter Cutter D8 R0.5 Bull Nose End Mill Tungsten Carbide Ball Nose End Mill
1 / 5
2F/4F Ball Nose End Mill Bits for Steel Milling Cutter Cutter D8 R0.5 Bull Nose End Mill Tungsten Carbide Ball Nose End Mill
2F/4F Ball Nose End Mill Bits for Steel Milling Cutter Cutter D8 R0.5 Bull Nose End Mill Tungsten Carbide Ball Nose End Mill
2F/4F Ball Nose End Mill Bits for Steel Milling Cutter Cutter D8 R0.5 Bull Nose End Mill Tungsten Carbide Ball Nose End Mill
2F/4F Ball Nose End Mill Bits for Steel Milling Cutter Cutter D8 R0.5 Bull Nose End Mill Tungsten Carbide Ball Nose End Mill
2F/4F Ball Nose End Mill Bits for Steel Milling Cutter Cutter D8 R0.5 Bull Nose End Mill Tungsten Carbide Ball Nose End Mill

2F/4F Ball Nose End Mill Bits for Steel Milling Cutter Cutter D8 R0.5 Bull Nose End Mill Tungsten Carbide Ball Nose End Mill

Send Inquiry

Product Description

Ball Nose End Mill Product
CNC Metalworking Tools
Nano Coating End Mills
💎 Product Overview
  • Product Name: Factory wholesale CNC Metalworking Nano Coating Ball Nose End Mills For Steel Cutting
  • Standard sizes: 1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm
  • Key Advantages: High Precision, Excellent Surface Finish & Superior Performance
Product Name 2 Flutes Cylindrical Shank Carbide Ball End Mills for Processing of Tempered Steel
Material 100% New material
Coating Nano Coating
Standard ISO
OEM Supply
HRC 65°
Machining Compatibility Carbon Steel / Mould steel / Stainless steel
🔬 Super Raw Material Comparison
Item Grade HRC45 (YG10X) HRC55 (YL10.2 & WF25) HRC60 (Germany K44 & K40) HRC65 (Sandvik H10F)
Details Grain size 0.7um
Co10%
Flexural strength 3320N/mm2		 Grain size 0.6um
Co10%
Flexural strength 4000N/mm2		 Grain size 0.5um
Co12%
Flexural strength 4300N/mm2		 Grain size 0.5um
Co10%
Flexural strength 4300N/mm2
🛡️ Super Coating Advantage
Item Coating Type AlTin TiAlN TiSiN Naco
Characteristics Hardness(HV) 3300 2800 4300 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp. 900°C 800°C 1000°C 1200°C
Friction Coeff. 0.35 0.3 0.25 0.4
Color Black Bronze Bronze/Gold Blue
Advantages Application High heat stability, high speed dry cutting Normal cutting Heavy cutting, mould steel, stainless steel High precision, high hardness mould steel
📊 Standard Specification Chart
Order No R Dia Length of Cut Shank Dia O.A.L
R0.5*2*4D*50LR0.52450
R0.75*3*4D*50LR0.753450
R1.0*4*4D*50LR1.04450
R1.25*5*4D*50LR1.255450
R1.5*6*4D*50LR1.56450
R2.0*8*4D*50LR2.08450
R3.0*12*6D*50LR3.012650
R4*16*8D*60LR416860
R5*20*10D*75LR5201075
R10*40*20D*100LR104020100
Manufacturing Process
Quality Control
CNC Equipment

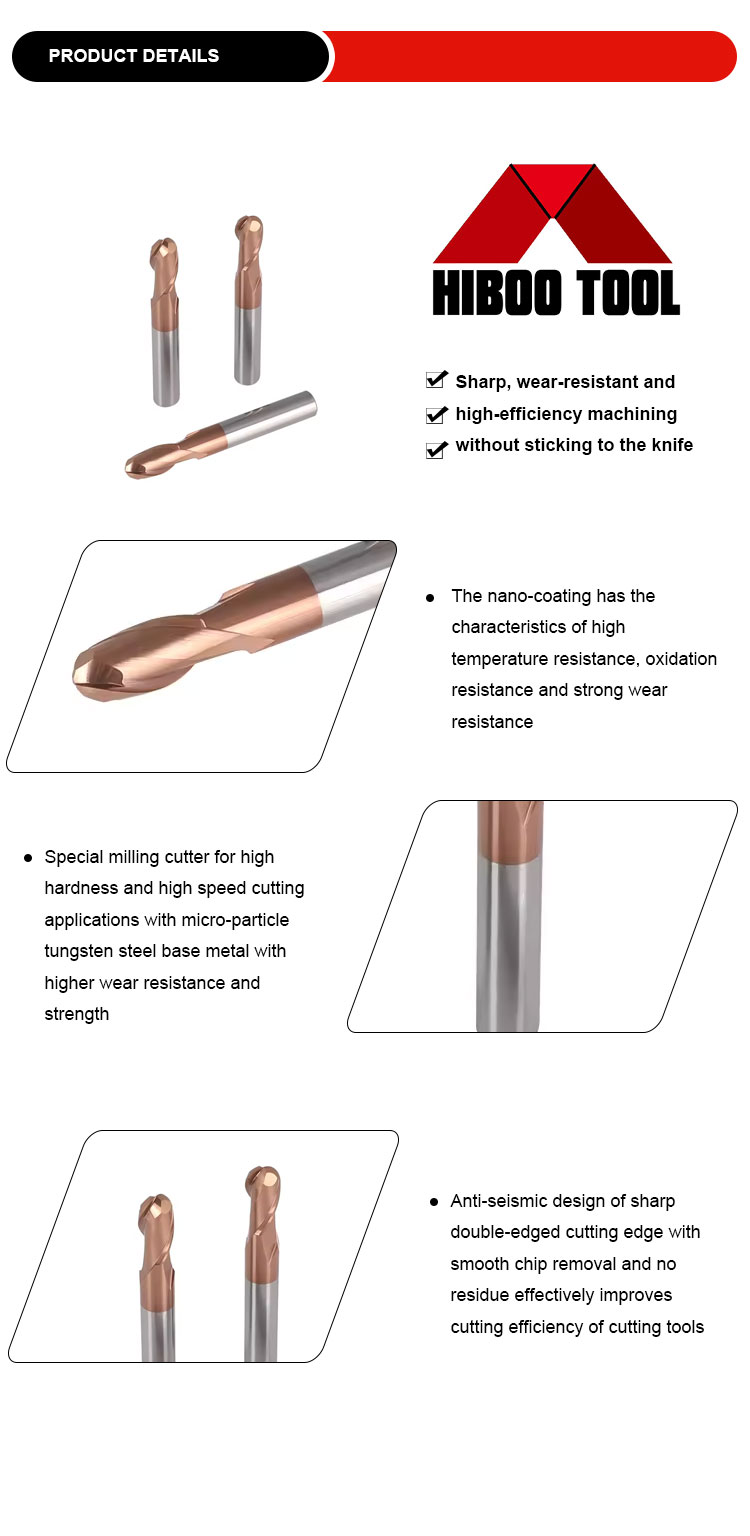

End Mill Details
Tooling Workshop
Warehouse

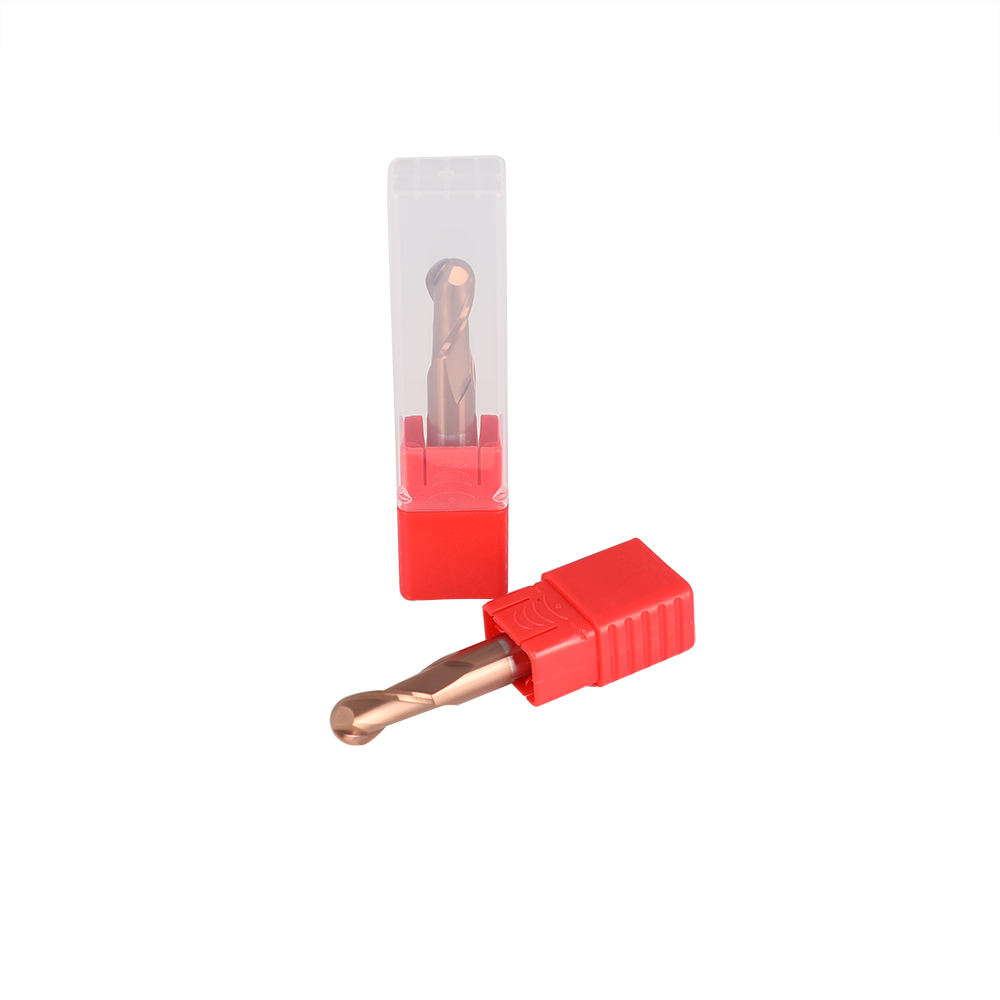

Product Packaging
Precision Inspection
Measurement Tools
Final Product
Shipping Preparation
Factory Overview
❓ Frequently Asked Questions
1. What is the benefit of the Nano Coating on these ball nose end mills? The Nano Coating provides superior hardness (up to 4300 HV) and extreme heat resistance (up to 1200°C), allowing for high-speed cutting and longer tool life even in dry machining conditions.
2. Can these tools handle high-hardness steel? Yes, our HRC65 grade tools (made with Sandvik H10F raw material) are specifically designed to process tempered steel, mould steel, and other materials with hardness up to 65 HRC.
3. Do you offer OEM or custom size services? Yes, we provide OEM services. While we have a wide range of standard sizes from 1mm to 20mm, we can support specific requirements based on your machining needs.
4. What materials are these end mills most suitable for? These end mills are optimized for carbon steel, mould steel, stainless steel, and alloy steel. They are ideal for high-precision finishing operations.
5. Why are 2 flutes preferred for ball nose end mills? 2 flutes provide excellent chip clearance, which is critical during contouring and pocketing operations where the tool tip has a smaller diameter. This prevents chip clogging and ensures a smoother surface finish.
6. What is the raw material origin? We use 100% new materials, including high-grade carbide from Germany (K44/K40) and Sandvik (H10F), ensuring consistent quality and performance.
