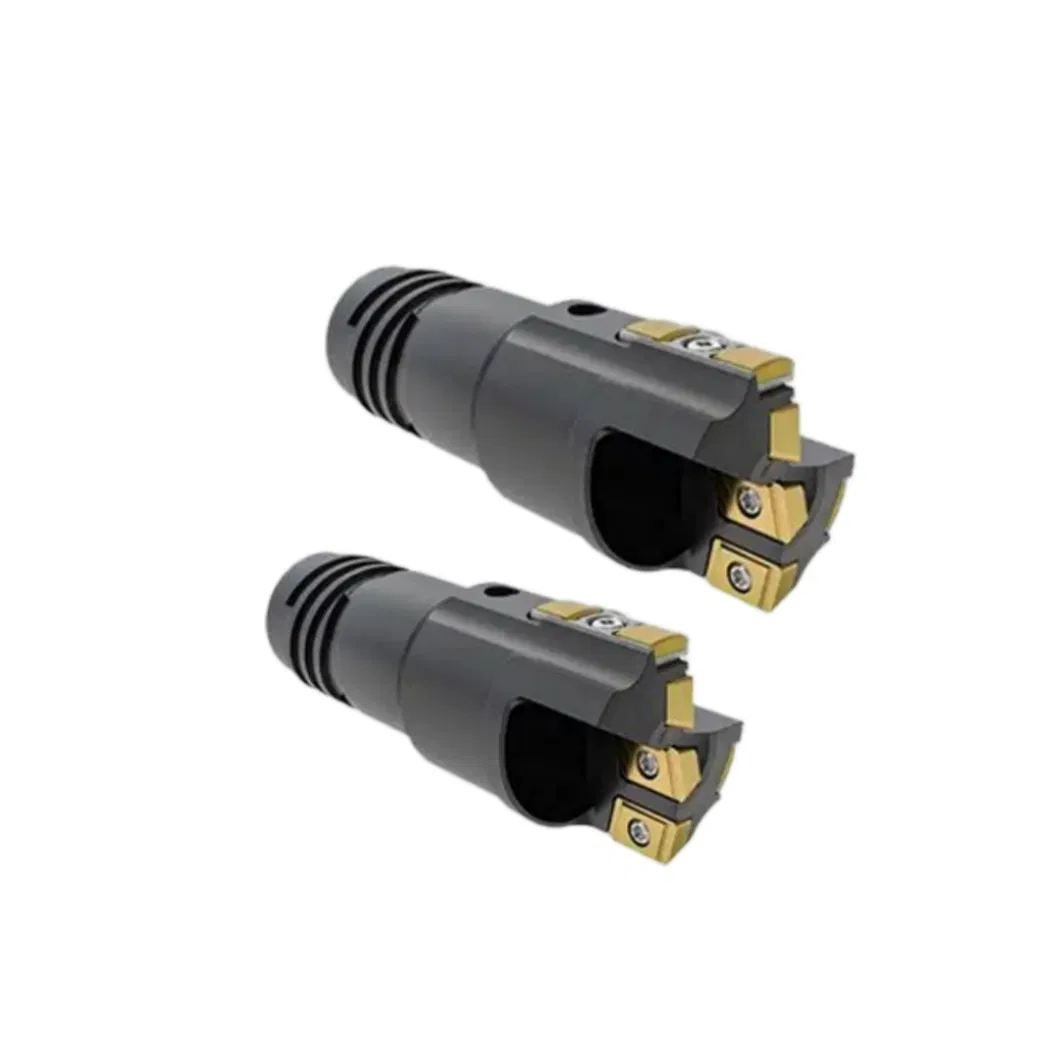

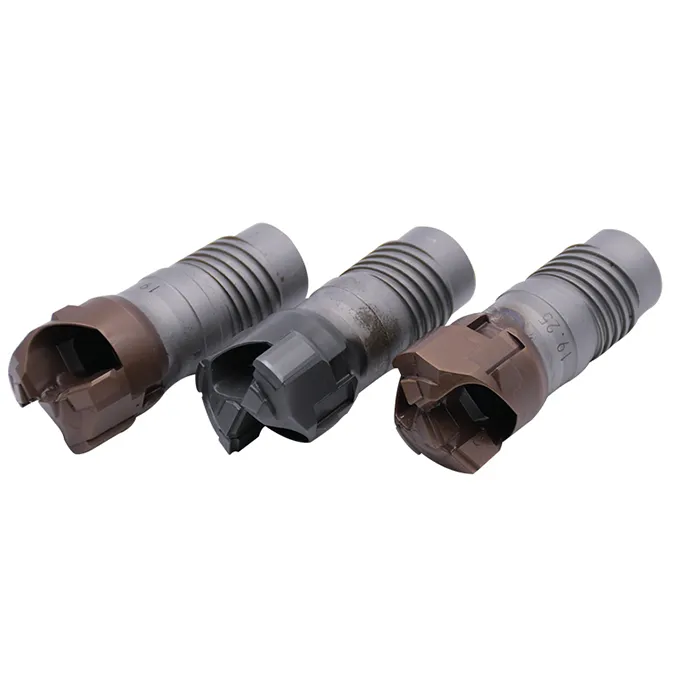

Single Tube BTA Drilling Tool Deep Hole Index Gun Drill BTA Head with Inserts

Customization:	Available
Customized:	Customized
Standard:	DIN

◆ Basic Info Overview

Model NO. BTA drill

Length Customized

Type Gun Drill Bit

Material Solid Carbide

Usage Metal Drilling

Chip Removal Type Inner Removal Type

Insert Type Indexable

Color Black

Size According to Customer

Shank Type Straight Shank

Transport Package Export Packing

Specification As Your Request

Production Capacity 500set/Year

◆ Product Description

Single Tube BTA Drilling Tool Deep Hole Index Gun Drill BTA Head with Inserts

Indexable BTA Drill Series - DXZ-1

Dia Range (mm)	Core Insert	Middle Insert	Outer Insert	Pad Model	Pad Qty	Drilling Tube O.D (mm)
25.00-26.40	800-050308M-C-G	800-050308M-I-G	800-060308H-P-G	800-06A	2	22
26.41-28.70	800-050308M-C-G	800-050308M-I-G	800-060308H-P-G	800-06A	2	24
28.71-31.00	800-06 T308M-C-G	800-050308M-I-G	800-060308H-P-G	800-06A	2	27
31.01-33.30	800-06 T308M-C-G	800-06 T308M-I-G	800-08 T308H-P-G	800-07A	2	27
33.31-36.20	800-06 T308M-C-G / 800-08 T308M-C-G	800-06 T308M-I-G / 800-08 T308M-I-G	800-08 T308H-P-G	800-07A	2	30
36.21-39.60	800-08 T308M-C-G	800-08 T308M-I-G	800-08 T308H-P-G / 800-09 T308H-P-G	800-07A	2	30
39.61-43.00	800-06 T308M-C-G	800-08 T308M-I-G	800-09 T308H-P-G	800-08A	2	35
43.01-47.00	800-10 T308M-C-G	800-08 T308M-I-G	800-09 T308H-P-G	800-08A	2	40
47.01-51.70	800-12 T308M-C-G / 800-10 T308M-C-G	800-08 T308M-I-G	800-09 T308H-P-G / 800-11 T308H-P-G	800-10A	2	43
51.71-56.20	800-10 T308M-C-G	800-08 T308M-I-G / 800-12 T308M-I-G	800-11 T308H-P-G	800-10A / 800-12A	2	45
56.21-65.00	800-12 T308M-C-G	800-12 T308M-I-G	800-11 T308H-P-G	800-12A	2	48 / 52

✔ High quality Sandvik insert and pad.

✔ Dia 25mm---65mm, first choice of high efficiency.

✔ Excellent straightness and surface finish. It can maintain good chip removal performance during the processing of stainless steel and low carbon steel, to keep continuous production.

✔ Easy to install and to use.

Indexable BTA Drill Series - DXZ-2

Dia Range (mm)	Core Insert	Middle Insert	Outer Insert	Pad Model	Pad Qty	Vice Qty	Drill Tube O.D (mm)
25.00-28.70	800-050308M-C-G	800-050308M-I-G	800-060308H-P-G	300604	2	1	22
28.71-31.00	800-06 T308M-C-G	800-050308M-I-G	800-060308H-P-G	300604	2	-	27
31.01-33.30	800-06 T308M-C-G	800-06 T308M-I-G	800-08 T308H-P-G	400745	2	1	27
33.31-36.20	800-06 T308M-C-G / 800-08 T308M-C-G	800-06 T308M-I-G / 800-08 T308M-I-G	800-08 T308H-P-G	400745	2	1	30
36.21-39.60	800-08 T308M-C-G	800-08 T308M-I-G	800-08 T308H-P-G / 800-09 T308H-P-G	400745	2	1	30
39.61-43.00	800-06 T308M-C-G	800-08 T308M-I-G	800-09 T308H-P-G	400805	2	1	35
43.01-47.00	800-10 T308M-C-G	800-08 T308M-I-G	800-09 T308H-P-G	401006	2	1	40
47.01-51.70	800-12 T308M-C-G / 800-10 T308M-C-G	800-08 T308M-I-G	800-09 T308H-P-G / 800-11 T308H-P-G	401006	2	1	43
51.71-56.20	800-10 T308M-C-G	800-08 T308M-I-G / 800-12 T308M-I-G	800-11 T308H-P-G	401206	2	1	45
56.21-65.00	800-12 T308M-C-G	800-12 T308M-I-G	800-11 T308H-P-G	401206	2	1	48 / 52

✔ High quality Sandvik insert and pad.

✔ Dia 25mm---65mm, first choice of high efficiency.

✔ Excellent straightness and surface finish. It can maintain good chip removal performance during the processing of stainless steel and low carbon steel, to keep continuous production.

✔ Easy to install and to use.

Indexable BTA Drill Series - DXZ-3

Dia Range (mm)	Core Holder & Insert	Qty	Middle Holder & Insert	Qty	Outer Holder & Insert	Qty	Pad Model	Qty	Drill Tube O.D (mm)
60.01-63.50	15NDK / TPMT16T312R	1 / 1	15ZDK / TPMT16T312R	1 / 1	14WDK / R424.9-13T308	1 / 1	401206 (201006)	2 / 1	52
64.00-67.00	15NDK / TPMT16T312R	1 / 1	15ZDK / TPMT16T312R	1 / 1	14WDK / R424.9-13T308	1 / 1	401206 (201006)	2 / 1	56
67.20-68.00	15NDK / TPMT16T312R	1 / 1	15ZDK / TPMT16T312R	1 / 1	14WDK / R424.9-13T308	1 / 1	501407 (201407)	2 / 1	56
68.20-72.00	15NDK / TPMT16T312R	1 / 1	15ZDK / TPMT16T312R	1 / 1	14WDK / R424.9-13T308	1 / 1	501407 (201407)	2 / 1	61
73.00-78.00	15NDK / TPMT16T312R	1 / 1	15ZDK / TPMT16T312R	1 / 1	19WDK / R424.9-180608	1 / 1	501407 (201407)	21	65

✔ High quality Sandvik insert and pad.

✔ Dia 25mm---65mm, first choice of high efficiency.

✔ Excellent straightness and surface finish. It can maintain good chip removal performance during the processing of stainless steel and low carbon steel, to keep continuous production.

✔ Easy to install and to use.

Indexable BTA Drill Series - DXZ-4

Diameter Range (mm)	Core Holder & Insert	Qty	Middle Holder & Insert	Qty	Outer Holder & Insert	Qty	Pad Model	Qty
64.51-67.80	NDK17 / C13T308-G	1 / 1	ZDK17 / I13T308-G	1 / 1	WDK19 / P14T308-G	1 / 1	401206 (201006)	2 / 1
67.81-73.40	NDK17 / C13T308-G	1 / 1	ZDK17 / I13T308-G	1 / 1	WDK19 / P14T308-G	1 / 1	401206 (201006)	2 / 1
73.41-79.80	NDK17 / C13T308-G	1 / 1	ZDK17 / I13T308-G	1 / 1	WDK23 / P19T308-G	1 / 1	501407 (201407)	2 / 1
79.81-82.60	NDK17 / C13T308-G	1 / 1	ZDK17 / I13T308-G	1 / 1	14WDK / R424.9-13T308	1 / 1	501407 (201407)	2 / 1
82.61-90.40	NDK24 / C19T308-G	1 / 1	ZDK17 / I13T308-G	1 / 1	14WDK / R424.9-13T308	1 / 1	501407 (201407)	2 / 1
90.41-106.0	NDK24 / C19T308-G	1 / 1	ZDK24 / I19T308-G	1 / 1	19WDK / R424.9-180608	1 / 1	501407 (201407)	2 / 1

◆ DXZ-4 Indexable BTA Drill Features:

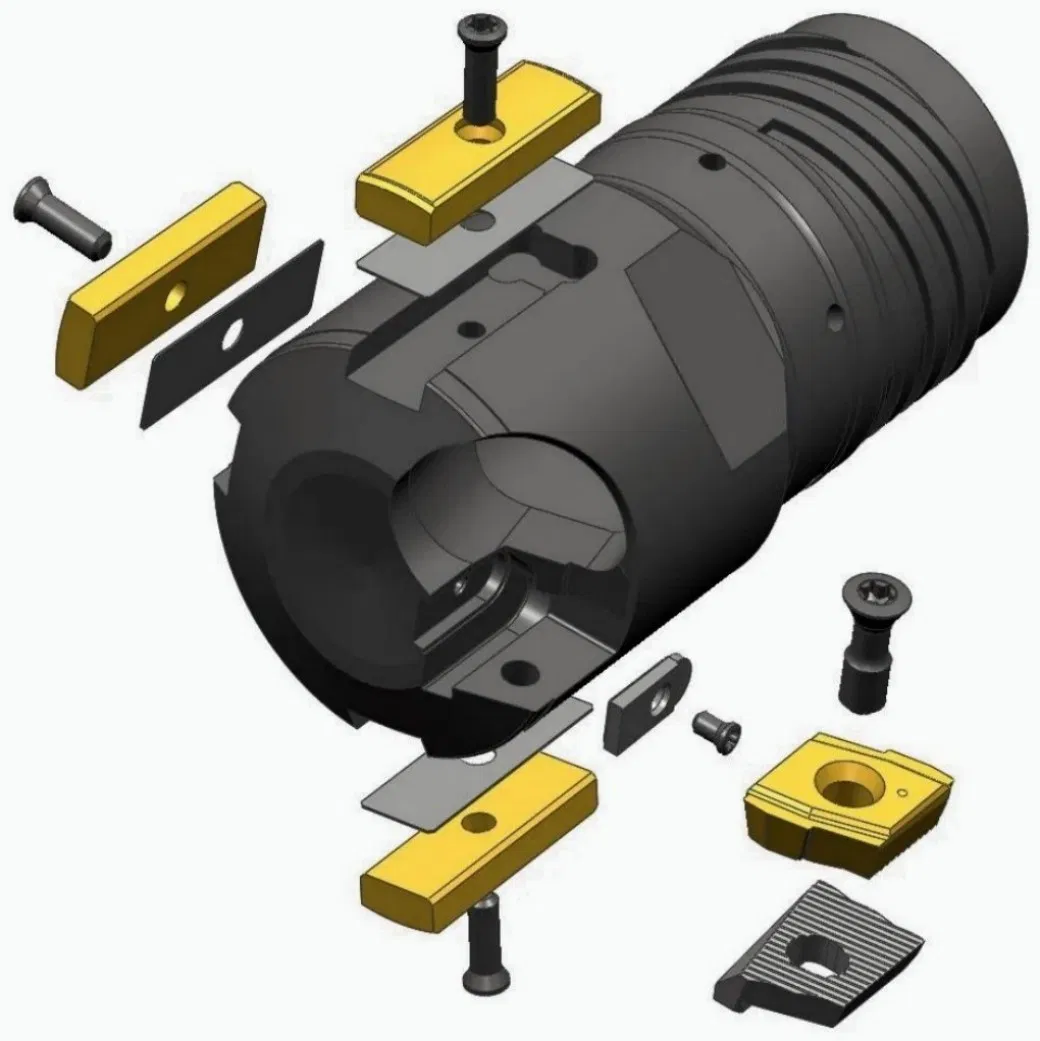

✔ Fasten alloy-coated insert and high-strength carbide pad, deep hole drill bit with replaceable tool holder. Added auxiliary guiding mechanism, processing is more stable and performance is better.

✔ Diameter 65.00---106.00 with higher working efficiency and more cost-effective.

✔ Outstanding hole straightness and surface finish. Good chip removal in the processing of stainless steel and low carbon steel to ensure uninterrupted production.

✔ Easy to install and use.

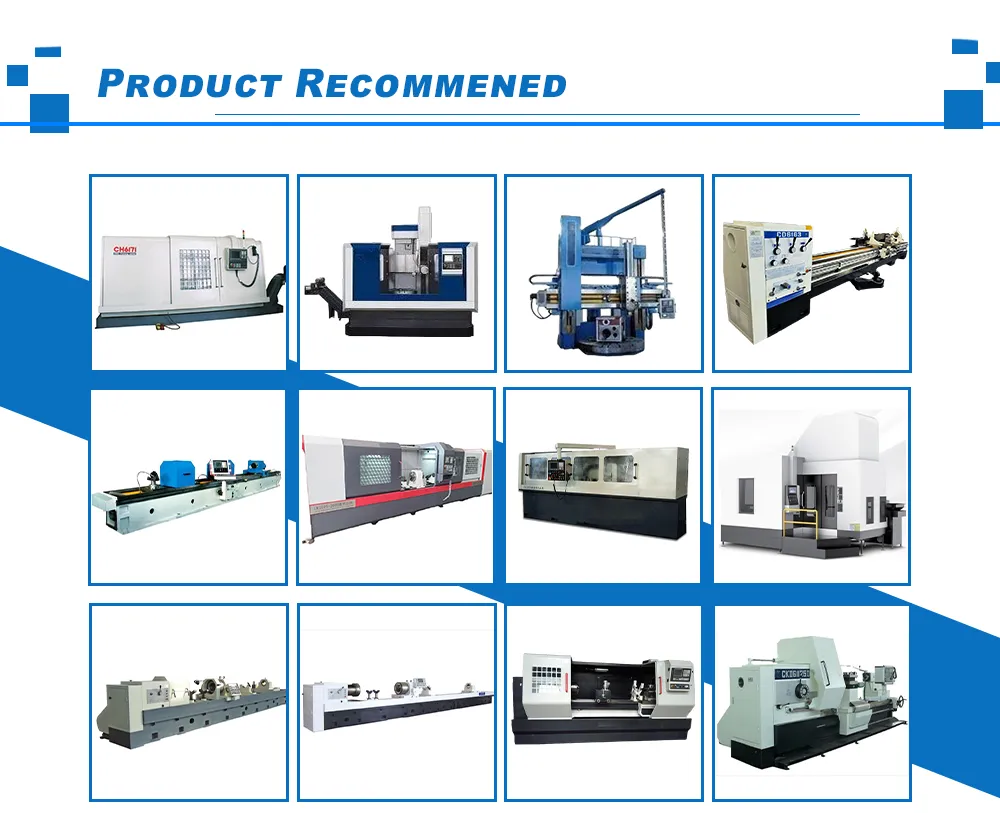

◆ Recommended Products

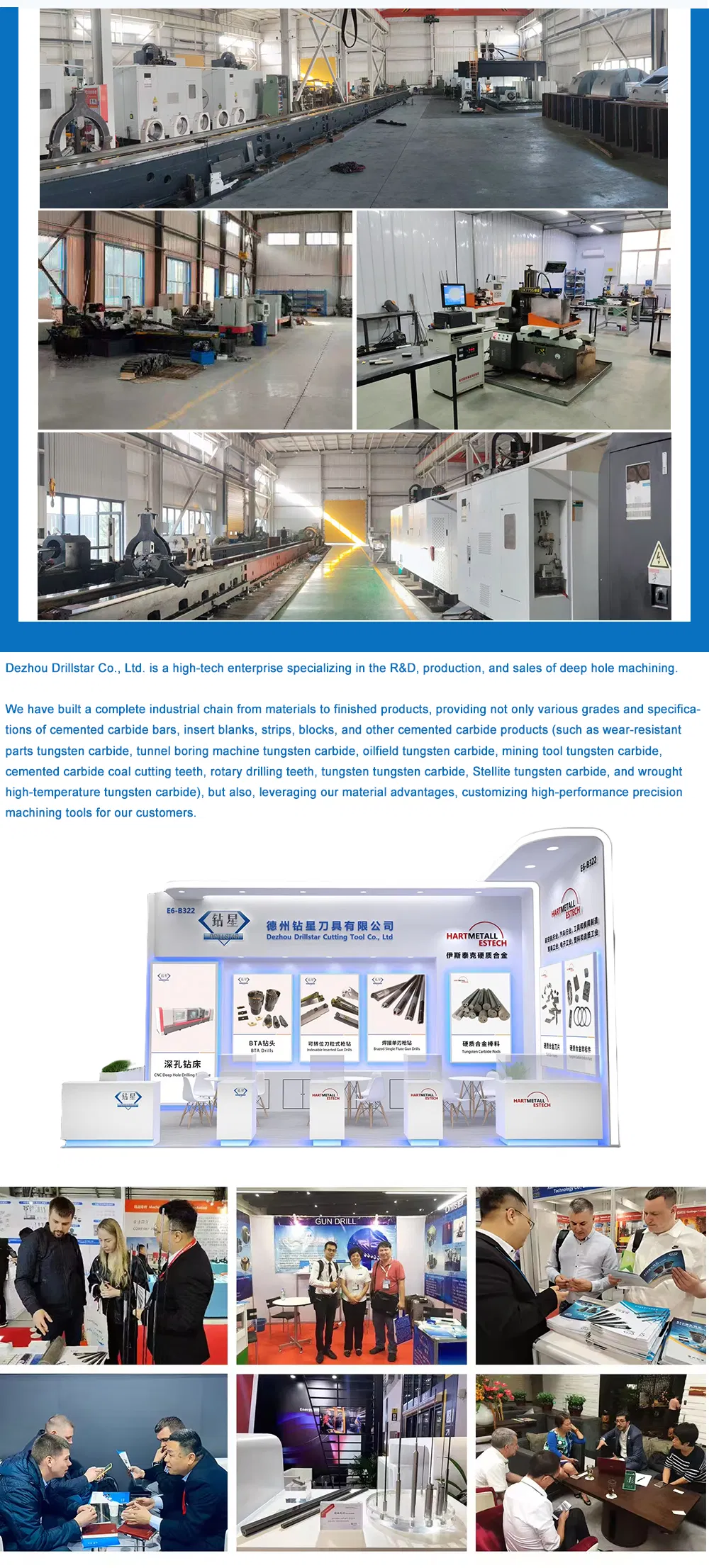

◆ Company Profile

◆ Packaging & Shipping

◆ FAQ

Q1 What is the Warranty for the tungsten carbide products?

We own high precision grading machine to control geometry dimensions and apply ultra fine grain size substrate coated with high performance coatings to guarantee the lifetime of our products, which can satisfy every working condition. If any quality problems on our side occurred in this period, we will take on the shipping cost and replacement.

Q2 Do you provide free samples?

Yes, usually we provide free samples for testing under the condition of freight paid by customer.

Q3 What is your minimum order requirement?

We will indicate the MOQ for each item in the quotation sheet. We accept the sample and trial order. If the quantity of single item can't reach the MOQ, the price should be sample price.

Q4 What is the delivery time of your products?

It depends on the inventory availability. If items needed are in stock, the delivery time would be within 8 work days, but if not the delivery time would be around 20 work days.

Q5 Can you manufacture carbide Special-shaped products?

Yes, we can. We can produce both standard end mills and special tools. We can make them according to your drawings and samples.

Q6 May I have my order working schedule?

Yes, we will send working schedule of your order each week. We will inspect and test all merchandise in case of damaging and missing parts before shipment. The detailed inspection pictures of the order will be sent to you for your confirmation before delivery.
