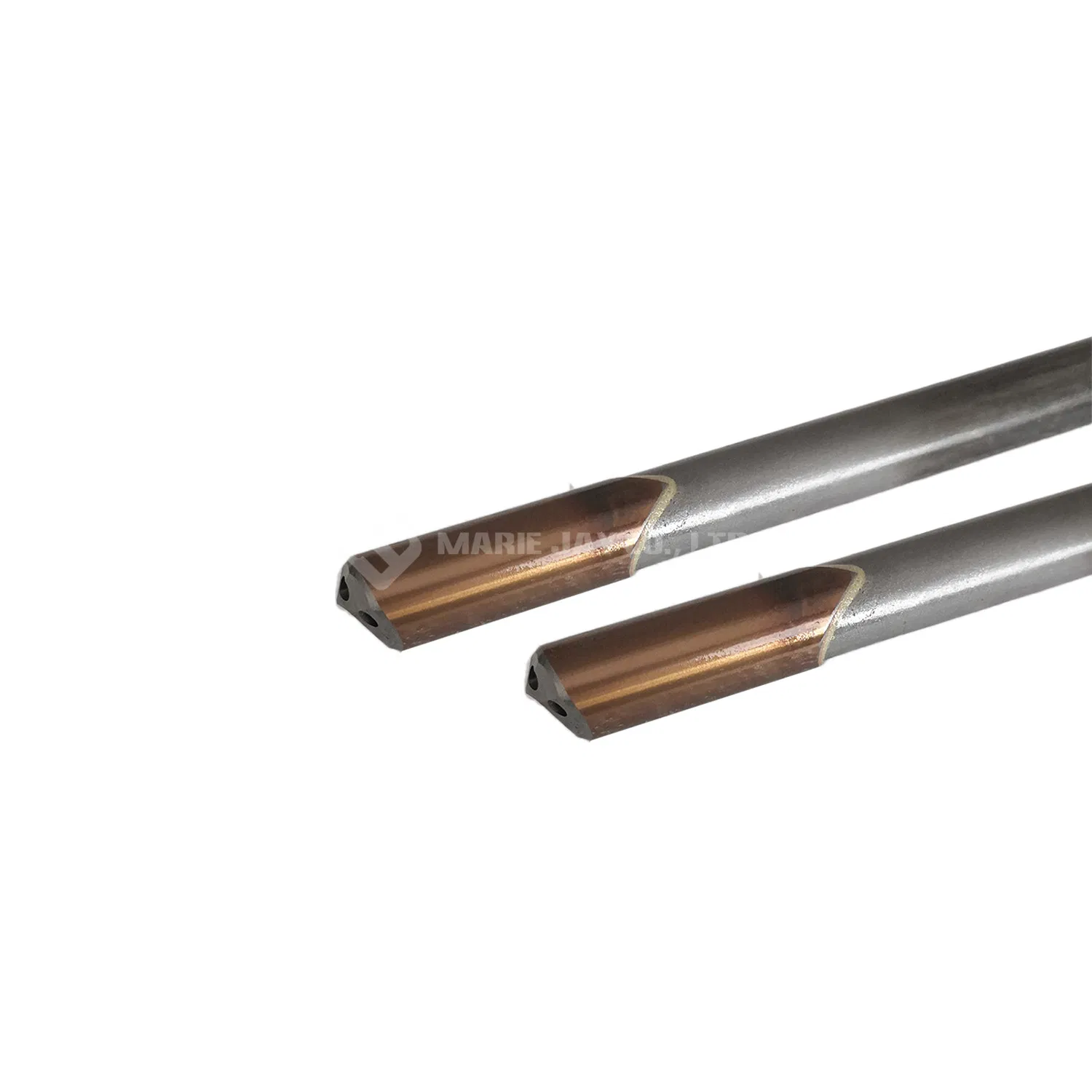

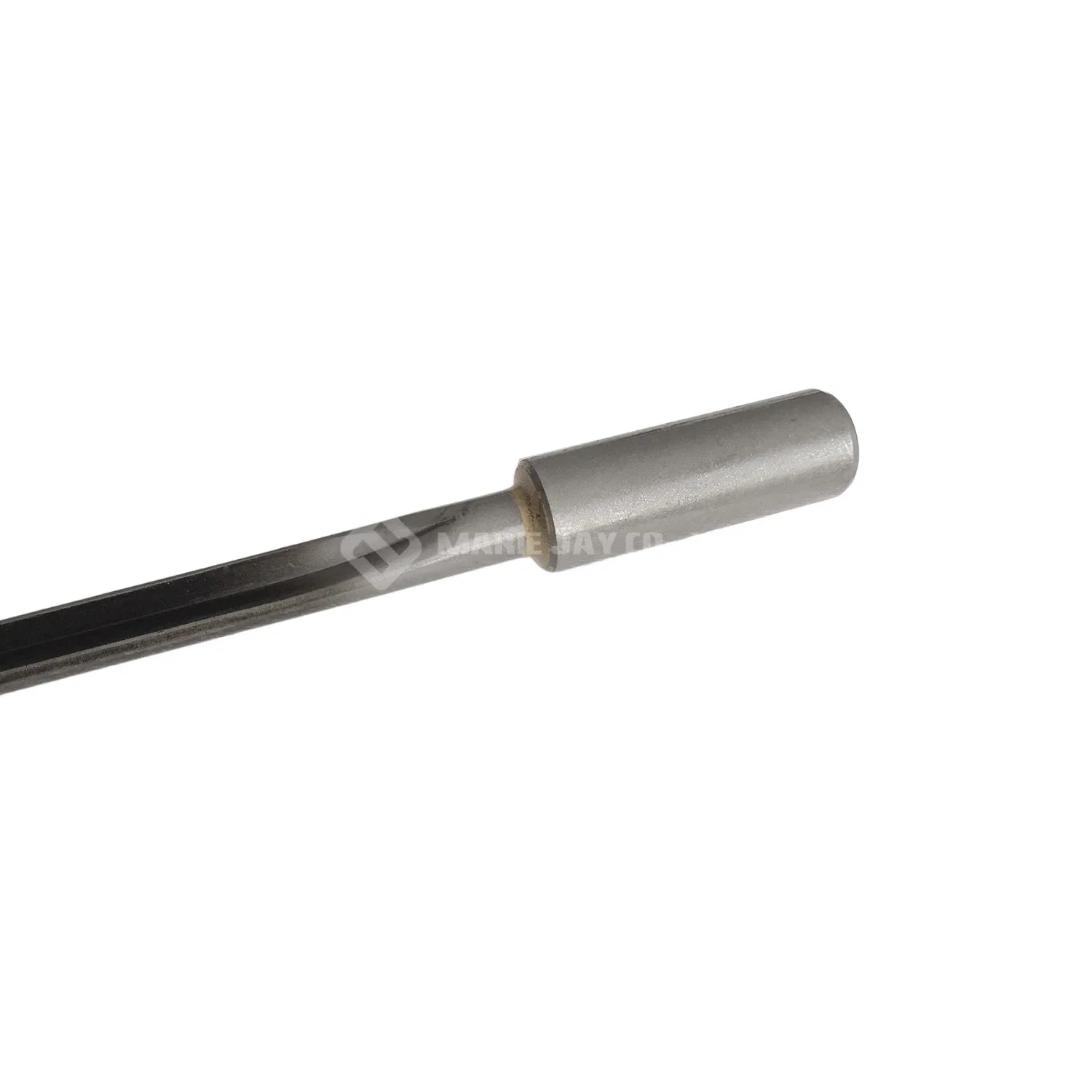

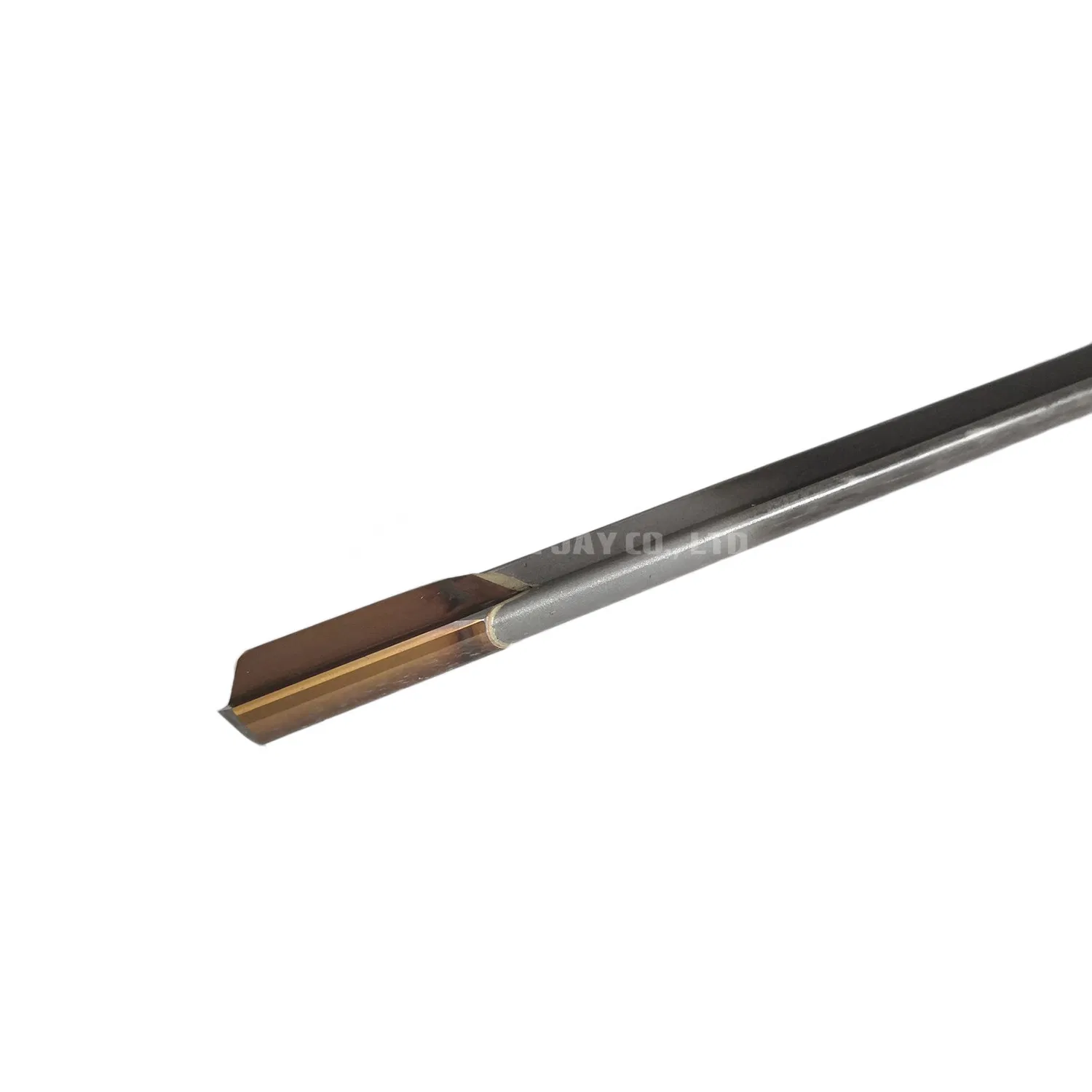

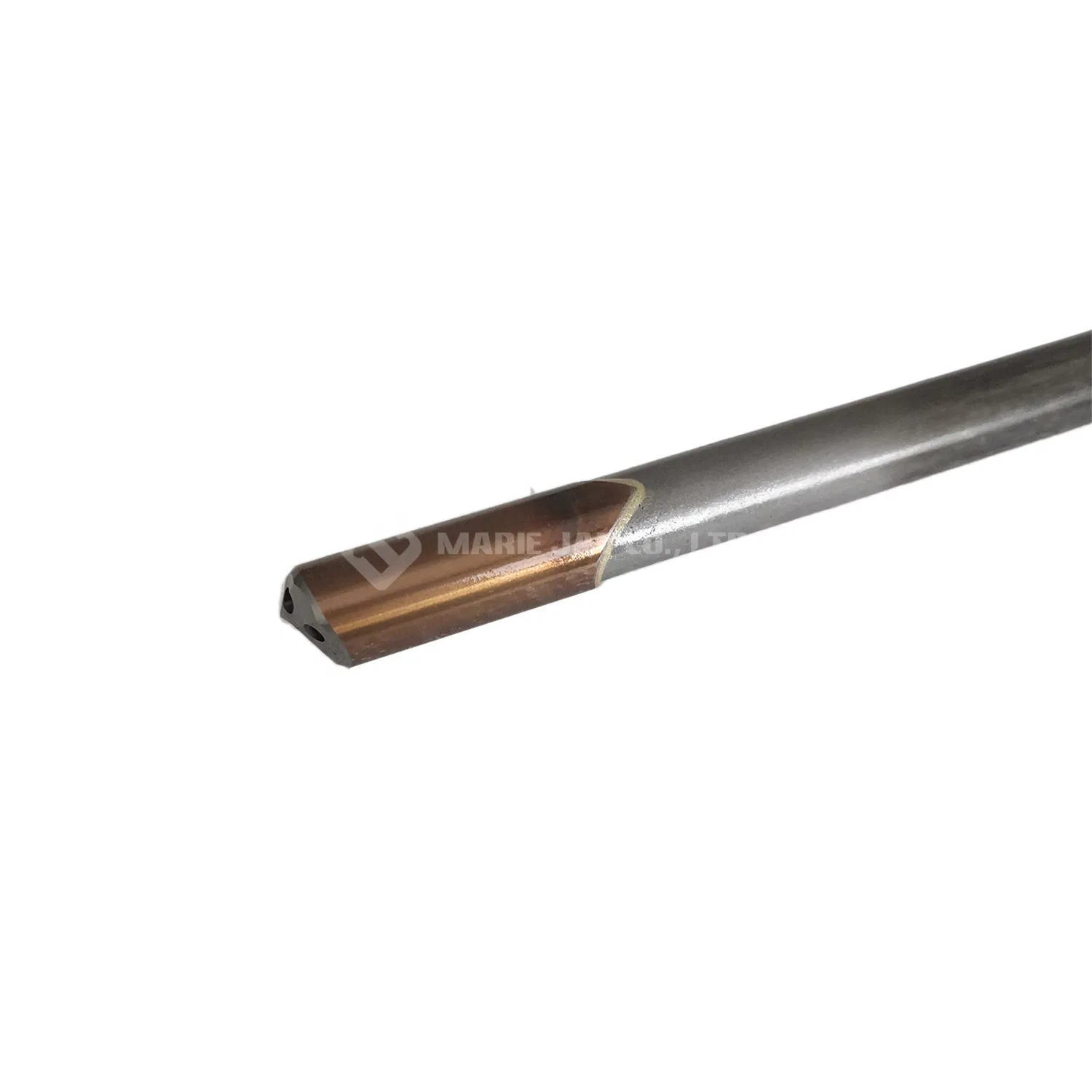

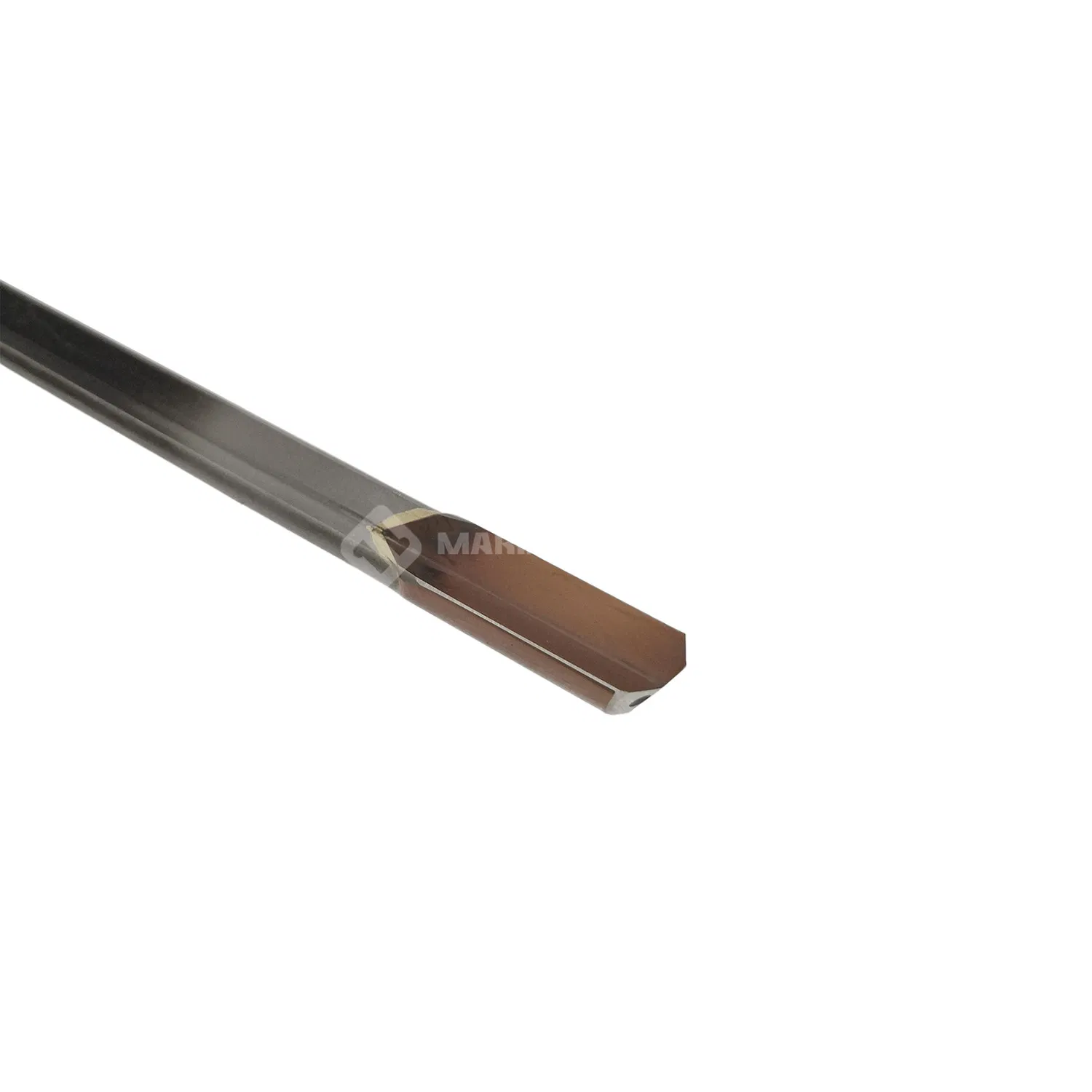

China Double Flutes Cemented Carbide Tipped Two Holes Deep Gun Drill
Gun drill is considered to be used when the hole depth with diameter range of 2.0~50mm up to or exceeds ten times the diameter, as the gun drill provides high hole precision, accurate hole position, excellent hole surface finishes, good straightness and concentricity. It can be easily applied to process various kinds of deep holes, and also an ideal solution for the special deep holes, such as cross-holes, blind holes and flat-bottomed blind holes etc.
| Type | L1 | L2 | X | M | Drill Dia. |
|---|---|---|---|---|---|
| Φ10*40 | 40 | 46 | 24.3 | - | 1.900-7.099 |
| Φ16*45 | 45 | 53 | 31 | - | 1.900-12.099 |
| Φ16*50 | 50 | 58 | 47.5 | - | 1.900-12.099 |
| Φ25*70 | 70 | 78 | 34 | - | 1.900-19.799 |
| Φ10*40 | 42 | 55 | 24.3 | - | 7.100-9.999 |
| Φ16*45 | 45 | 65 | 31 | - | 11.400-14.949 |
| Φ16*50 | 52 | 75 | 47.5 | - | 11.400-14.949 |
| Φ25*70 | 72 | 105 | 34 | - | 19.800-24.799 |
| Φ16*50 | 50 | 58 | 47.5 | - | 1.900-8.699 |
| Φ12.7*38.1 | 38.1 | - | 25.4 | - | 1.900-8.299 |
| Φ19.05*69.8 | 69.8 | - | 44.4 | - | 1.900-14.949 |
| Φ25.4*69.8 | 69.8 | - | 57.1 | - | 1.900-19.799 |
| Φ31.57*69.8 | 69.8 | - | 57.1 | - | 1.900-25.999 |
| Φ38.1*69.8 | 69.8 | - | 57.1 | - | 1.900-32.999 |
| Φ12.7*38.1 | 38.1 | 58 | 25.4 | - | 8.300-12.499 |
| Φ19.05*69.8 | 69.8 | 100 | 44.4 | - | 14.95-18.799 |
| Φ25.4*69.8 | 69.8 | 105 | 57.1 | - | 19.8-24.799 |
| Φ31.75*69.8 | 69.8 | 100 | 57.1 | - | 26.0-30.999 |
| Φ38.1*69.8 | 69.8 | 100 | 57.1 | - | 33.0-40.0 |
| Φ10*68 | 68 | - | 35 | M6*0.5 | 1.9-6.799 |
| Φ16*90 | 90 | - | 37 | M10*1 | 1.9-12.099 |
| Φ25*112 | 112 | - | 45 | M16*1.5 | 1.9-19.799 |
| Φ10*68 | 68 | 81 | 35 | M6*0.5 | 6.8-9.999 |
| Φ16*90 | 90 | 110 | 37 | M10*1 | 11.4-14.949 |
| Φ25*112 | 112 | 142 | 45 | M16*1.5 | 19.8-24.799 |
| ... | ... | ... | ... | ... | ... |
Cemented Carbide Tipped Deep Gun Drill Packaging
We mainly choose the following delivery ways:
Shipment options: Express, Air, or Sea
We can arrange shipment according to our customers' requests.
If there is any problem related to the shipping, please feel free to contact us.

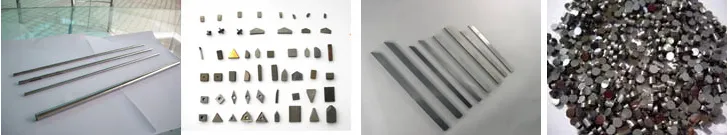

1. Tungsten carbide products:
Carbide Rods, Carbide Bars, Carbide Strips, Carbide Plates, STB Carbide Blanks, Drawing Dies, Cold Forginng Dies, Carbide Disc Cutters, Carbide Inserts, Carbide Shims, Carbide Burrs and Carbide Burr Blanks, Carbide Mining Bits, Carbide Drilling Bits, Carbide Cutting Tools for Wood and Bamboos, Tile Cutter Wheels, Scriber Tips, Customized Carbide Products etc.

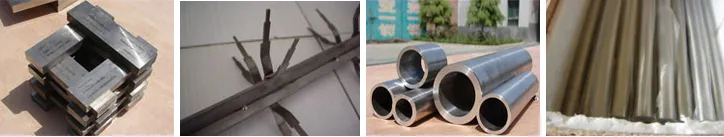

2. Titanium and titanium alloy products:
Titanium Rods, Titanium Tubes, Titanium Pipe Fittings, Titanium Plates, Titanium Sheets, Titanium Foils, Titanium Wires, Titanium Nuts and Bolts, Titanium Brazing and Casting, Customized Titanium Products etc.
Our main focus is in the metal-processing industry. We specialize in design, development, and production of metal products in the fields of tungsten carbide products, titanium & titanium alloy products, nitinol products, molybdenum products, and other casted or machined products, such as ductile iron casted & machined products, gray iron casted & machined products, aluminum casted & machined products, and copper casted or forged & machined products etc. We especially pay attention on tungsten carbide products, titanium & titanium alloy products, and nitinol products.
We are a professional Chinese manufacturer and supplier. And also we work with some factories by joint stock method. Our prices are competitive, and we can supply good quality products and comprehensive services as well.
We export our products and develop new products according to customers' requirements to USA, Mexico, South America, Germany and western countries etc. by working with an export company.
Work with us, you will benefit financially and conveniently from our good quality and services, and competitive prices.
