Deep Hole Processing Tungsten Carbide Gun Drill for Precision Part Long Drill Bits

Customization:	Available
After-sales Service:	Online
Warranty:	1 Year

Basic Info.

Model NO.

carbide gun drill

Logo Printing

Without Logo Printing

Size

Small

Customized

Type

Cutting Tool

Material

Tungsten Carbide

Certification

ISO 9001:2008, ISO 9001:2000

OEM & ODM

Support

Advantage

High Hardness, Wear Resistance and Toughness

Types

Customized Short Carbide Gun Drill Blanks Rod

Allow

Standard&Customized

Description

Short Tungsten Carbide Gun Drill Blanks Rod

Transport Package

Export Packing

Specification

As Your Request

Production Capacity

500set/Year

Product Description

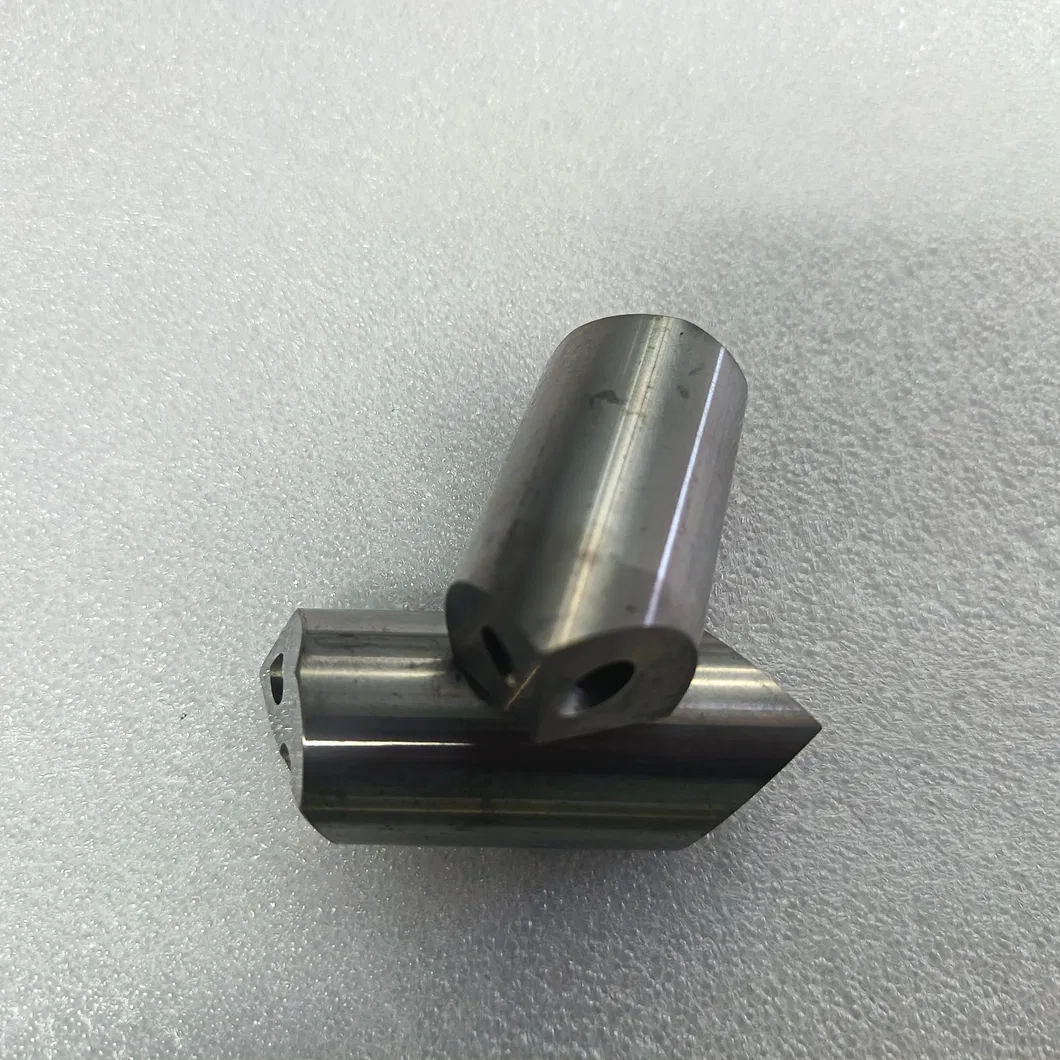

Deep Hole Processing Tungsten Carbide Gun Drill for Precision Part Long Drill Bits

Carbide offers a full range of deep hole drills and gun drills.

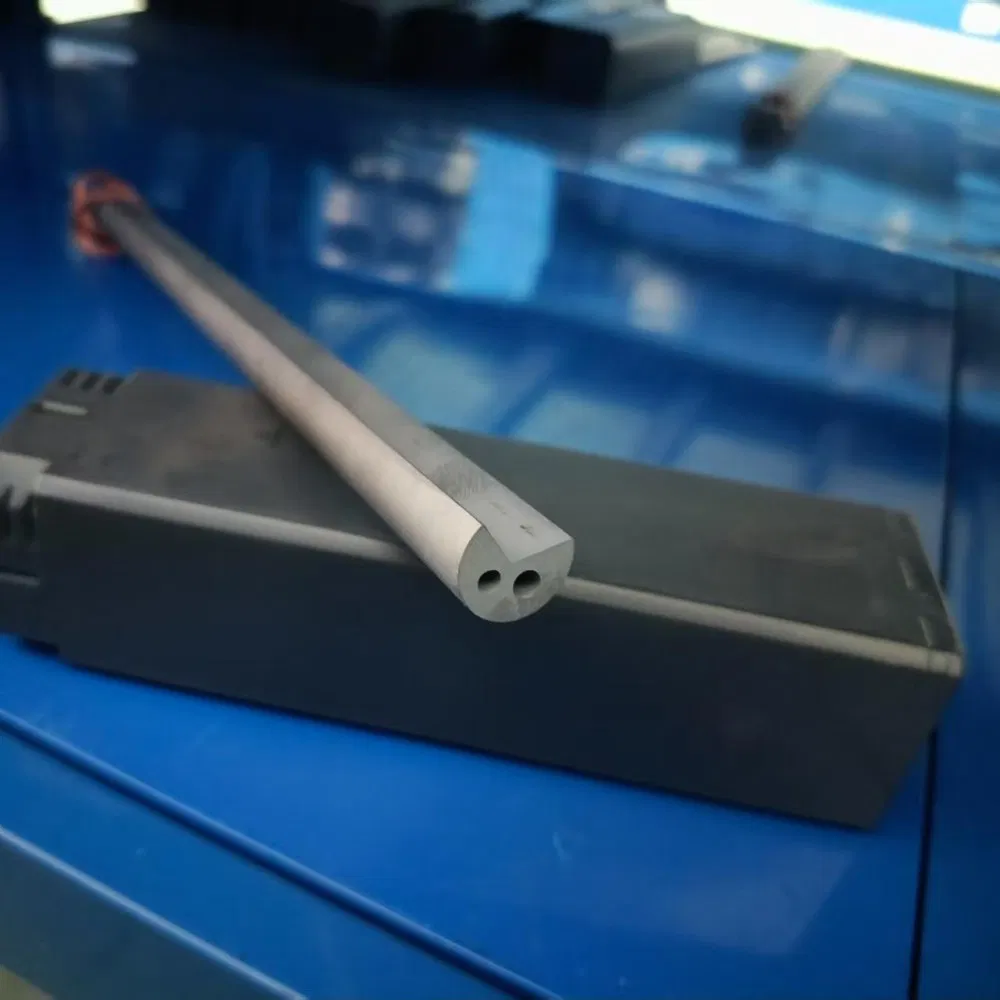

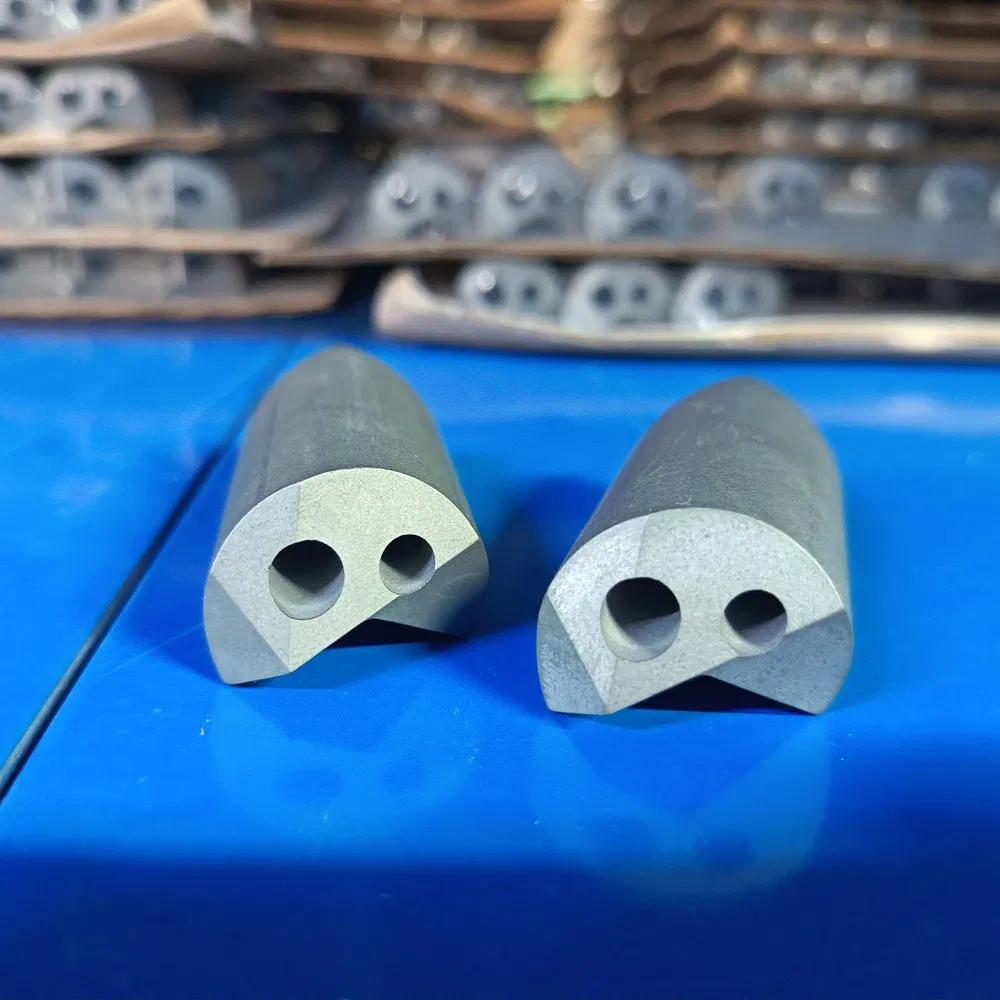

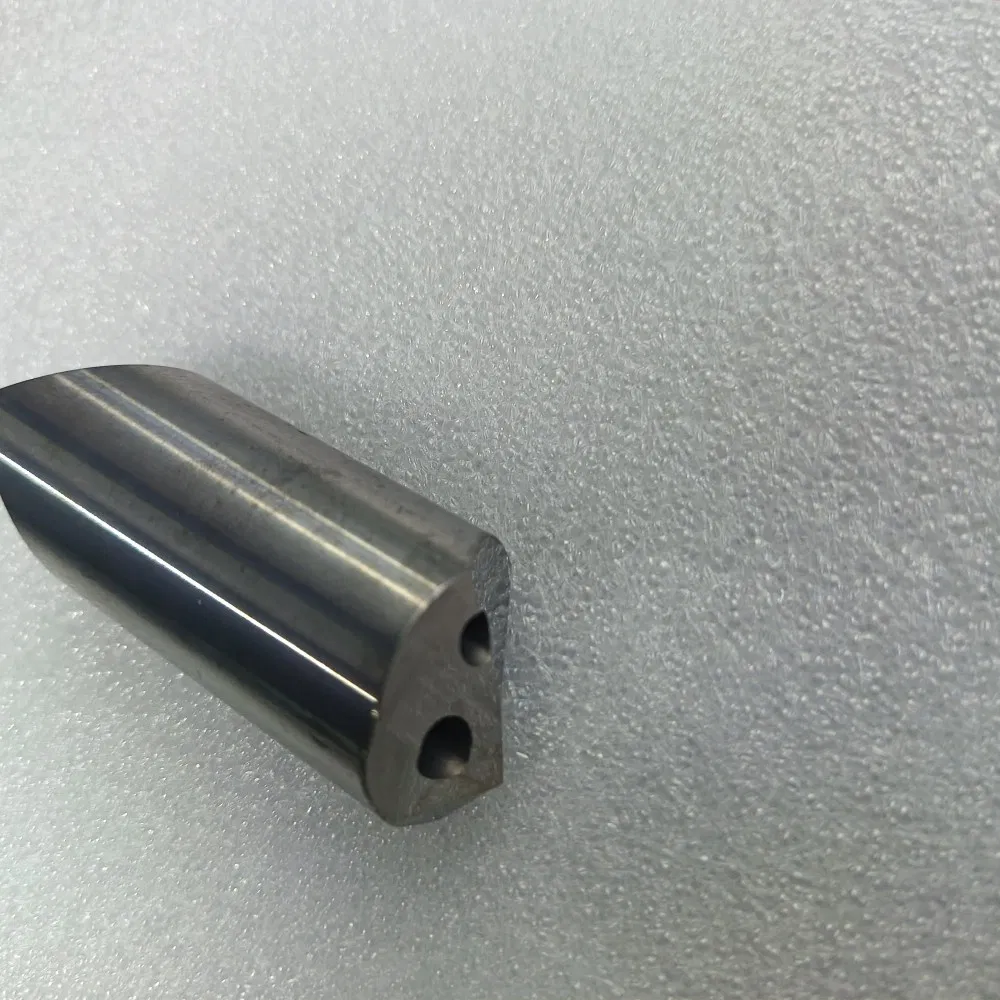

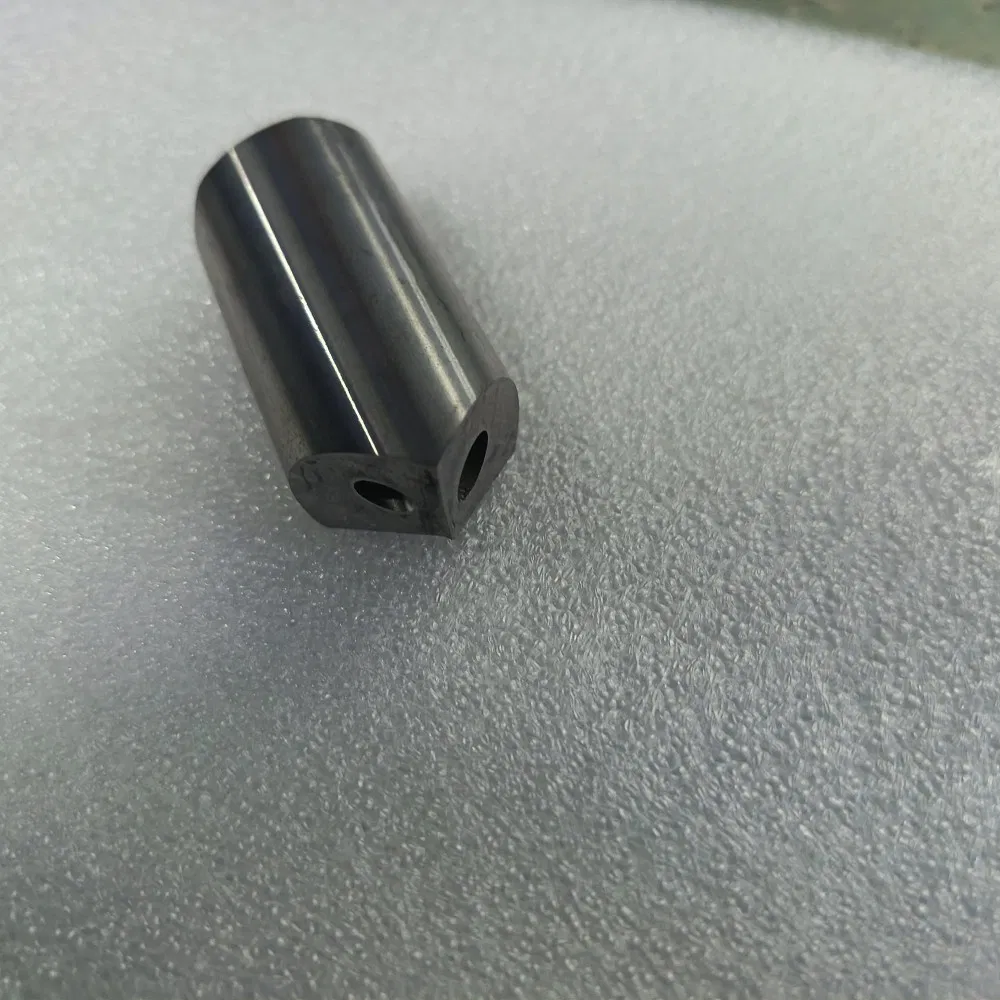

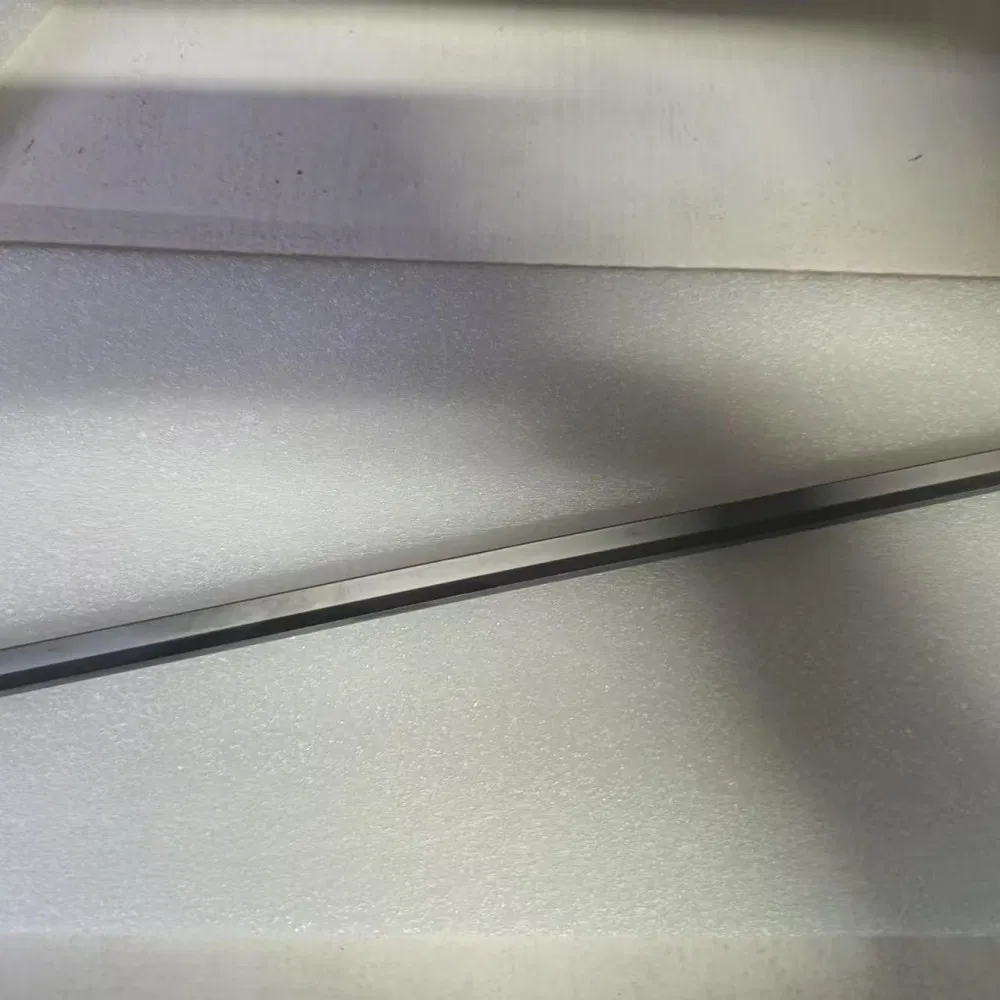

Gun drill blanks-Carbide drill rods for gun drills can be solid drill rods or drill bits cut to the required length, and can be pre-formed and pre-ground at angles. Cooling holes of round or other shapes can also be manufactured, including single-hole, double-hole, or kidney-shaped holes.

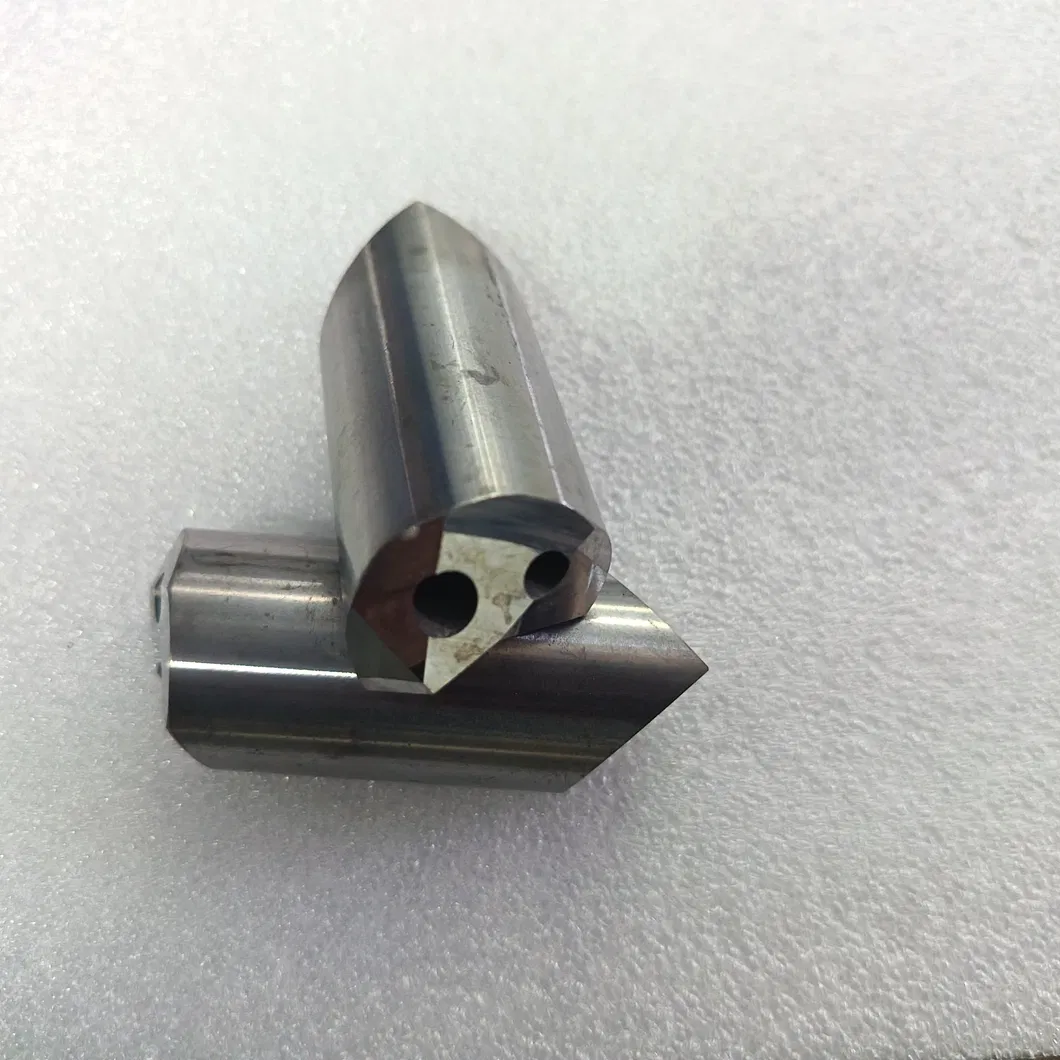

Standard gun drill extrusions are available in lengths up to 330 mm, with outer diameters ranging from 3 mm to 45 mm, and are offered in three different cooling hole geometries. Gun drill bits with an outer diameter less than 10 mm can be manufactured with one or two cooling holes.

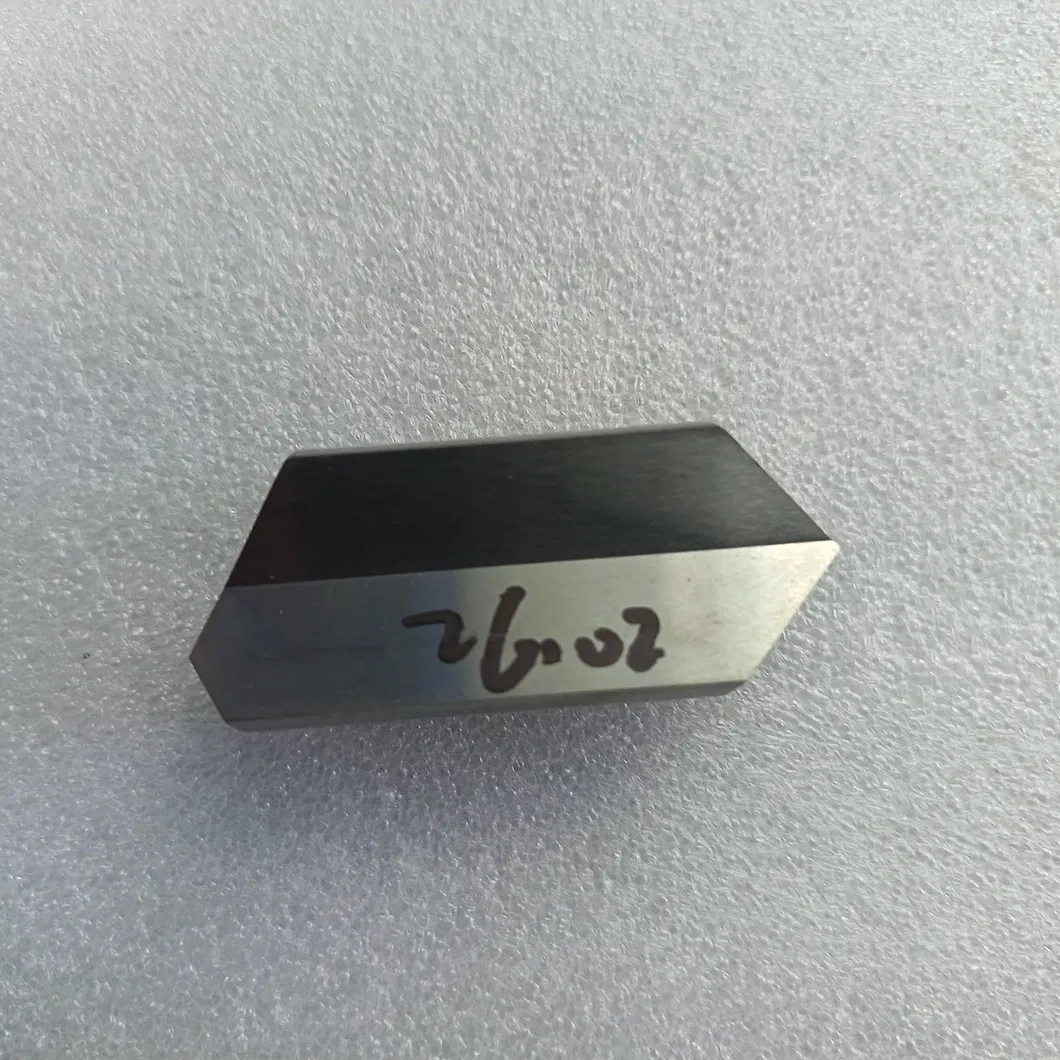

gun drill blanks			gun drill tips
Dimension D*L	grade	grade	Dimension D*L	grade
	AF6	AS10	Dimension D*L	AF6	AF6
2.4*330mm
3.5*330mm	x
4.5*330mm	x
5.5*330mm	x
6.5*330mm	x
7.0*330mm	x			7.0*35mm
7.5*330mm	x			7.5*35mm
8.0**330mm	x			8.0*35mm
8.5**330mm	x			8.5*35mm
9.0**330mm	x			9.0*35mm
9.5**330mm	x			9.5*35mm
10.0**330mm				10.0*35mm
10.5**330mm	x			10.5*40mm
11.0**330mm				11.5*40mm
11.5**330mm	x			12.5*40mm
12.0**330mm				13.5*40mm
12.5*330mm	x			13.5*40mm
13.0*330mm				14.5*40mm
13.5*330mm	x			15.5*40mm
14.0*330mm				16.5*40mm
14.5*330mm	x			17.5*40mm
15.0*330mm				18.5*40mm
15.5*330mm	x			19.5*45mm
16.0*342mm				20.5*45mm
16.5*330mm	x			21.5*45mm
17.0*330mm				22.3*50mm	x
17.5*330mm	x			23.3*50mm	x
18.0*330mm				24.3*55mm	x
18.5*330mm	x			25.3*55mm	x
19.0*330mm				26.3*55mm	x
19.5*330mm	x			27.3*55mm	x
20.0*330mm				28.3*65mm	x
20.5*330mm	x			30.3*65mm	x
21.5*330mm	x			32.3*65mm	x

Recommended Products

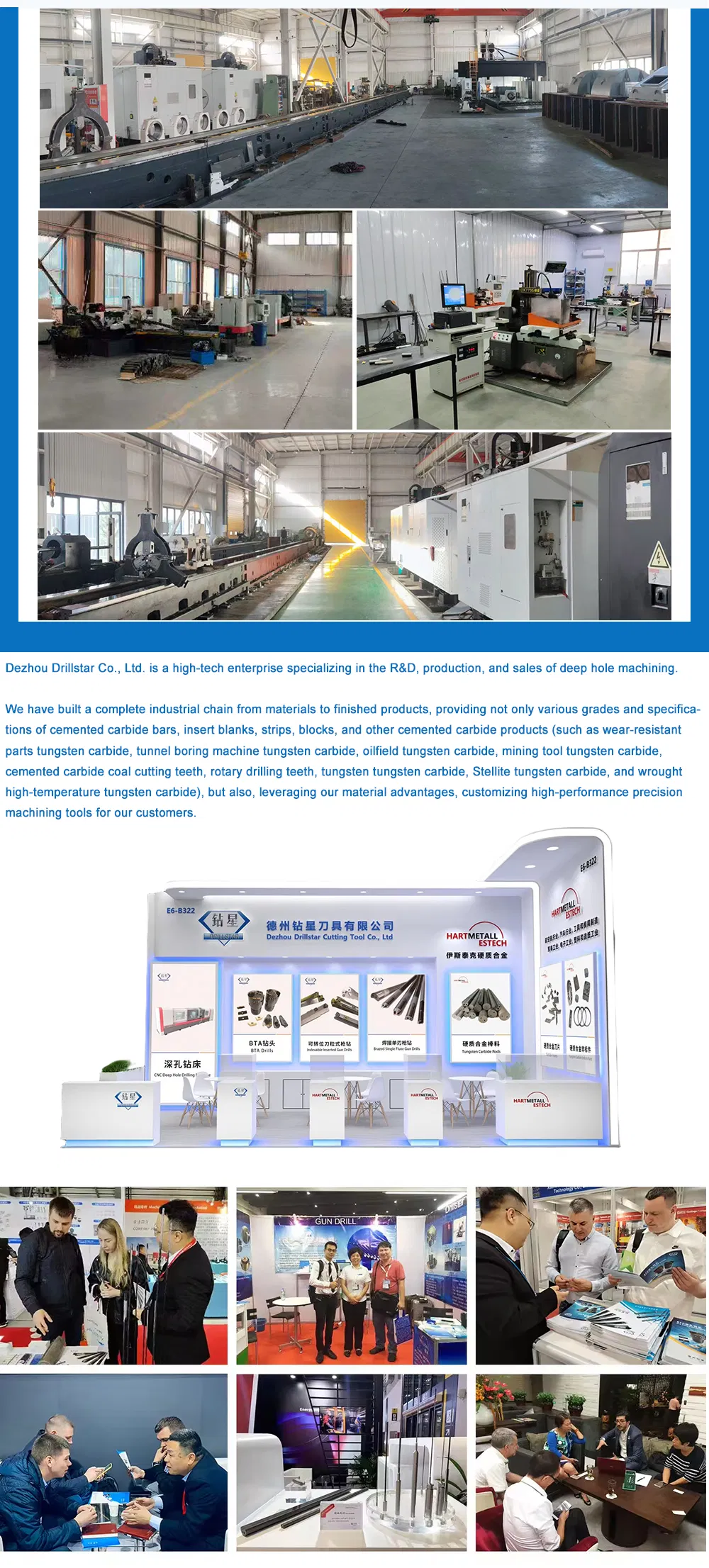

Company Profile

Packaging & Shipping

FAQ

Q1 What is the Warranty for the tungsten carbide products ?

We own high precision grading machine to control geometry dimensions and apply ultra fine grain size substrate coated with high performance coatings to guarantee the lifetime of our products, which can satisfy every working condition. If any quality problems on our side occurred in this period, we will take on the shipping cost and replacement.

Q2 Do you provide free samples?

Yes, usually we provide free samples for testing under the condition of freight paid by customer.

Q3 What is your minimum order requirement?

We will indicate the MOQ for each item in the quotation sheet. We accept the sample and trial order. If the quantity of single item can't reach the MOQ, the price should be sample price.

Q4 What is the delivery time of your products?

It depends on the inventory availability. If items needed are in stock, the delivery time would be within 8 work days, but if not the delivery time would be around 20 work days.

Q5 Can you manufacture carbide Special-shaped products?

Yes, we can. We can produce both standard end mills and special tools. We can make them according to your drawings and samples.

Q6 May I have my order working schedule ?

Yes, we will send working schedule of your order each week. We will inspect and test all merchandise in case of damaging and missing parts before shipment. The detailed inspection pictures of the order will be sent to you for your confirmation before delivery.
