| Model NO. | Customized |
| Length | Customized |
| Type | Gun Drill Bit |
| Material | Tungsten Carbide |
| Usage | Metal Drilling, Deep Hole Drilling |
| Trade Terms | CIF/ FOB/ EXW |
| Size | Various |
| Trial Order | Acceptable |
| Surface | Blank, Polished |
| Transport Package | in Cartons |
| Specification | Customized |
| Origin | China |
| Production Capacity | 10000000pieces/Year |

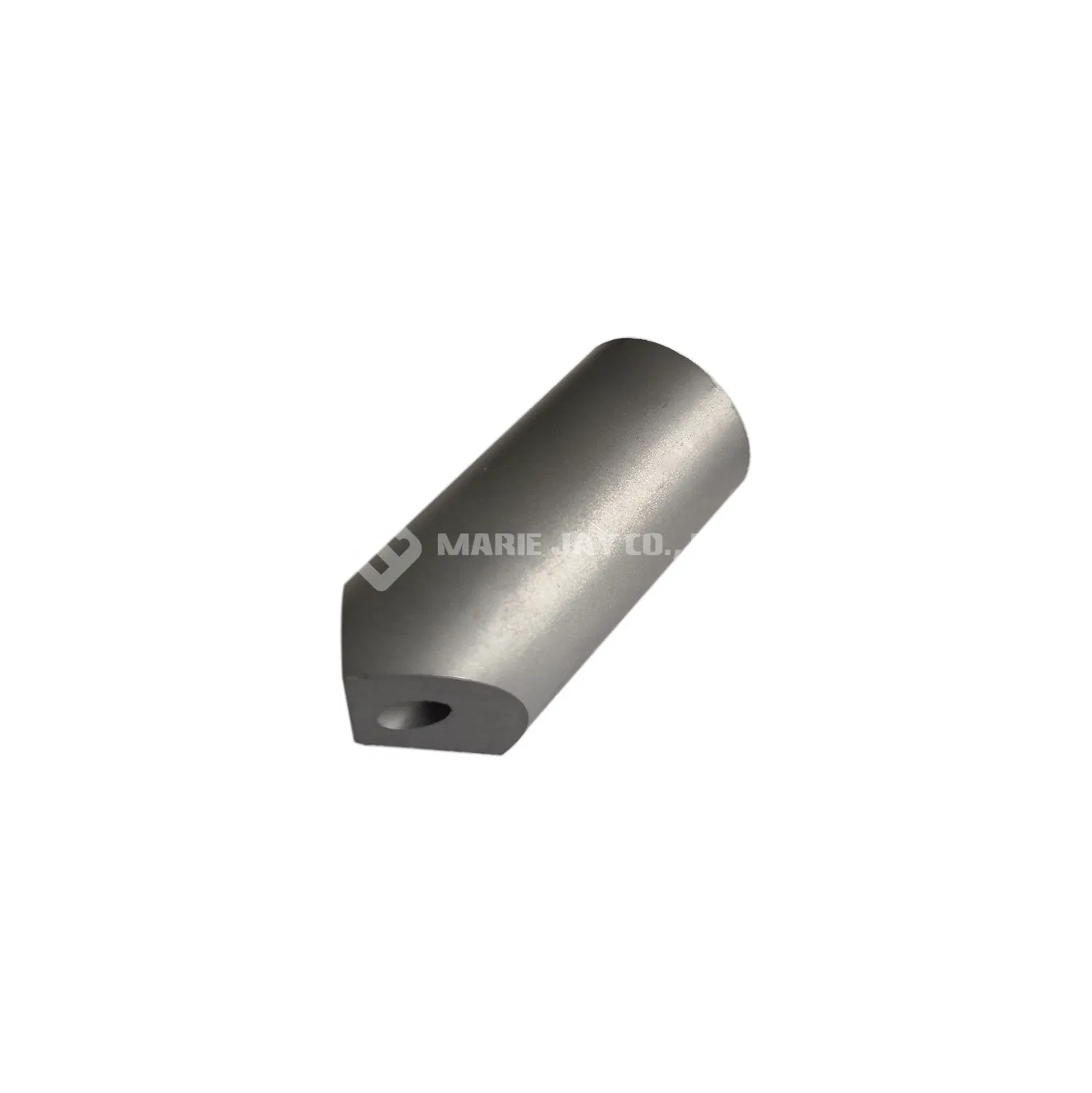

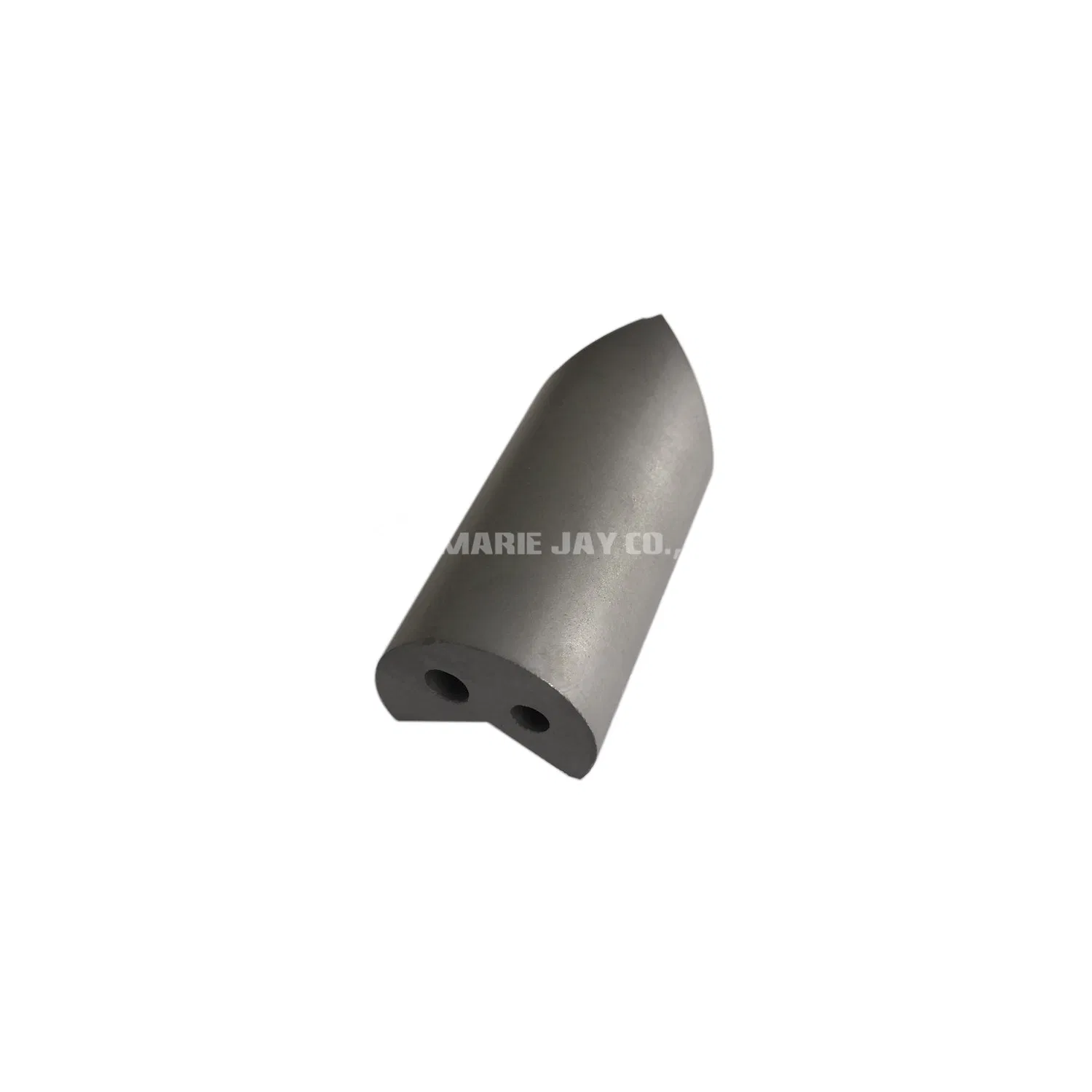

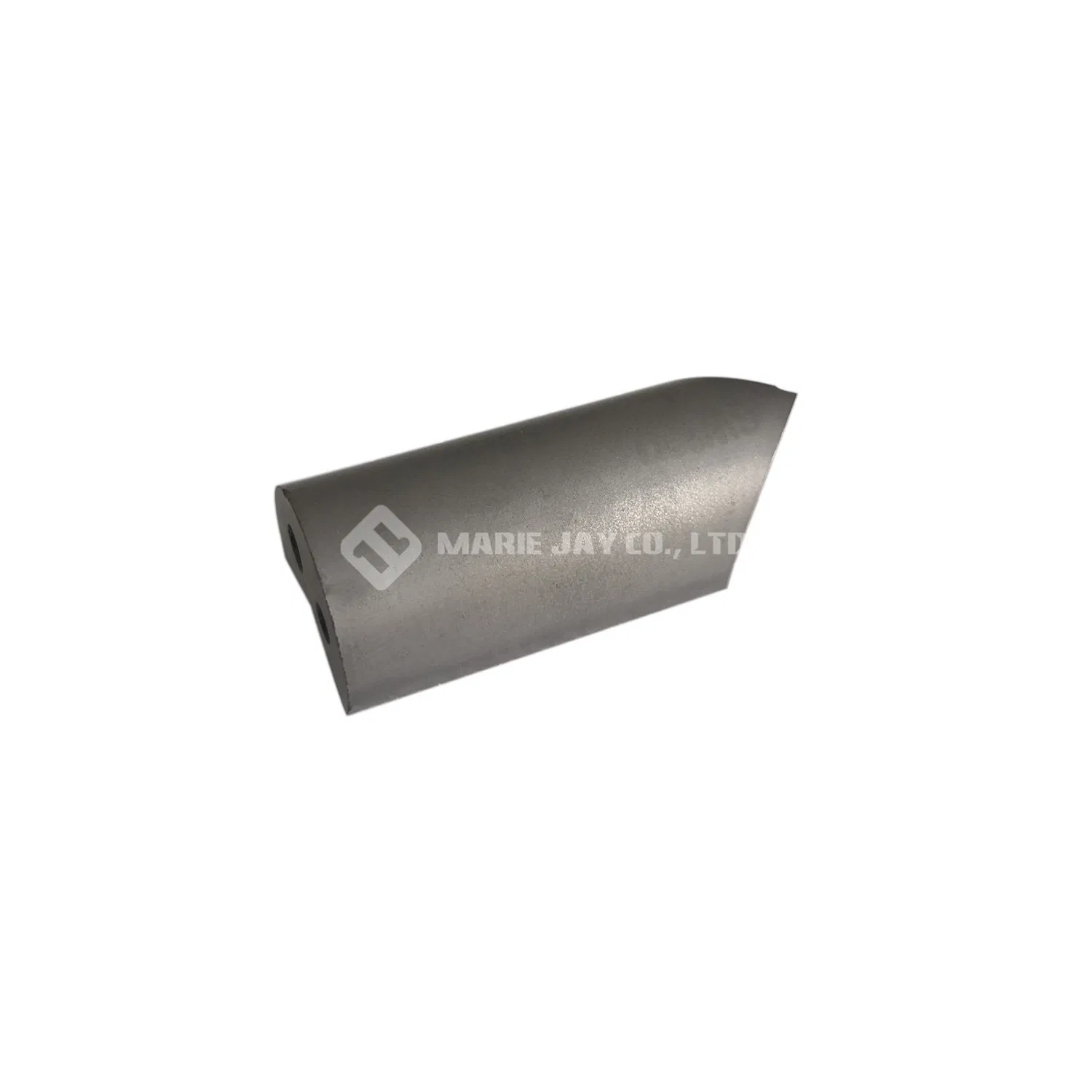

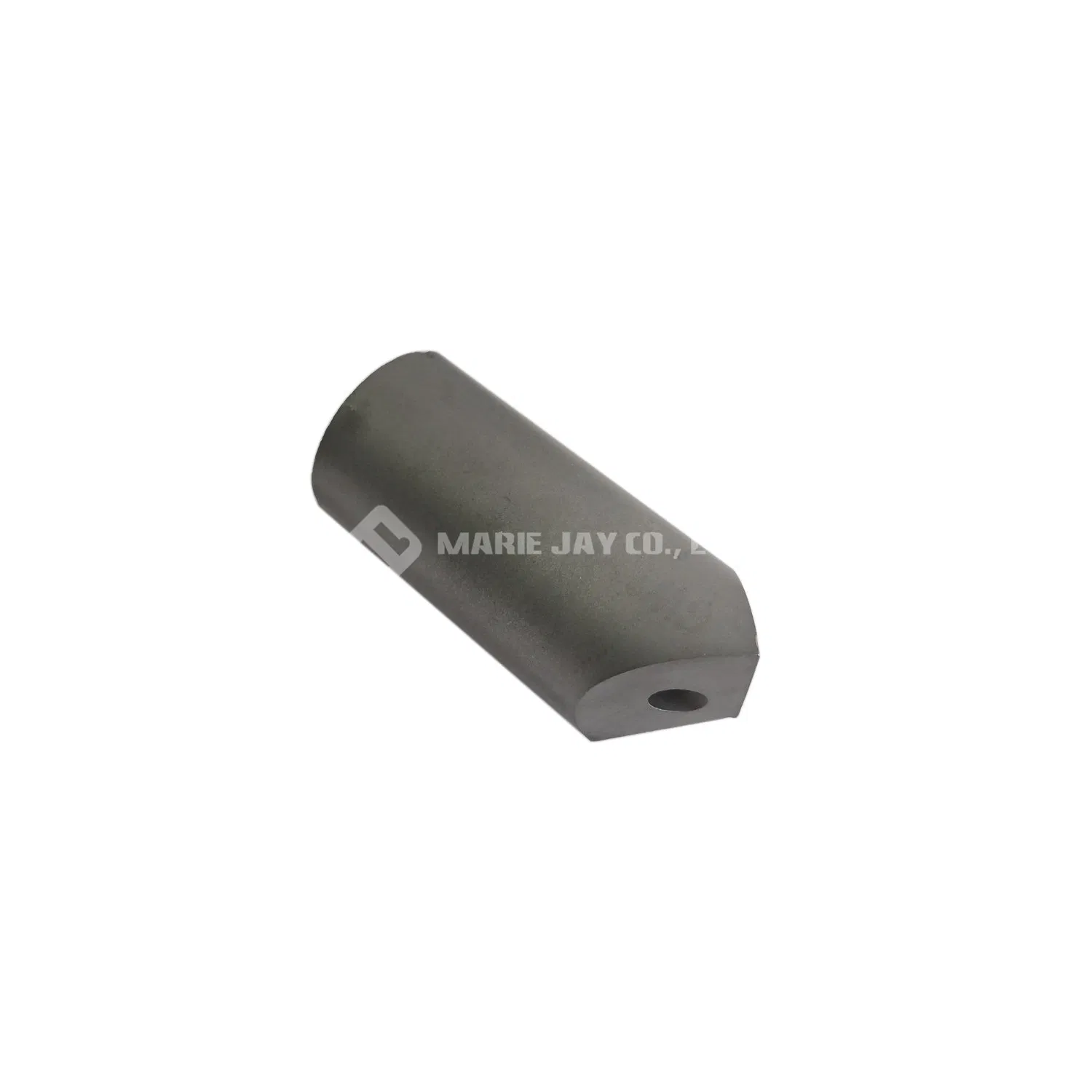

Gun drill is considered to be used when the hole depth with diameter range of 2.0~50mm up to or exceeds ten times the diameter, as the gun drill provides high hole precision, accurate hole position, excellent hole surface finishes, good straightness and concentricity. It can be easily applied to process various kinds of deep holes, and also an ideal solution for the special deep holes, such as cross-holes, blind holes and flat-bottomed blind holes etc.
| Type | L1 | L2 | X | M | Drill Dia. |
|---|---|---|---|---|---|
| Φ10*40 | 40 | 46 | 24.3 | - | 1.900-7.099 |
| Φ16*45 | 45 | 53 | 31 | - | 1.900-12.099 |
| Φ16*50 | 50 | 58 | 47.5 | - | 1.900-12.099 |
| Φ25*70 | 70 | 78 | 34 | - | 1.900-19.799 |
| Φ10*40 | 42 | 55 | 24.3 | - | 7.100-9.999 |
| Φ16*45 | 45 | 65 | 31 | - | 11.400-14.949 |
| Φ16*50 | 52 | 75 | 47.5 | - | 11.400-14.949 |
| Φ25*70 | 72 | 105 | 34 | - | 19.800-24.799 |
| Φ16*50 | 50 | 58 | 47.5 | - | 1.900-8.699 |
| Φ12.7*38.1 | 38.1 | - | 25.4 | - | 1.900-8.299 |
| Φ19.05*69.8 | 69.8 | - | 44.4 | - | 1.900-14.949 |
| Φ25.4*69.8 | 69.8 | - | 57.1 | - | 1.900-19.799 |
| Φ31.57*69.8 | 69.8 | - | 57.1 | - | 1.900-25.999 |
| Φ38.1*69.8 | 69.8 | - | 57.1 | - | 1.900-32.999 |
| Φ12.7*38.1 | 38.1 | 58 | 25.4 | - | 8.300-12.499 |
| Φ19.05*69.8 | 69.8 | 100 | 44.4 | - | 14.95-18.799 |
| Φ25.4*69.8 | 69.8 | 105 | 57.1 | - | 19.8-24.799 |
| Φ31.75*69.8 | 69.8 | 100 | 57.1 | - | 26.0-30.999 |
| Φ38.1*69.8 | 69.8 | 100 | 57.1 | - | 33.0-40.0 |
| Φ10*68 | 68 | - | 35 | M6*0.5 | 1.9-6.799 |
| Φ16*90 | 90 | - | 37 | M10*1 | 1.9-12.099 |
| Φ25*112 | 112 | - | 45 | M16*1.5 | 1.9-19.799 |
| Φ10*68 | 68 | 81 | 35 | M6*0.5 | 6.8-9.999 |
| Φ16*90 | 90 | 110 | 37 | M10*1 | 11.4-14.949 |
| Φ25*112 | 112 | 142 | 45 | M16*1.5 | 19.8-24.799 |
| ... | ... | ... | ... | ... | ... |
We mainly choose the following delivery ways: Shipment by Express / by Air / by Sea
We can arrange shipment according to our customers' requests. If there is any problem related to the shipping, please feel free to contact us.
Products we supply and make are:

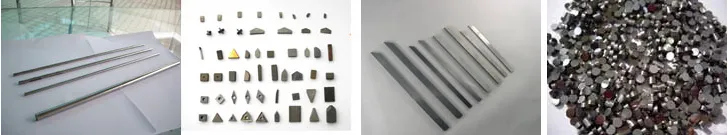

Carbide Rods, Carbide Bars, Carbide Strips, Carbide Plates, STB Carbide Blanks, Drawing Dies, Cold Forging Dies, Carbide Disc Cutters, Carbide Inserts, Carbide Shims, Carbide Burrs and Carbide Burr Blanks, Carbide Mining Bits, Carbide Drilling Bits, Carbide Cutting Tools for Wood and Bamboos, Tile Cutter Wheels, Scriber Tips, Customized Carbide Products etc.

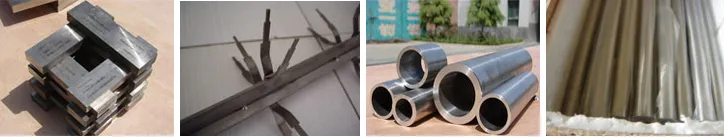

Titanium Rods, Titanium Tubes, Titanium Pipe Fittings, Titanium Plates, Titanium Sheets, Titanium Foils, Titanium Wires, Titanium Nuts and Bolts, Titanium Brazing and Casting, Customized Titanium Products etc.
A gun drill is typically used when the hole depth exceeds ten times the hole diameter, especially within the diameter range of 2.0mm to 50mm. It delivers excellent precision, correct alignment, and smooth surface finishes.
Our gun drill bits can easily process special and complex deep holes, including cross-holes, blind holes, and flat-bottomed blind holes.
The drill tips are manufactured using high-grade Tungsten Carbide to ensure superior wear resistance and durability during heavy-duty metal drilling operations.
We support shipping by Express, Air, and Sea. Delivery plans are customized and arranged entirely according to our customers' requests.
Every product undergoes comprehensive testing and inspection after manufacturing. Upon request, we provide full dimension inspection certificates as well as sample dimensional verifications.
Yes, we provide fully customized specifications, including length, size, and model options to match your specific deep hole drilling machines and application setups.
