Industrial Grade Tungsten Carbide Gun Drill Rod for Metalworking Machinery

1 / 5

Industrial Grade Tungsten Carbide Gun Drill Rod for Metalworking Machinery

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview

Product Overview

Key Features & Benefits

Application

Technical Specifications

Why Choose Us

Basic Info

StandardISO

CustomizedCustomized

MaterialAlloy

ApplicationMetal Cutting Machine, Metal Processing Machinery Parts

Product NameTungsten Carbide Hole Drilling Deep Hole Drill Gun

Other NameGun Drill

Key WordsGun Drill, Deep Hole Drill

Applicationfor Deep Hole Drilling

Diameter4~32mm

Lengthto 2500mm

SurfaceCoated or Without Coating

Transport Packagein Plastic Tube

Specificationcustomized

OriginChina

Production Capacity2000 PCE/Month

Product Overview

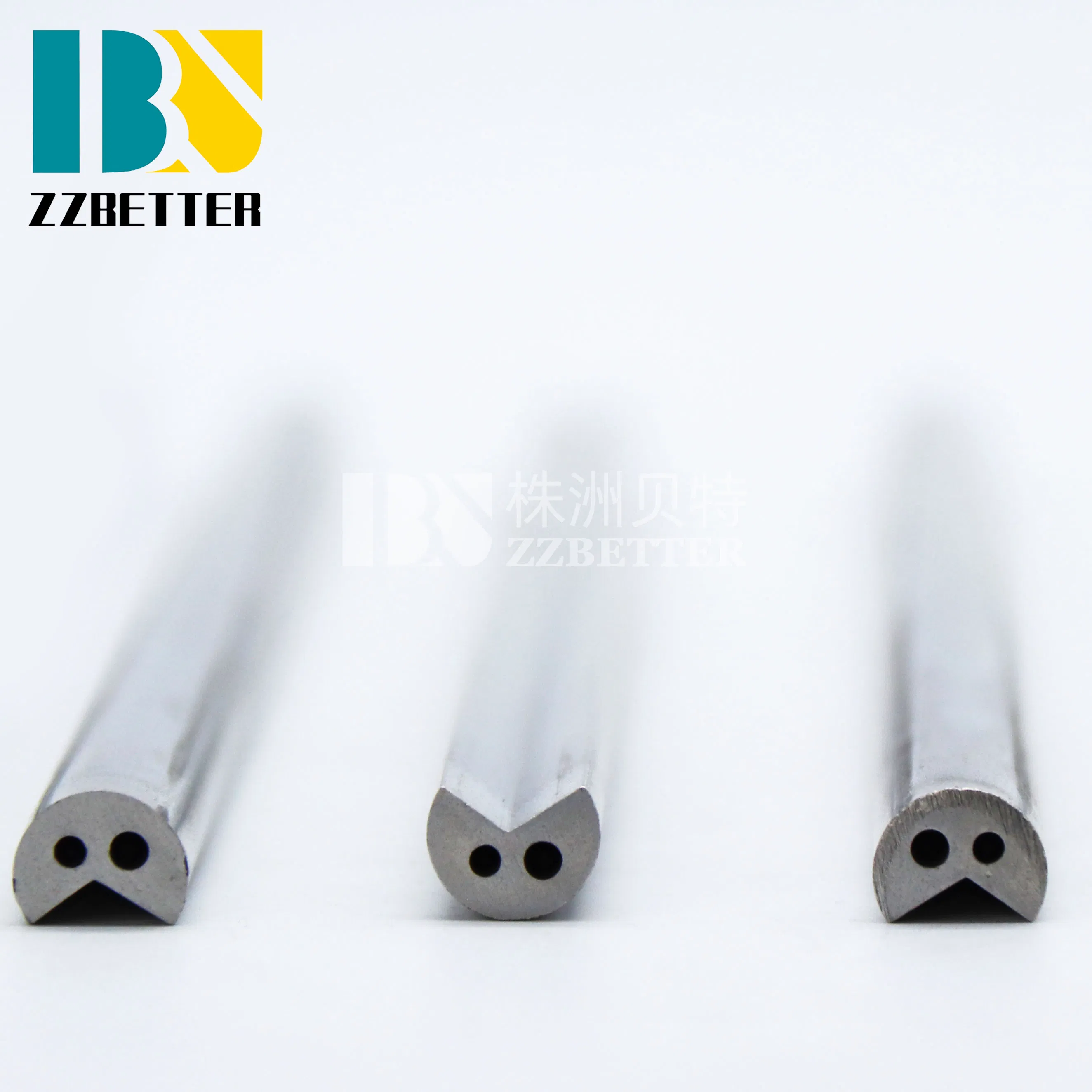

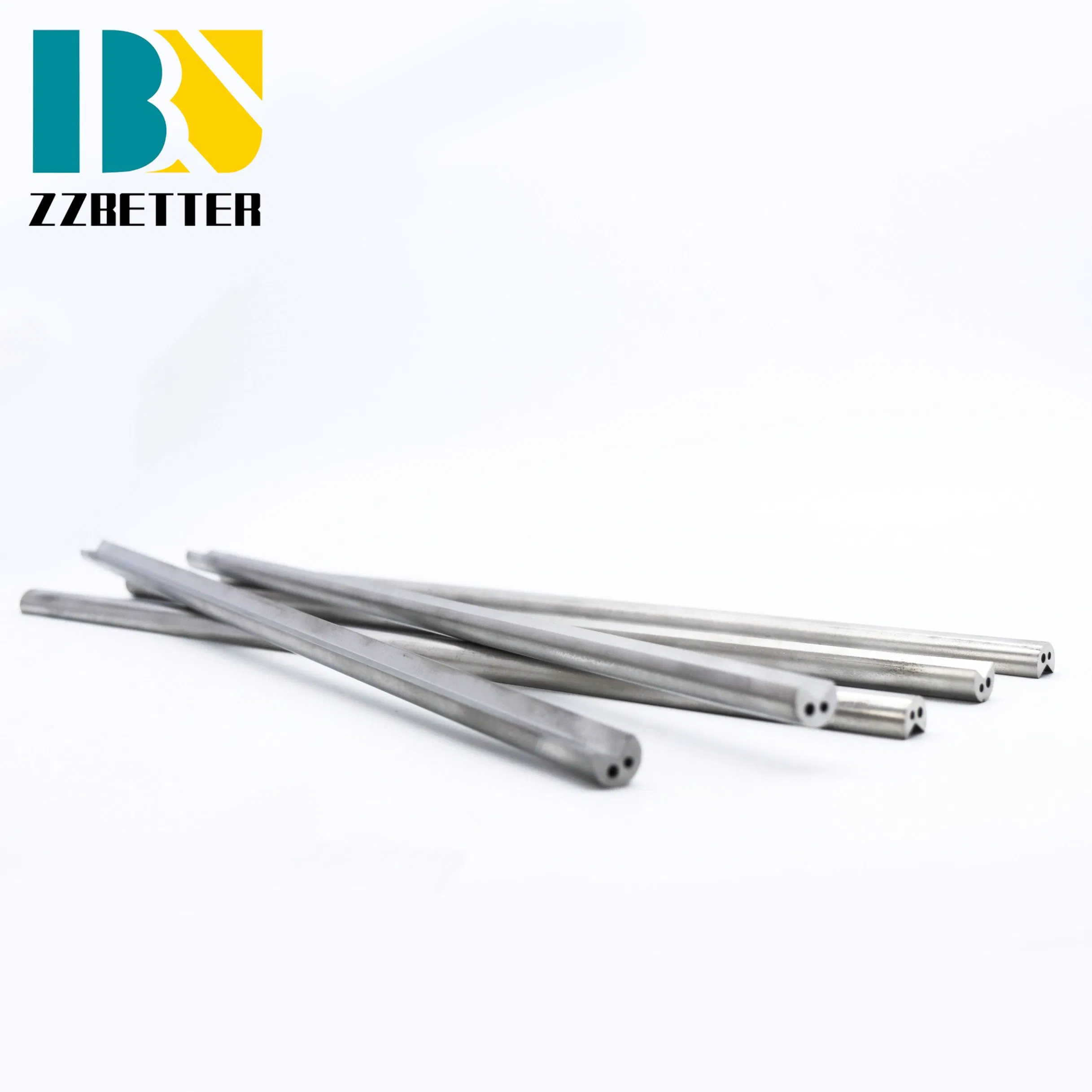

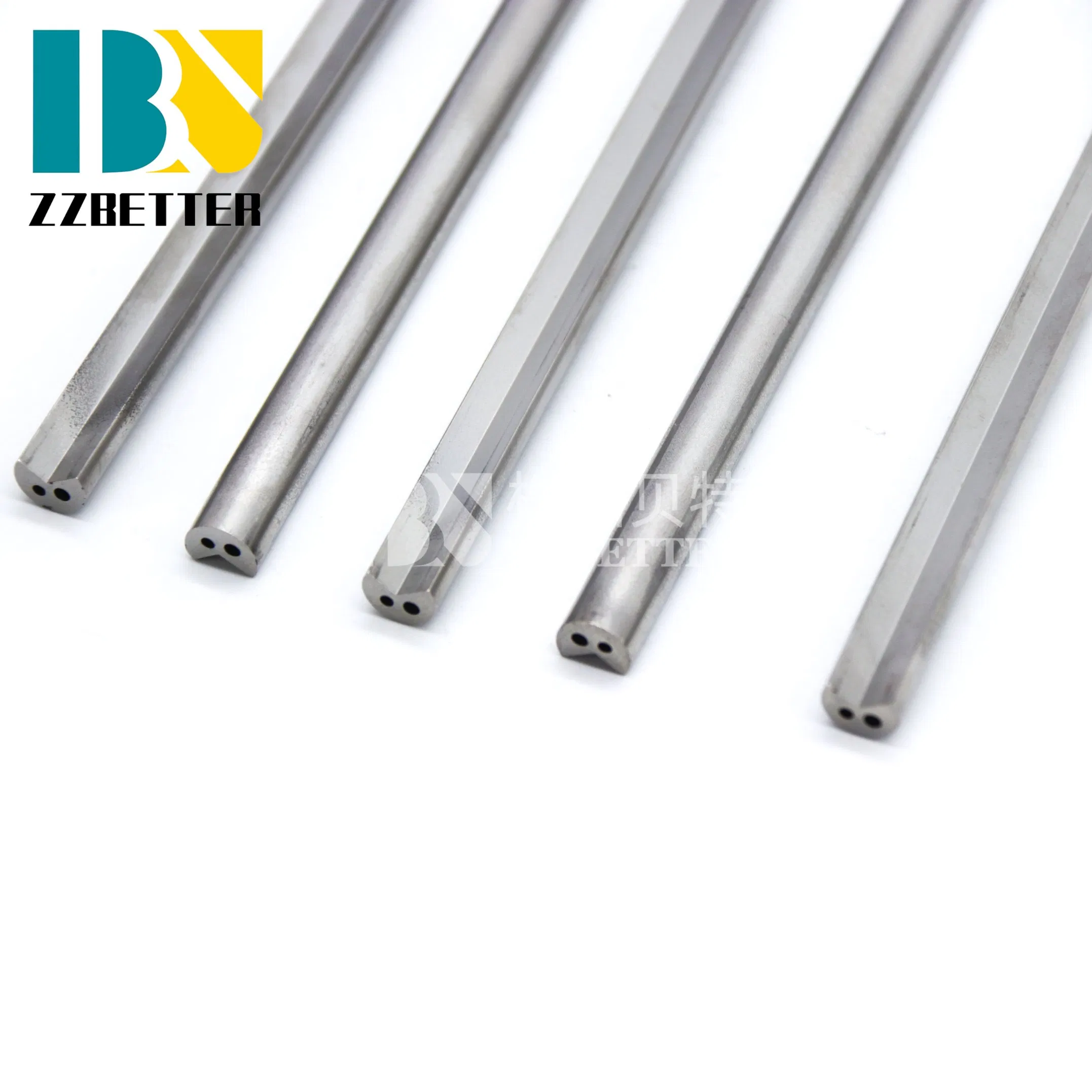

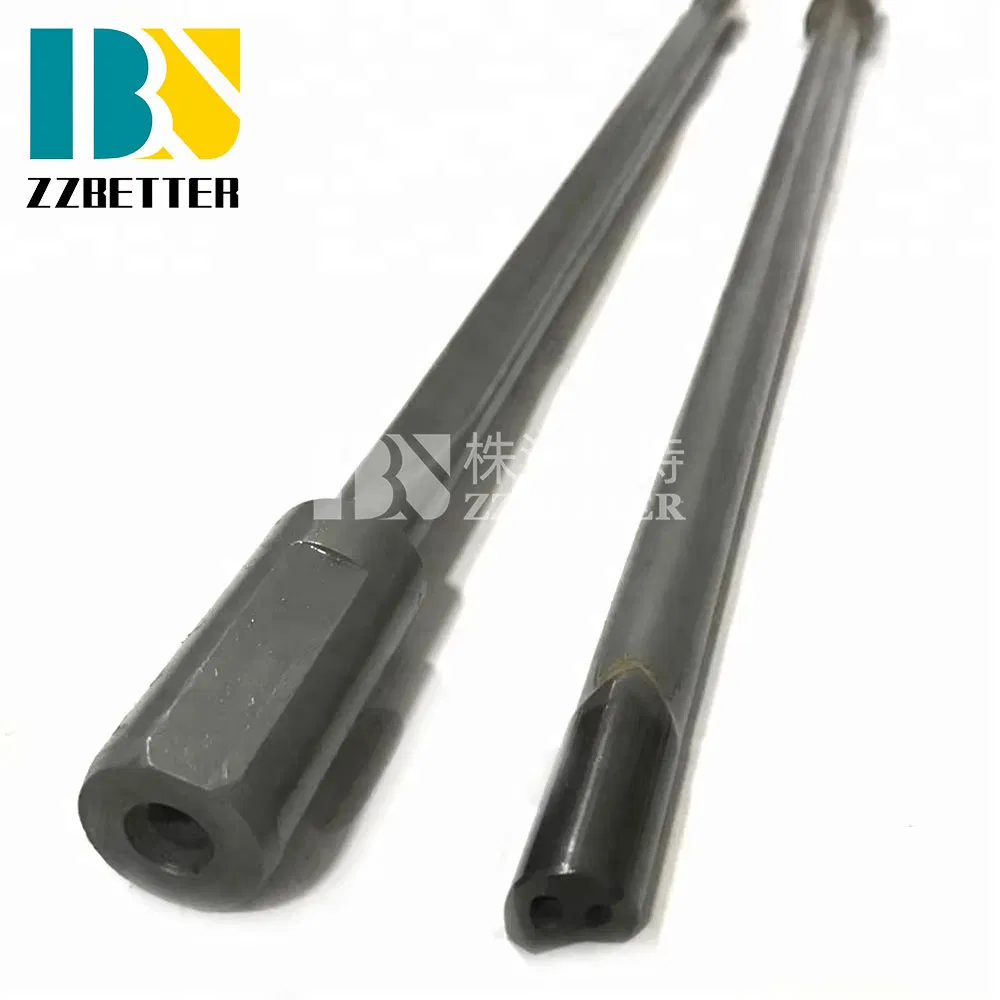

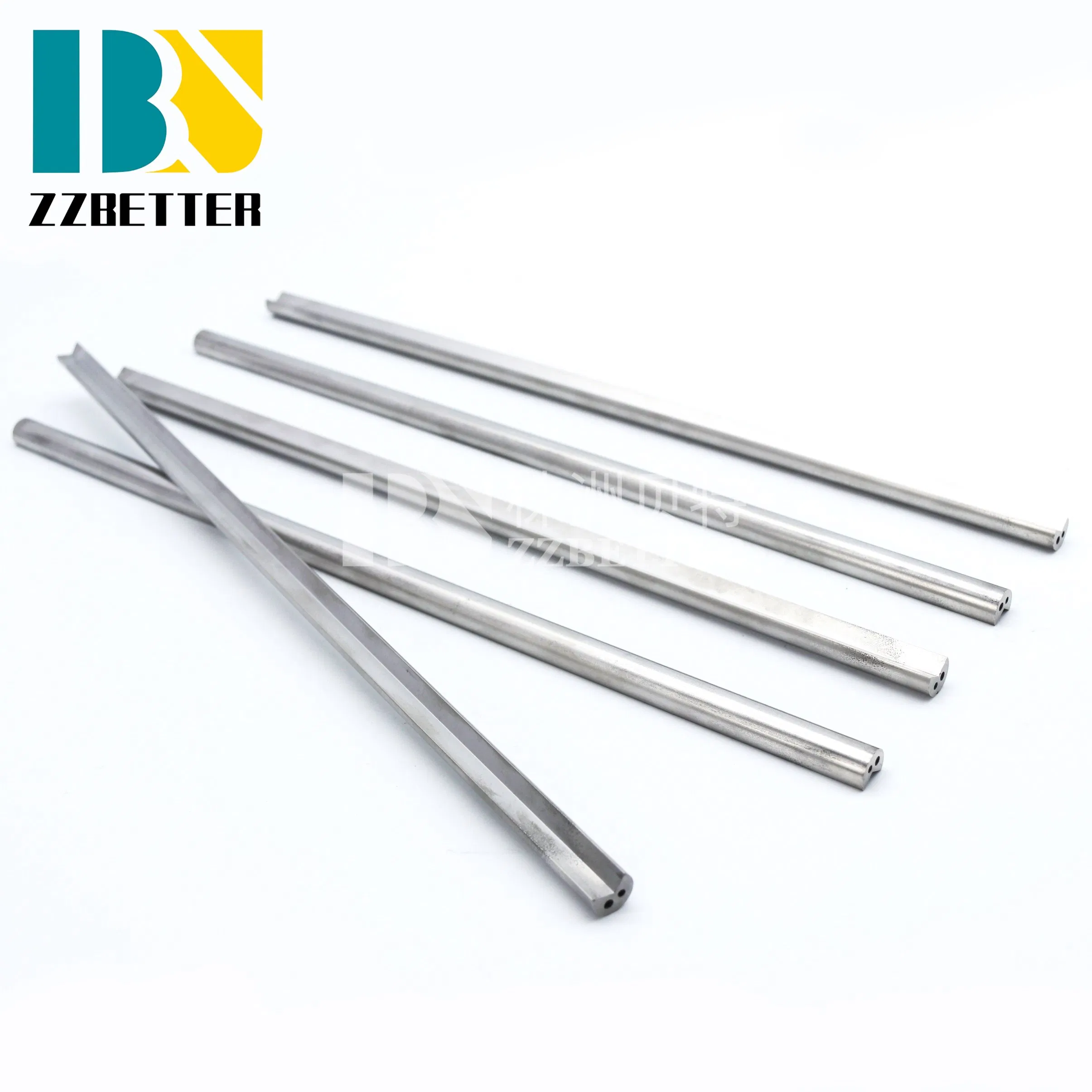

Our Tungsten Carbide Gun Drill Rod is engineered for high-speed, deep-hole drilling in the toughest materials, including stainless steel, titanium, Inconel, hardened steel, and aerospace alloys. Designed for CNC machines, gun drilling systems, and precision machining, this drill rod delivers exceptional wear resistance, rigidity, and thermal stability, ensuring longer tool life and superior hole accuracy.

Key Features & Benefits

Ultra-Hard Tungsten Carbide (90-94 HRA) - Outperforms HSS and cobalt drills in hardness & durability.
High-Speed Deep Hole Drilling - Optimized for L/D ratios up to 100:1+ with minimal deflection.
Exceptional Wear & Heat Resistance - Reduces tool wear, even in high-temperature machining.
Precision-Ground Surface - Ensures straighter holes, tighter tolerances (±0.005mm), and superior surface finish.
Corrosion & Chemical Resistant - Ideal for coolant-heavy & harsh machining environments.
Compatible with Gun Drilling Machines - Works with BTA, ejector, and single-lip drilling systems.

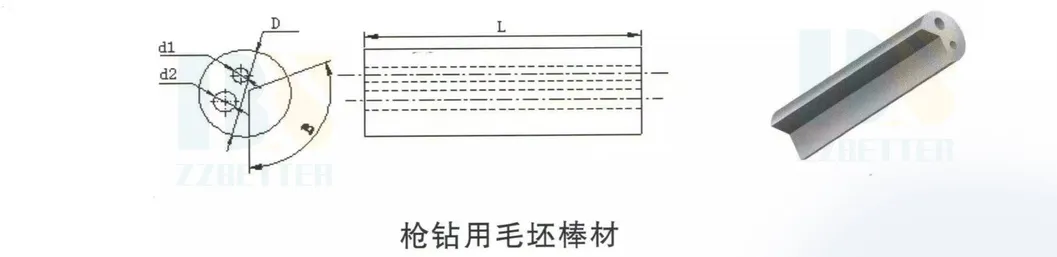

Gun drill Materials Series -I

Type	D Tol.of D	b1 Tol. of b1	b2 Tol. of b2	L Tol. of L
Type	mm	mm	mm	mm
BФ8.0Ф1.8Ф1.5*340	+0.45/+0.70	-0.15/+0.15	-0.15/+0.15	0/+6
BФ8.5Ф1.9Ф1.5*340	+0.35/+0.60	-0.15/+0.15	-0.15/+0.15	0/+6
BФ9.0Ф2.1Ф1.65*340	+0.45/+0.70	-0.15/+0.15	-0.15/+0.15	0/+6
BФ9.5Ф2.1Ф1.65*340	+0.35/+0.60	-0.15/+0.15	-0.15/+0.15	0/+6
BФ10.0Ф2.3Ф1.9*340	+0.45/+0.70	-0.20/+0.20	-0.20/+0.20	0/+6
BФ10.5Ф2.3Ф1.9*340	+0.35/+0.65	-0.20/+0.20	-0.20/+0.20	0/+6
BФ11.0Ф2.4Ф2.0*340	+0.45/+0.75	-0.20/+0.20	-0.20/+0.20	0/+6
BФ11.5Ф2.4Ф2.0*340	+0.35/+0.65	-0.20/+0.20	-0.20/+0.20	0/+6
BФ12.0Ф2.5Ф2.2*340	+0.45/+0.75	-0.20/+0.20	-0.20/+0.20	0/+6
BФ12.5Ф2.5Ф2.2*340	+0.35/+0.65	-0.20/+0.20	-0.20/+0.20	0/+6
BФ13.0Ф3.2Ф2.6*340	+0.45/+0.80	-0.20/+0.20	-0.20/+0.20	0/+6
BФ14.0Ф3.5Ф2.8*340	+0.45/+0.80	-0.25/+0.25	-0.25/+0.25	0/+6
BФ14.5Ф3.5Ф2.8*340	+0.35/+0.70	-0.25/+0.25	-0.25/+0.25	0/+6
BФ15.0Ф3.8Ф3.0*340	+0.45/+0.80	-0.25/+0.25	-0.25/+0.25	0/+6
BФ15.5Ф3.8Ф3.0*340	+0.35/+0.70	-0.25/+0.25	-0.25/+0.25	0/+6
BФ16.0Ф4.0Ф3.2*340	+0.45/+0.80	-0.25/+0.25	-0.25/+0.25	0/+6

Gun drill Materials Series -II

Type	D Tol.of D	b1 Tol. of b1	b2 Tol. of b2	L Tol. of L
Type	mm	mm	mm	mm
BФ8.0Ф1.8Ф1.5*35	+0.45/+0.70	-0.15/+0.15	-0.15/+0.15	0/+3
BФ8.5Ф1.9Ф1.5*35	+0.35/+0.60	-0.15/+0.15	-0.15/+0.15	0/+3
BФ9.0Ф2.1Ф1.65*35	+0.45/+0.70	-0.15/+0.15	-0.15/+0.15	0/+3
BФ9.5Ф2.1Ф1.65*35	+0.35/+0.60	-0.15/+0.15	-0.15/+0.15	0/+3
BФ10.0Ф2.3Ф1.9*40	+0.45/+0.70	-0.20/+0.20	-0.20/+0.20	0/+3
BФ10.5Ф2.3Ф1.9*40	+0.35/+0.65	-0.20/+0.20	-0.20/+0.20	0/+3
BФ11.0Ф2.4Ф2.0*40	+0.45/+0.75	-0.20/+0.20	-0.20/+0.20	0/+3
BФ11.5Ф2.4Ф2.0*40	+0.35/+0.65	-0.20/+0.20	-0.20/+0.20	0/+3
BФ12.0Ф2.5Ф2.2*40	+0.45/+0.75	-0.20/+0.20	-0.20/+0.20	0/+3
BФ12.5Ф2.5Ф2.2*40	+0.35/+0.65	-0.20/+0.20	-0.20/+0.20	0/+3
BФ13.0Ф3.2Ф2.6*40	+0.45/+0.80	-0.20/+0.20	-0.20/+0.20	0/+3
BФ13.5Ф3.2Ф2.6*40	+0.35/+0.70	-0.20/+0.20	-0.20/+0.20	0/+3
BФ14.0Ф3.5Ф2.8*40	+0.45/+0.80	-0.25/+0.25	-0.25/+0.25	0/+3
BФ14.5Ф3.5Ф2.8*40	+0.35/+0.70	-0.25/+0.25	-0.25/+0.25	0/+3
BФ15.0Ф3.8Ф3.0*40	+0.45/+0.80	-0.25/+0.25	-0.25/+0.25	0/+3
BФ15.5Ф3.8Ф3.0*40	+0.35/+0.70	-0.25/+0.25	-0.25/+0.25	0/+3

Application Areas

Aerospace (turbine blades, landing gear, fuel systems)
Oil & Gas (deep-well drilling, valve components)
Automotive (fuel injectors, transmission shafts)
Medical (surgical implants, precision instruments)
Defense (barrel drilling, armor-piercing applications)
Mold & Die Making (coolant channels, complex geometries)

Technical Specifications

Material

Premium Tungsten Carbide (WC-Co)

Hardness

90-94 HRA (Rockwell Scale)

Density

14-15 g/cm³

Thermal Conductivity

High (reduces heat buildup)

Surface Finish

Mirror-polished (Ra ≤ 0.2μm)

Standard Sizes

Ø3mm-Ø30mm

Length Options

300 mm - 1500 mm

Why Choose Us

10x Longer Lifespan vs. HSS or cobalt drill rods
Reduced Machining Time - Higher feed rates & speeds
Minimal Runout & Vibration - Ensures precision hole straightness
Cost-Efficient - Fewer tool changes, lower downtime
ISO 9001 Certified - Quality guaranteed

Frequently Asked Questions (FAQ)

QWhat is a Tungsten Carbide Gun Drill Rod?

It is a high-precision, ultra-hard tool component engineered specifically for deep-hole drilling (L/D ratios up to 100:1+) in tough materials, offering extreme wear resistance and thermal stability.

QWhat diameters and lengths are available?

We offer standard diameters ranging from 3mm to 30mm, and lengths from 300mm to 1500mm. Customized dimensions can also be manufactured according to your requirements.

QWhich materials are these gun drill rods suitable for?

They perform exceptionally well in high-speed drilling of difficult-to-machine materials, including stainless steel, titanium, Inconel, aerospace alloys, and hardened steel.

QWhat are the advantages of carbide over high-speed steel (HSS)?

Tungsten Carbide gun drills provide up to a 10x longer tool life compared to HSS or cobalt. They allow for much higher speeds, feed rates, and maintain rigidity to prevent hole deviation.

QWhat surface treatment options do you provide?

The drill rods are manufactured with a precision-ground, mirror-polished surface finish (Ra ≤ 0.2μm). They can be provided either coated or uncoated based on application specifics.

QAre these compatible with standard gun drilling systems?

Yes, our gun drill rods are fully compatible with BTA, ejector systems, single-lip drilling machines, and modern CNC machining stations.
