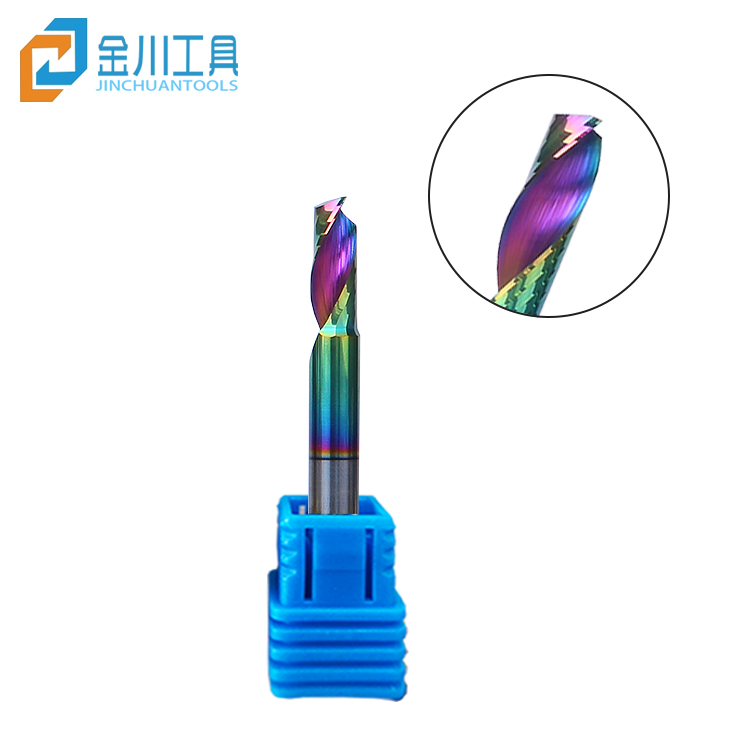

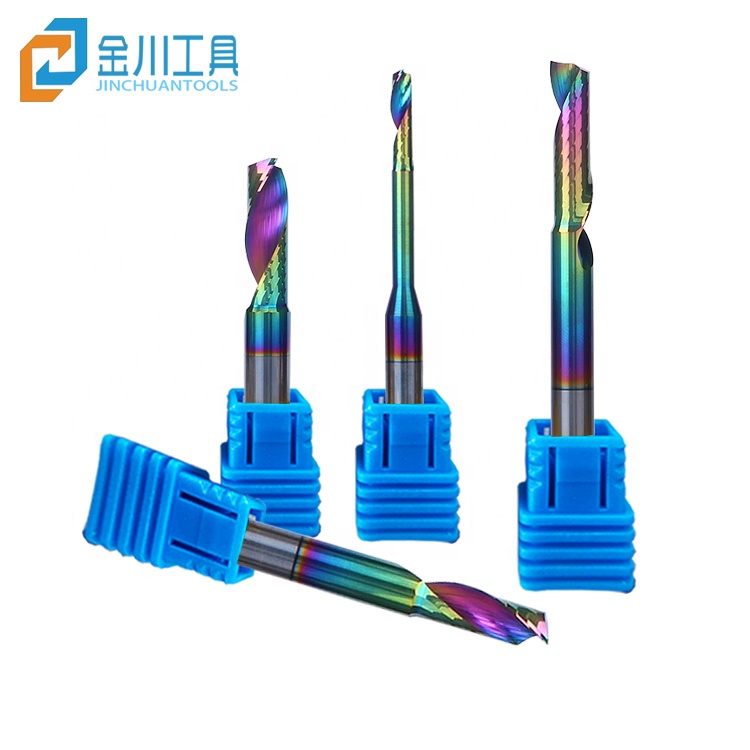

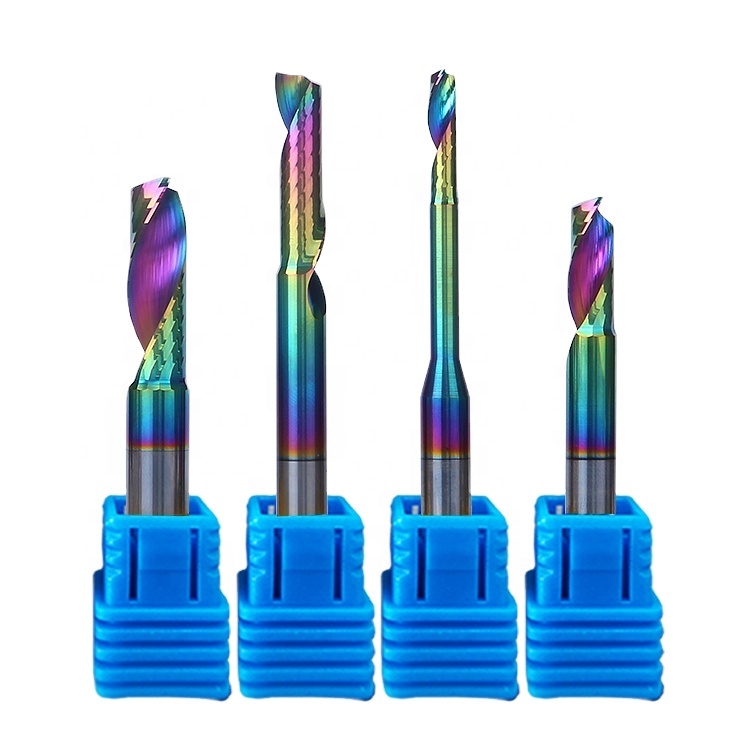

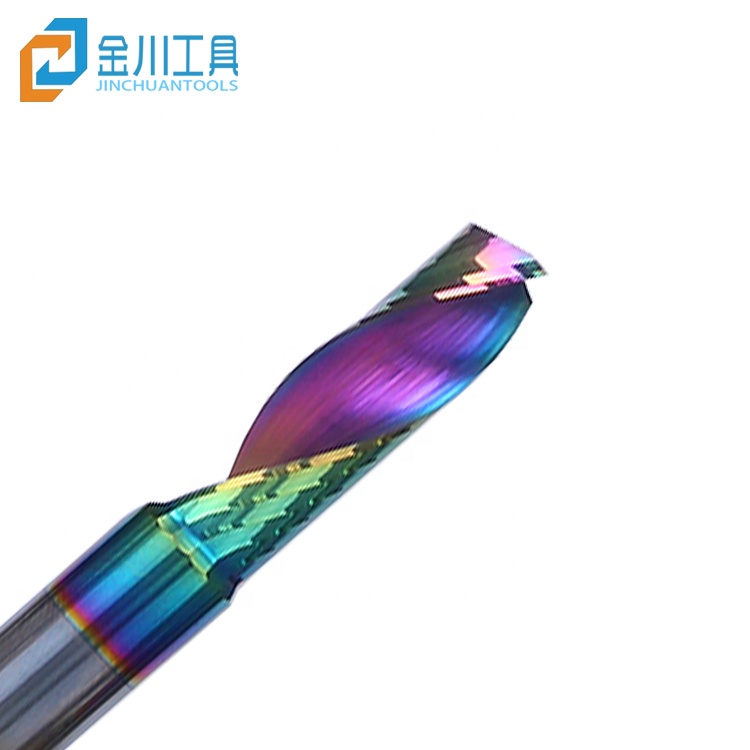

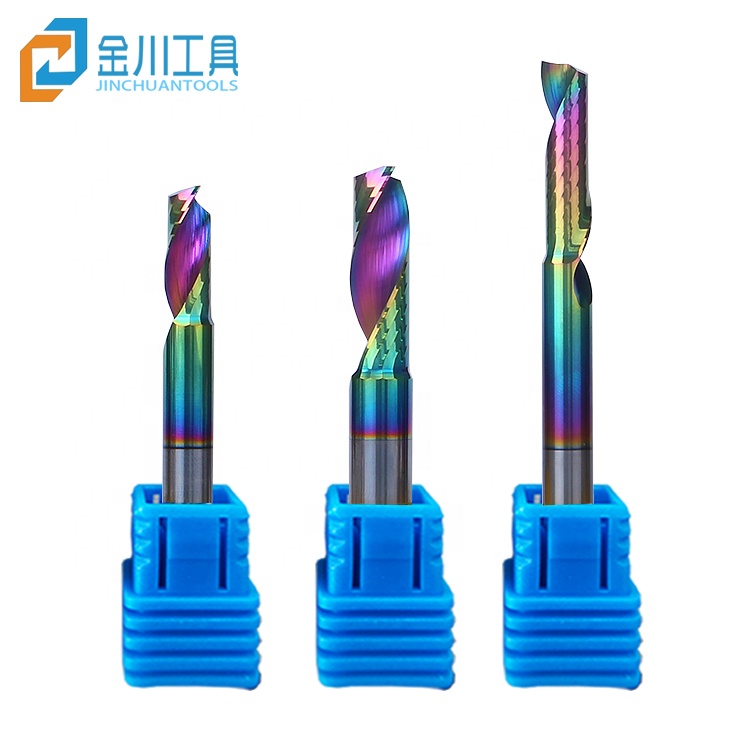

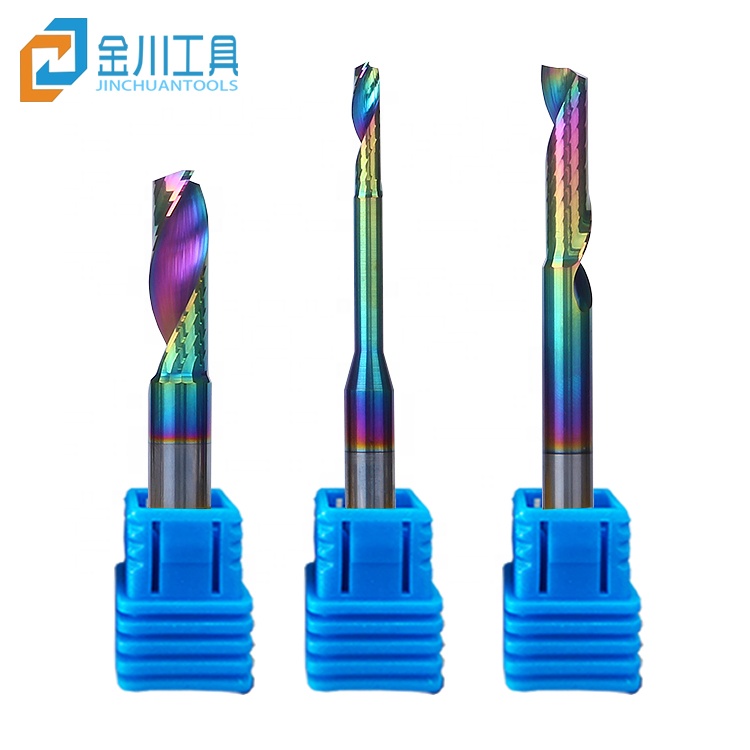

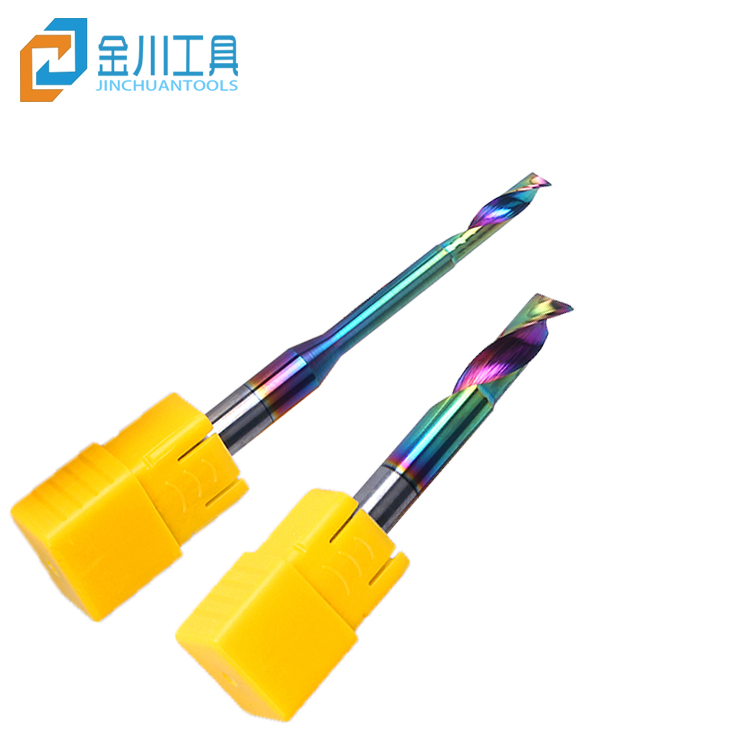

| Product Name | coated Profiling milling cutter for single edge aluminum |
|---|---|
| Material | Tungsten Carbide |
| Size | D8-D10 |
| Overall Length | 60mm/80mm/100mm/120mm |
| Apply for | Aluminum profile, aluminum alloy doors and windows, aluminum plastic doors and windows, aluminum alloy curtain wall, etc |
| Applicable equipment | CNC, CNC milling machine, engraving machine |
| OEM | Supported |

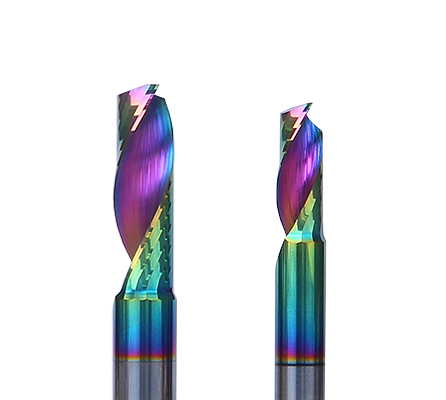

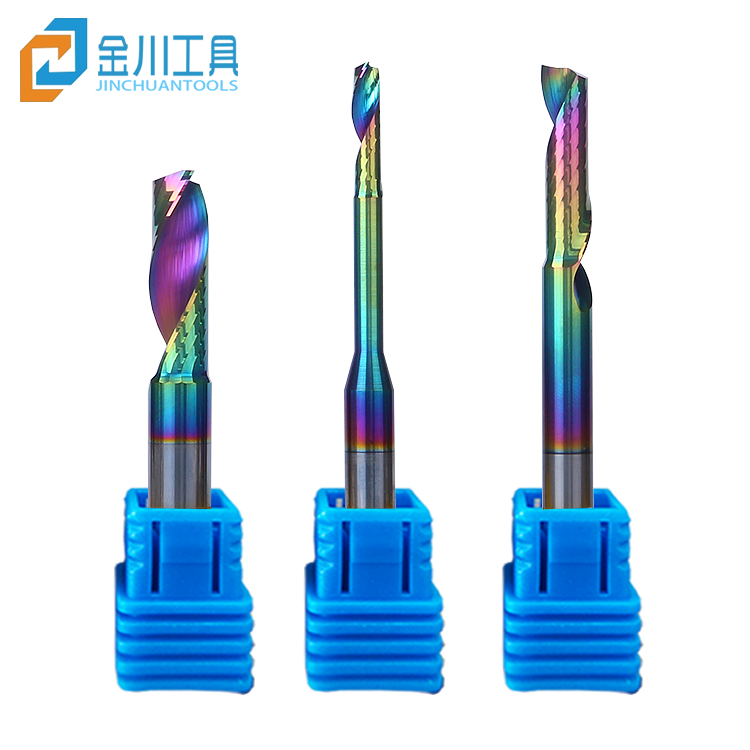

Blade belt: double blade belt design is adopted to determine a more wear-resistant edge. It adopts a blade design suitable for high-speed cutting, with a 2-blade edge and excellent chip removal!

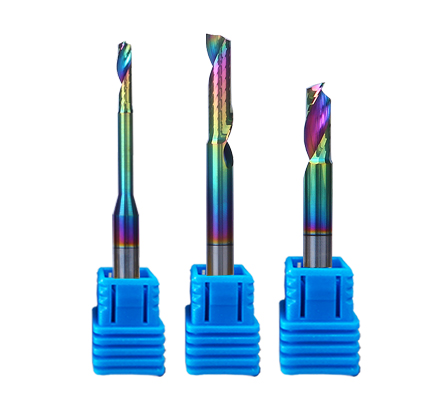

High capacity chip removal with strong cutting, smooth cutting discharge, can achieve high efficiency machining.
Perfect chamfering, easy and fast installation chuck, high gloss knife body import essential features.

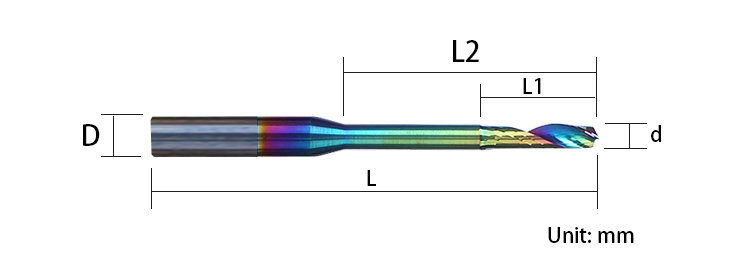

| Item No. | Specifications | Shank (D) | Diameter (d) | Cutting Length (L1) | Effective length (L2) | Overall length (L) |
|---|---|---|---|---|---|---|
| JCTCFXDLLYXD001 | 8*4*12*60 | 8 | 4 | 12 | - | 60 |
| JCTCFXDLLYXD002 | 8*5*14*60 | 8 | 5 | 14 | - | 60 |
| JCTCFXDLLYXD003 | 8*6*14*60 | 8 | 6 | 14 | - | 60 |
| JCTCFXDLLYXD004 | 8*7*14*60 | 8 | 7 | 14 | - | 60 |
| JCTCFXDLLYXD005 | 8*4*14（35）*80 | 8 | 4 | 14 | 35 | 80 |
| JCTCFXDLLYXD006 | 8*5*14（35）*80 | 8 | 5 | 14 | 35 | 80 |
| JCTCFXDLLYXD007 | 8*6*14（35）*80 | 8 | 6 | 14 | 35 | 80 |
| JCTCFXDLLYXD008 | 8*7*14（35）*80 | 8 | 7 | 14 | 35 | 80 |
| JCTCFXDLLYXD009 | 8*8*14*80 | 8 | 8 | 14 | - | 80 |
| JCTCFXDLLYXD0010 | 8*8*20*80 | 8 | 8 | 20 | - | 80 |
| JCTCFXDLLYXD0011 | 8*5*16（45）*100 | 8 | 5 | 16 | 45 | 100 |
| JCTCFXDLLYXD0012 | 8*6*16（45）*100 | 8 | 6 | 16 | 45 | 100 |
| JCTCFXDLLYXD0013 | 8*8*16*100 | 8 | 8 | 16 | - | 100 |
| JCTCFXDLLYXD0014 | 8*8*30*100 | 8 | 8 | 30 | - | 100 |
| JCTCFXDLLYXD0015 | 8*8*30（55）*100 | 8 | 8 | 30 | 55 | 100 |
| JCTCFXDLLYXD0016 | 8*8*30*120 | 8 | 8 | 30 | - | 120 |
| JCTCFXDLLYXD0017 | 8*5*20（45)*100 | 8 | 5 | 20 | 45 | 100 |
| JCTCFXDLLYXD0018 | 8*6*20（45)*100 | 8 | 6 | 20 | 45 | 100 |
| JCTCFXDLLYXD0019 | 10*10*16*80 | 10 | 10 | 16 | - | 80 |
| JCTCFXDLLYXD0020 | 10*10*32*80 | 10 | 10 | 32 | - | 80 |
| JCTCFXDLLYXD0021 | 10*10*30*100 | 10 | 10 | 30 | - | 100 |
| JCTCFXDLLYXD0022 | 10*10*30*120 | 10 | 10 | 30 | - | 120 |
| JCTCFXDLLYXD0023 | 10*10*40*120 | 10 | 10 | 40 | - | 120 |
Special milling cutter for aluminum profile, aluminum alloy and aluminum doors and windows
It has good anti rust ability and acid resistance, taking into account the strength and sharpness of the knife edge
Effectively improve the seismic effect and wear resistance

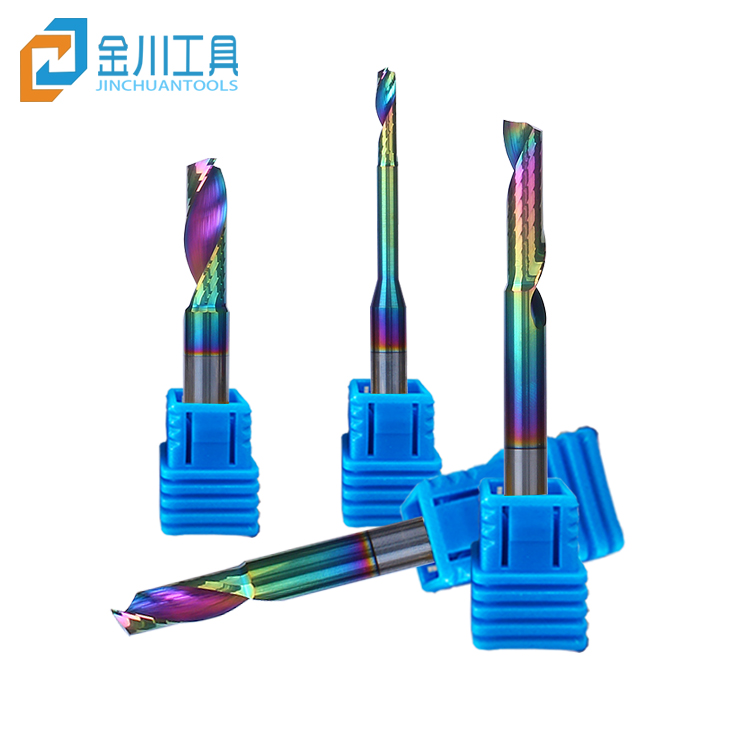

Ultra micro imported nano blue coating is suitable for high-speed cutting, with better cutting performance and more oxidation resistance

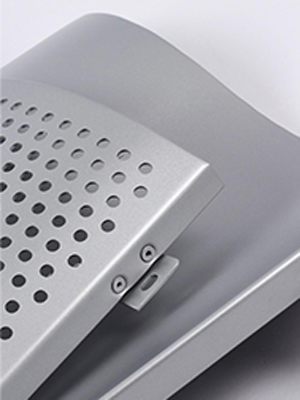

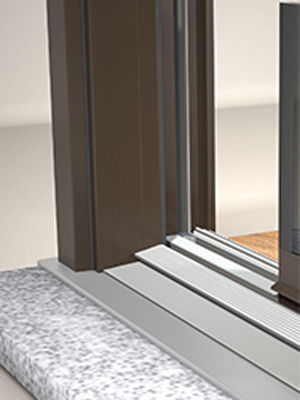

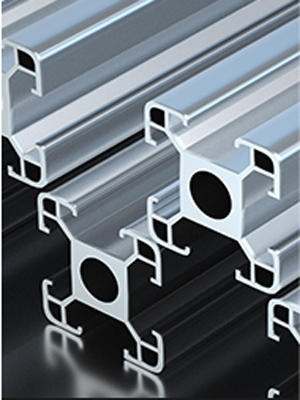

Aluminum profile, aluminum alloy doors and windows, aluminum plastic doors and windows, aluminum alloy curtain wall, etc

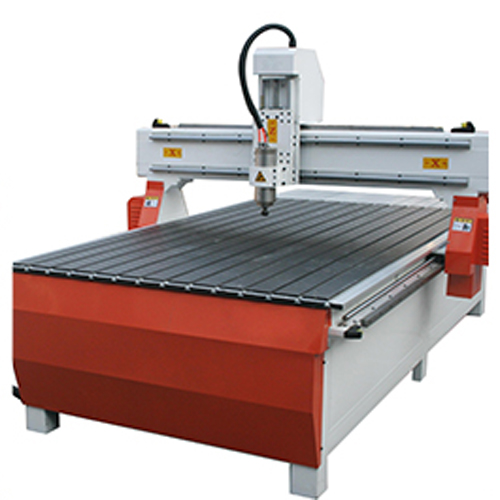

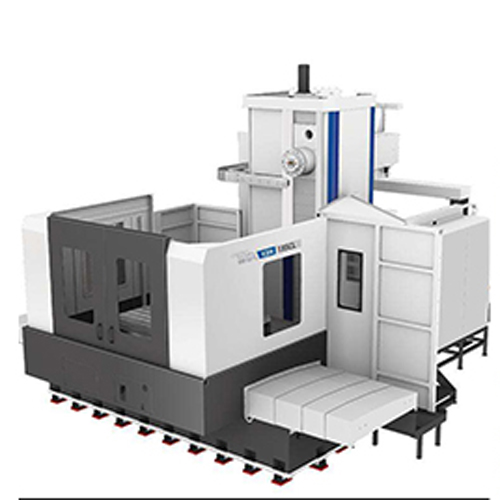

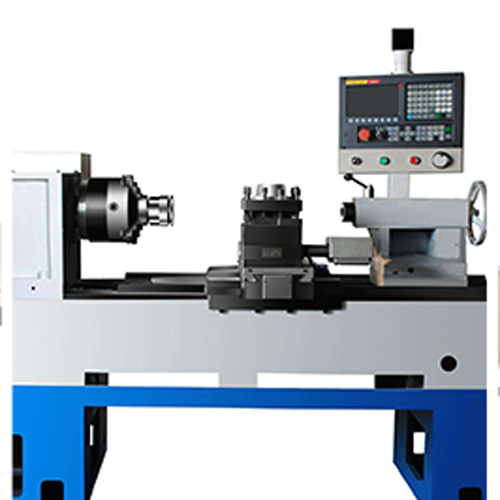

CNC, CNC milling machine, engraving machine
