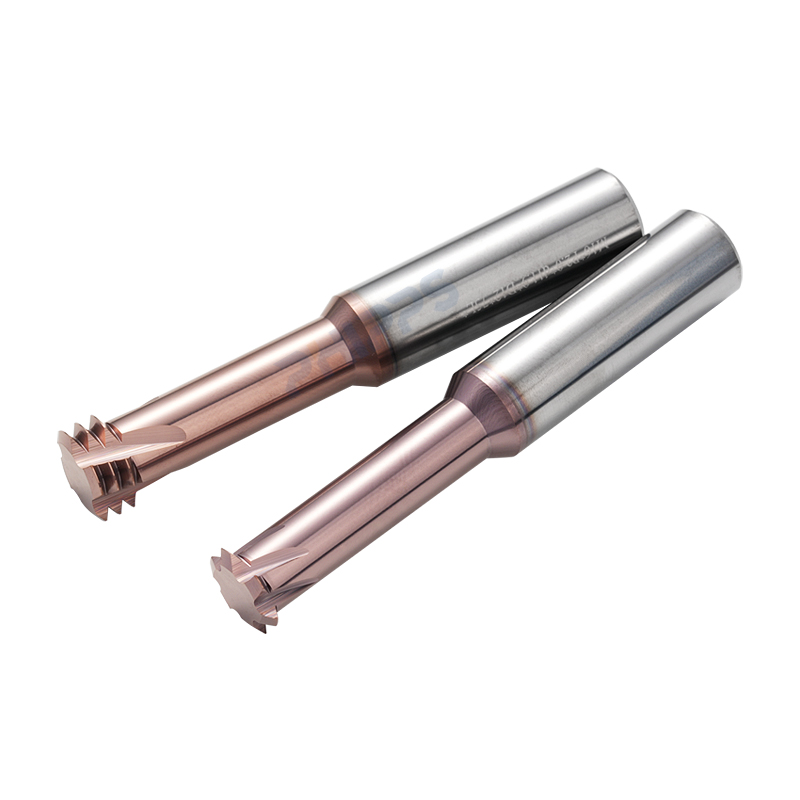

Carbide ISO Metric three-tooth M3 M8 CNC Mill End mills Thread Processing Precision Milling Cutter
| Product Name |
Thread Processing Precision Milling Cutter |
| Material |
Tungsten carbide |
| Flutes |

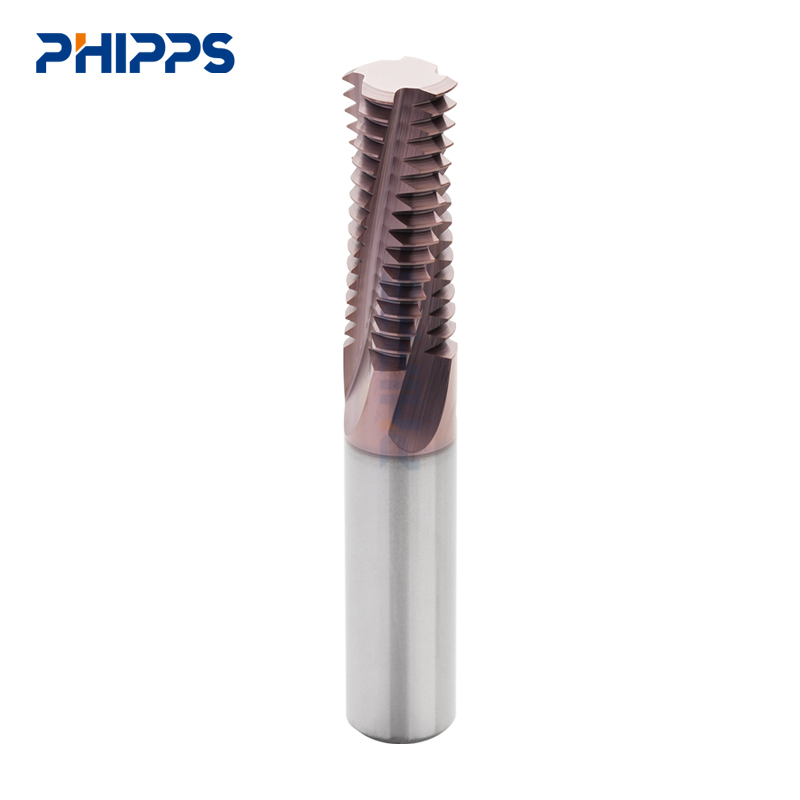

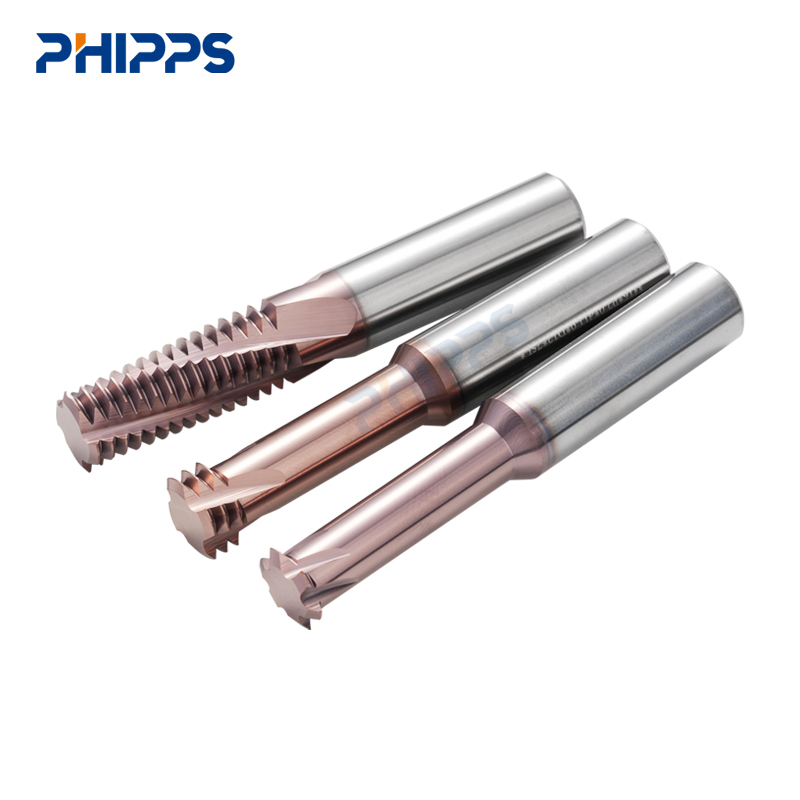

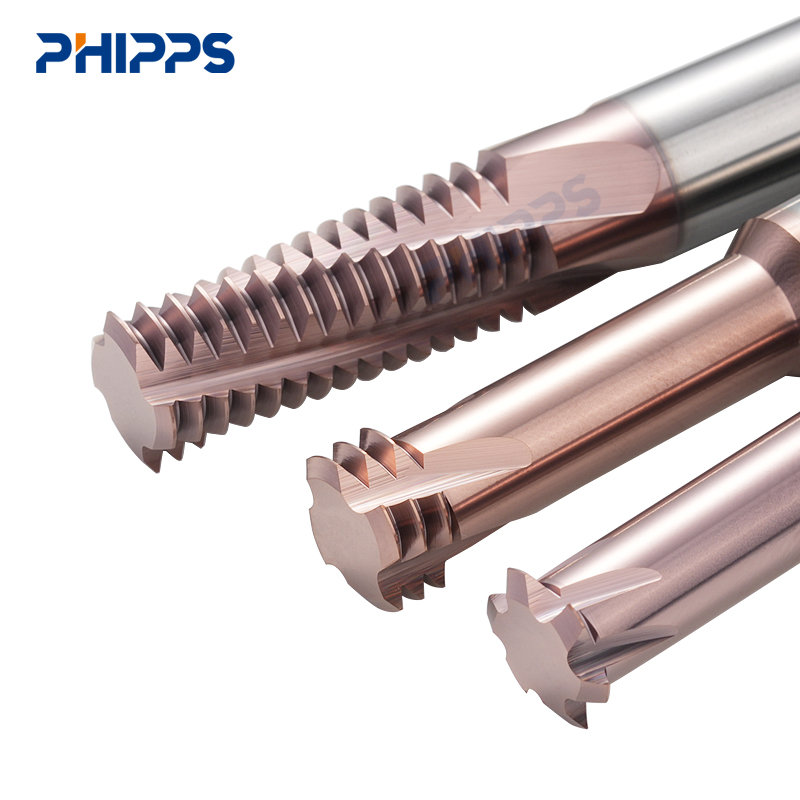

Single flute / three flute / full form |
| Tolerance |
H6 |
| Suitable for |
Stainless steel, titanium alloy, 40CR, CR12, SUS, P20, 718, S136, 718 |
| Machine Type |
CNC machine, engraving machine, etc |
| Used |
High speed cutting |
All specs can be customized. For more information, please contact us at any time.

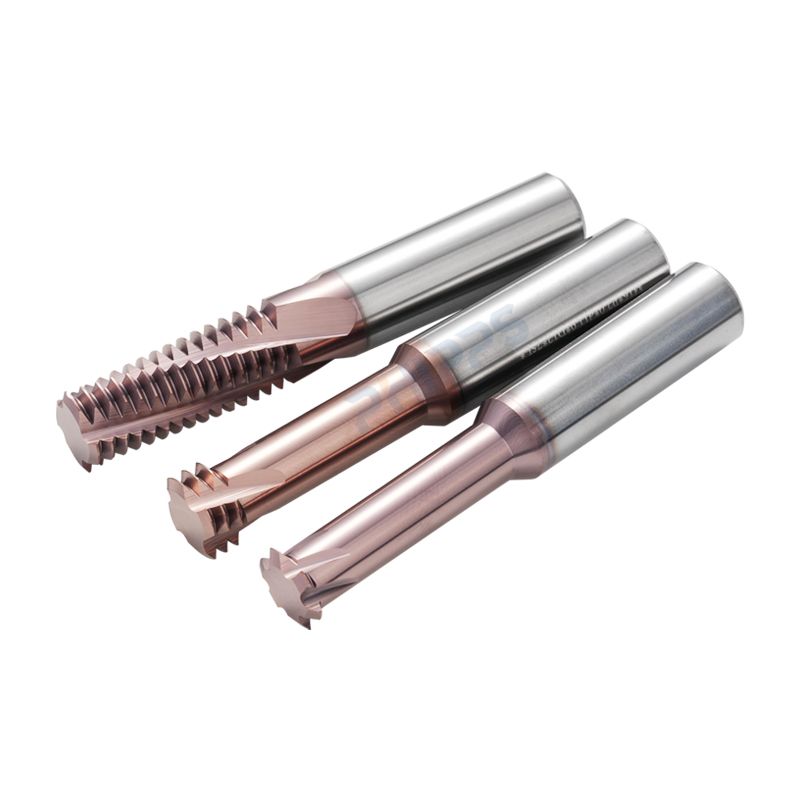

Solid Carbide Threading Endmills for Internal Thread
Can be used for processing 60 degree threads/American threads, nut processing, various pitches and tapered threads
- Size: M3-M26
- Coating: Balzers
- The advantages of using the Solid line are:
- Small thread due to small cutting diameter
- Multi flutes for extremely fast machining
- High rigidity
- Unique design for machining hard materials
- High accuracy
- Designed to fit specific applications
- Cylindrical shank - hydraulic and shrink fit clamping
- Minimal run-out
1. Super Raw Material
All cutting materials are from international famous brands, high hardness, long tool life.
| HRC |
Grade |
Helix Angle |
Co Content (%) |
Grain Size (UM) |
Bending Strength (N/mm²) |
Application |
| HRC45 |
YG10X |
35° |
10% |
0.8 |
3800 |
General steel, cast iron. |
| HRC55 |
ZK30UF |
35° |
10% |
0.6 |
3800 |
Carbon steel, alloy steel, cast iron. |
| HRC60 |
GU25UF |
35°/45° |
12% |
0.4-0.5 |
4200 |
Carbon steel, alloy steel, stainless steel, cast iron. |
| HRC65 |
GU25UF |
45° |
12% |
0.4 |
4300 |
Carbon steel, alloy steel, stainless steel, cast iron. |
2. Super Coating
Good coating can improve tools life and production efficiency, and we provide professional suggestions according to your cutting requirements.
| Coating |
Hardness (HV) |
Thickness (UM) |
Friction Coefficient |
Oxidation Temp. (°C) |
Color |
| AlTiN |
3500 |
2.5-3 |
0.3 |
850°C |
Black |
| TiAlN |
2800 |
2.5-3 |
0.3 |
900°C |
Violet |
| TiSiN |
3600 |
3 |
0.45 |
1100°C |
Copper |
| AlTiSiN |
4000 |
4 |
0.4 |
1200°C |
Blue |
| TiN |
2500 |
2.5-3 |
0.5 |
600°C |
Gold |
Metric system A60 single tooth thread end mill for steel

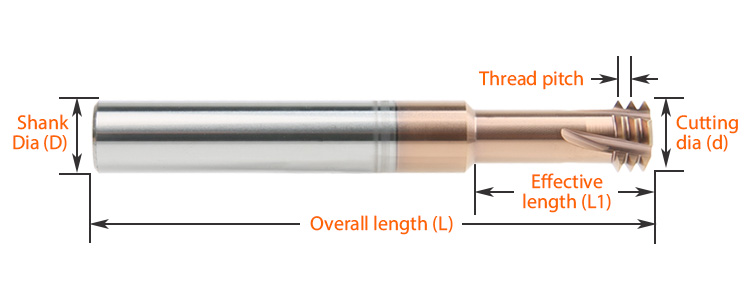

| Model |
Pitch |
Cutting Dia.(d) |
Effective length (L1) |
Shank Dia.(D) |
Overall length(L) |
Flute(F) |
| M0.8*0.2 | 0.2-0.225 | 0.55 | 2 | 4 | 50 | 3 |
| M0.9*0.225 | 0.225-0.3 | 0.6 | 2 | 4 | 50 | 3 |
| M1*0.25 | 0.25-0.35 | 0.73 | 2.3 | 4 | 50 | 3 |
| M1.2*0.25 | 0.25-0.35 | 0.92 | 2.8 | 4 | 50 | 3 |
| M1.4*0.3 | 0.3-0.4 | 1.05 | 3.2 | 4 | 50 | 3 |
| M1.6*0.35 | 0.35-0.4 | 1.2 | 3.5 | 4 | 50 | 3 |
| M2*0.4 | 0.4-0.5 | 1.54 | 4.5 | 4 | 50 | 3 |
| M2.5*0.45 | 0.45-0.5 | 1.96 | 5 | 4 | 50 | 3 |
| M3*0.5 | 0.5-0.6 | 2.4 | 7.5 | 4 | 50 | 3 |
| M5*0.8 | 0.5-0.8 | 3 | 12 | 4 | 50 | 4 |
| M4*0.7 | 0.5-0.8 | 3.15 | 12 | 4 | 50 | 3 |
| M5*0.8 | 0.5-1.0 | 4 | 12 | 4 | 50 | 4 |
| M5*0.8 | 0.5-1.0 | 4 | 12 | 6 | 50 | 3 |
| M6*1.0 | 0.5-1.0 | 4.75 | 15 | 6 | 50 | 3 |
| M8*1.25 | 0.5-1.25 | 6 | 20 | 6 | 60 | 3 |
| M10*1.5 | 0.8-1.5 | 7.9 | 25 | 8 | 60 | 4 |
| M10*1.5 | 0.8-1.5 | 8 | 25 | 8 | 75 | 4 |
| M12*1.5 | 1.25-2.0 | 9.4 | 30 | 10 | 75 | 4 |
| M12*1.75 | 1.0-3.0 | 9.9 | 30 | 10 | 75 | 4 |
| M16*2.0 | 2.0-5.0 | 12 | 35 | 12 | 75 | 4 |
| M16*2.0 | 1.0-5.0 | 12 | 35 | 12 | 83 | 4 |
| M18*2.5 | 1.0-5.0 | 14 | 40 | 14 | 100 | 5 |
| M22*3.0 | 2.0-5.0 | 16 | 45 | 16 | 100 | 5 |
British system G55 single tooth thread end mill for steel
| Model |
Pitch |
Cutting Dia.(d) |
Effective length(L1) |
Shank Dia.(D) |
Overall length(L) |
Flute(F) |
| d3.0*G55 | 0.5-1.0 | 4 | 9 | 4 | 50 | 3 |
| d4.0*G55 | 0.5-1.0 | 4 | 12 | 4 | 50 | 4 |
| d4.6*G55 | 0.5-1.25 | 4.6 | 16 | 6 | 50 | 3 |
| d5.0*G55 | 0.5-1.25 | 5 | 16 | 6 | 50 | 4 |
| d6.0*G55 | 0.5-1.25 | 6 | 16 | 6 | 50 | 4 |
| d8.0*G55 | 1.0-2.0 | 8 | 20 | 8 | 75 | 4 |
| d10*G55 | 1.0-2.5 | 10 | 28 | 10 | 75 | 5 |
| d12*G55 | 2.0-2.5 | 12 | 30 | 12 | 75 | 5 |

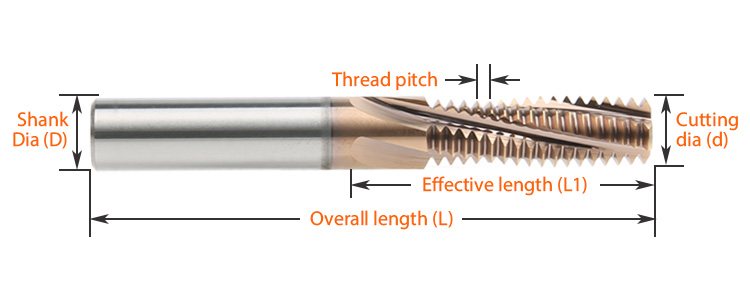

Three teeth thread end mill for steel
| Model |
Pitch |
Cutting Dia.(d) |
Effective length(L1) |
Flute(F) |
Shank Dia.(D) |
Overall length(L) |
| M1*0.25 | 0.25 | 0.73 | 2.3 | 3 | 4 | 50 |
| M1.2*0.25 | 0.25 | 0.92 | 3.3 | 3 | 4 | 50 |
| M1.4*0.3 | 0.3 | 1.05 | 3.2 | 3 | 4 | 50 |
| M1.6*0.35 | 0.35 | 1.21 | 3.5 | 3 | 4 | 50 |
| M1.8*0.35 | 0.35 | 1.4 | 4 | 3 | 4 | 50 |
| M2*0.4 | 0.4 | 1.54 | 4.5 | 3 | 4 | 50 |
| M2.2*0.45 | 0.45 | 1.65 | 5 | 3 | 4 | 50 |
| M2.5*0.45 | 0.45 | 1.96 | 5.5 | 3 | 4 | 50 |
| M3*0.5 | 0.5 | 2.42 | 7 | 3 | 4 | 50 |
| M3.5*0.6 | 0.6 | 2.75 | 9 | 3 | 4 | 50 |
| M4*0.5 | 0.5 | 3.4 | 8 | 3 | 4 | 50 |
| M4*0.7 | 0.7 | 3.15 | 8.8 | 3 | 4 | 50 |
| M4.5*0.75 | 0.75 | 3.5 | 11 | 3 | 4 | 50 |
| M5*0.5 | 0.5 | 3.9 | 8 | 3 | 4 | 50 |
| M5*0.75 | 0.42 | 3.9 | 8 | 3 | 4 | 50 |
| M5*0.8 | 0.8 | 3.95 | 12 | 3 | 4 | 50 |
| M5*0.8 | 0.8 | 4 | 12 | 3 | 6 | 50 |
| M6*0.5 | 0.5 | 5 | 13 | 3 | 6 | 50 |
| M6*0.75 | 0.75 | 5 | 13 | 3 | 6 | 50 |
| M6*1.0 | 1 | 3.95 | 14 | 3 | 4 | 50 |
| M6*1.0 | 1 | 4.75 | 12 | 3 | 6 | 50 |
| M8*0.75 | 0.75 | 5.95 | 20 | 3 | 6 | 50 |
| M8*1.0 | 1 | 5.9 | 20 | 3 | 6 | 60 |
| M8*0.5 | 0.5 | 6 | 16 | 4 | 6 | 50 |
| M8*1.25 | 1.25 | 6 | 17.5 | 3 | 6 | 60 |
| M10*1.0 | 1 | 7.9 | 21 | 4 | 8 | 65 |
| M10*1.25 | 1.25 | 7.9 | 21 | 4 | 8 | 65 |
| M10*1.5 | 1.5 | 7.9 | 22 | 4 | 8 | 60 |
| M12*1.0 | 1 | 9.9 | 30 | 4 | 10 | 75 |
| M12*1.5 | 1.5 | 9.9 | 30 | 4 | 10 | 75 |
| M12*1.25 | 1.25 | 9.9 | 30 | 4 | 10 | 75 |
| M12*1.75 | 1.75 | 9.9 | 28 | 4 | 10 | 75 |
| M14*2.0 | 2 | 9.9 | 28 | 4 | 10 | 75 |
| M16*1.5 | 1.5 | 11.9 | 30 | 4 | 12 | 75 |
| M16*2.0 | 2 | 11.9 | 35 | 4 | 12 | 75 |
| M22*2.5 | 2.5 | 13.9 | 40 | 5 | 14 | 100 |
| M22*2.5 | 2.5 | 15.9 | 50 | 5 | 16 | 100 |
| M24*3.0 | 3 | 15.9 | 50 | 5 | 16 | 100 |
| M24*3.5 | 3.5 | 15.9 | 50 | 6 | 16 | 100 |

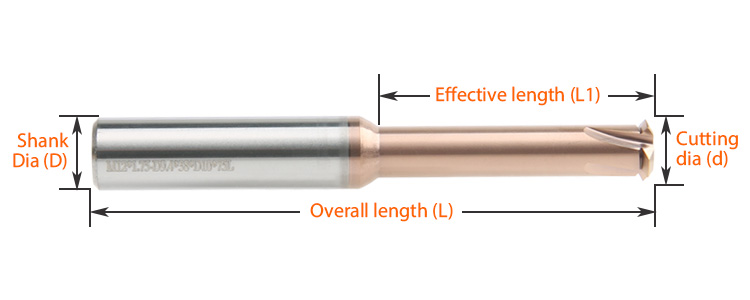

| Model |
Pitch |
Cutting Dia. (d) |
Shank Dia. (D) |
Effective length (L1) |
Overall length(L) |
Flute (F) |
| M1.6*0.35 | 0.35 | 1.2 | 4 | 3.4 | 50 | 3 |
| M2*0.4 | 0.4 | 1.54 | 4 | 5 | 50 | 3 |
| M2.5*0.45*d1.96*D4 | 0.45 | 1.96 | 4 | 5.5 | 60 | 3 |
| M3*0.5*d2.4*D4 | 0.5 | 2.4 | 4 | 7.5 | 50 | 3 |
| M4*0.5*d3*D4 | 0.5 | 3 | 4 | 8 | 50 | 3 |
| M4*0.7*d3.15*D4 | 0.7 | 3.15 | 4 | 10 | 50 | 3 |
| M5*0.5*d3.9*D4 | 0.5 | 3.9 | 4 | 12 | 50 | 3 |
| M4.5*0.75*d3.4*D4 | 0.75 | 3.4 | 4 | 9 | 50 | 3 |
| M5*0.5*d3.9*D4 | 0.5 | 3.9 | 4 | 12 | 50 | 3 |
| M5*0.8*d3.95*D4 | 0.8 | 3.95 | 4 | 12 | 50 | 3 |
| M5*0.8*d3.9*D6 | 0.8 | 3.9 | 6 | 10 | 50 | 3 |
| M6*0.5*d4.8*D6 | 0.5 | 4.8 | 6 | 13 | 50 | 3 |
| M6*0.75*d3.9*D4 | 0.75 | 3.9 | 4 | 12 | 50 | 3 |
| M6*0.75*d4.8*D6 | 0.75 | 4.8 | 6 | 17 | 50 | 3 |
| M6*d1.0*d3.9*D4 | 1 | 3.9 | 4 | 12 | 50 | 3 |
| M6*d1.0*d4.75*D6 | 1 | 4.75 | 6 | 13 | 50 | 3 |
| M8*0.5*d6.0*D6 | 0.5 | 6 | 6 | 16 | 60 | 3 |
| M8*0.75*d5.9*D6 | 0.75 | 5.95 | 6 | 18 | 60 | 3 |
| M8*1.0vd5.9*D6 | 1 | 5.95 | 6 | 15 | 60 | 3 |
| M8*1.25*d5.9*D6 | 1.25 | 5.9 | 6 | 20 | 60 | 3 |
| M10*0.5*d7.9*D8 | 0.5 | 7.9 | 8 | 20 | 65 | 3 |
| M10*0.75*d7.9*D8 | 0.75 | 7.9 | 8 | 22 | 65 | 4 |
| M10*d1.0*d7.9*D8 | 1 | 7.9 | 8 | 20 | 65 | 3 |
| M10*1.5*d7.7*D8 | 1.5 | 7.7 | 8 | 22 | 65 | 3 |
| M10*1.25*d7.7*D8 | 1.25 | 7.9 | 8 | 20 | 75 | 3 |
| M10*1.5*d7.7*D8 | 1.5 | 7.7 | 8 | 20 | 75 | 3 |
| M12*0.5*d9.9*D10 | 0.5 | 9.9 | 10 | 25 | 75 | 3 |
| M12*0.75*d10.0*D10 | 0.75 | 9.9 | 10 | 25 | 75 | 4 |
| M12*d1.0*d9.9*D10 | 1 | 9.9 | 10 | 28 | 75 | 4 |
| M12*1.25*d9.9*D10 | 1.25 | 9.9 | 10 | 25 | 75 | 4 |
| M12*1.5*d9.4*D10 | 1.5 | 9.4 | 10 | 24 | 75 | 4 |
| M12*1.75*d8.5*D10 | 1.75 | 8.5/9.5 | 10 | 25 | 75 | 4 |
| M14*1.0*d11.9*D12 | 1 | 11.9 | 12 | 30 | 75 | 4 |
| M14*1.5-d11.2-D12 | 1.5 | 11.2 | 12 | 30 | 75 | 4 |
| M16*1.0*d13.9*D14 | 1 | 13.9 | 14 | 30 | 83 | 4 |
| M16*1.5*d12*D12 | 1.5 | 12 | 12 | 30 | 75 | 4 |
| M16*1.5*d13.9*D14 | 1.5 | 13.9 | 14 | 33 | 83 | 4 |
| M20*1.5*d16.0*D16 | 1.5 | 15.95 | 16 | 40 | 100 | 5 |
| M14*2.0*d9.9vD10 | 2 | 9.9 | 10 | 30 | 75 | 4 |
| M16*2.0*d12*D12 | 2 | 12 | 12 | 30 | 75 | 4 |
| M20*2.0*d16.0*D16 | 2 | 16 | 16 | 40 | 100 | 5 |
| M18*2.5*d13.9*D14 | 2.5 | 13.9 | 14 | 32 | 100 | 5 |
| M22*2.5*d16.0*D16 | 2.5 | 16 | 16 | 40 | 100 | 5 |
| M24*3.0*d16*D16 | 3 | 16 | 16 | 40 | 100 | 5 |
| M30*P3.5*d16*D16 | 3.5 | 16 | 16 | 40 | 100 | 5 |
| M36*P4.0*d20*D20 | 4 | 20 | 20 | 40 | 100 | 5 |
Remarks: The milling cutter model marked with color is a common model.
Product length unit: mm
