Standard size or make to order for special specifications
| Parameter | Specification Details |
|---|---|
| HRC Grade | 55 |
| Shape of Head | Flat |
| Flutes | 4 |
| Over Length | 50 mm |
| D (Dia. of edge) | 8.0 mm |
| d (Dia. of shank) | 8.0 mm |

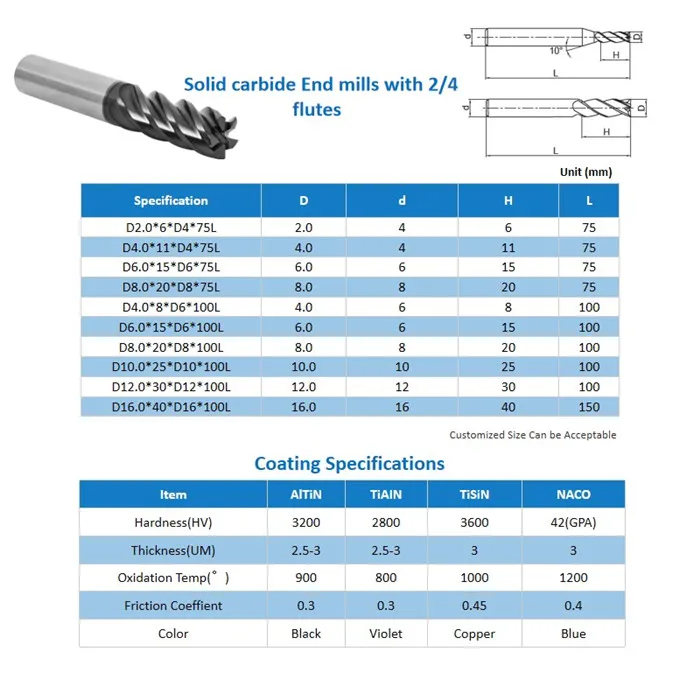

| Specification | Cutting Diameter | Shank Diameter | Flute Length | Overall Length |
|---|---|---|---|---|
| D2.0*6*D4*75L | 2.0 | 4 | 6 | 75 |
| D4.0*11*D4*75L | 4.0 | 4 | 11 | 75 |
| D6.0*15*D6*75L | 6.0 | 6 | 15 | 75 |
| D8.0*20*D8*75L | 8.0 | 8 | 20 | 75 |
| D4.0*8*D6*100L | 4.0 | 6 | 8 | 100 |
| D6.0*15*D6*100L | 6.0 | 6 | 15 | 100 |
| D8.0*20*D8*100L | 8.0 | 8 | 20 | 100 |
| D10.0*25*D10*100L | 10.0 | 10 | 25 | 100 |
| D12.0*30*D12*100L | 12.0 | 12 | 30 | 100 |
| D16.0*40*D16*100L | 16.0 | 16 | 40 | 150 |
| Feature Details | Specification parameters |
|---|---|
| Flutes No. | 2/3/4 Flutes |
| Material | HSS, Carbide etc. |
| Coating | AlTiN, NACO BLUE / NACO BLACK / TiN etc. |
| Helix Angle | 35°, 45° |
| Hardness | HRC45/55/58/65 |
| Size | Overall Length: 50-150mm |
| Customized | Accept |
| Smooth Finish | Highly Polished |
| Feature | Excellent chip evacuation |
| Measurement | Metric |
| HRC45 | HRC55 | HRC60 | HRC65 |
|---|---|---|---|
| YG10X | YG10.2 & WF25 (Taiwan) | K44 & K40 (German) | H10F (Sweden) |
|
Grain Size: 0.7um Co: 10 % Flexural strength: 3320N/mm2 |
Grain Size: 0.6um Co: 10 % Flexural strength: 4000N/mm2 |
Grain Size: 0.5um Co: 12 % Flexural strength: 4300N/mm2 |
Grain Size: 0.5um Co: 10 % Flexural strength: 4300N/mm2 |

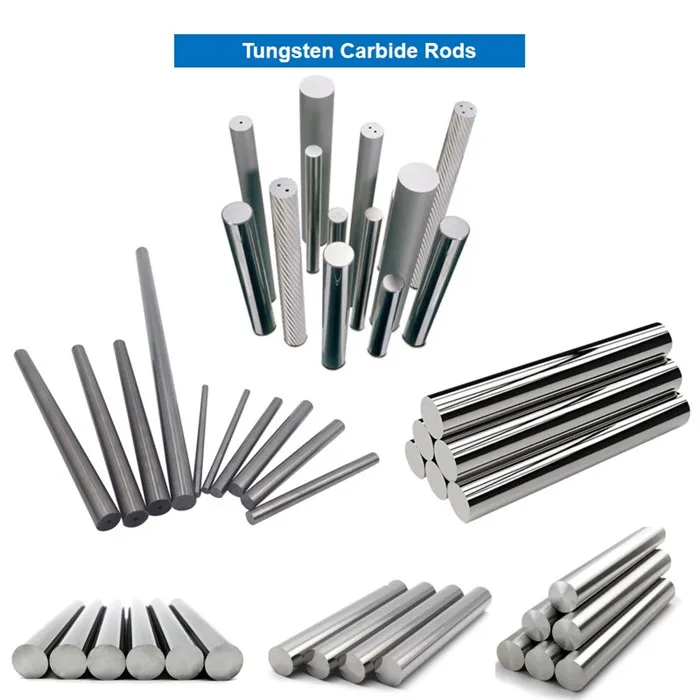

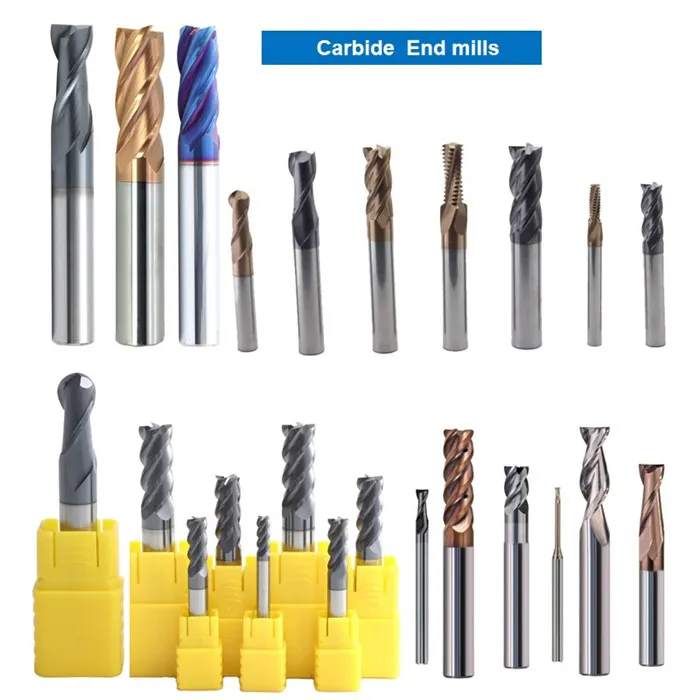

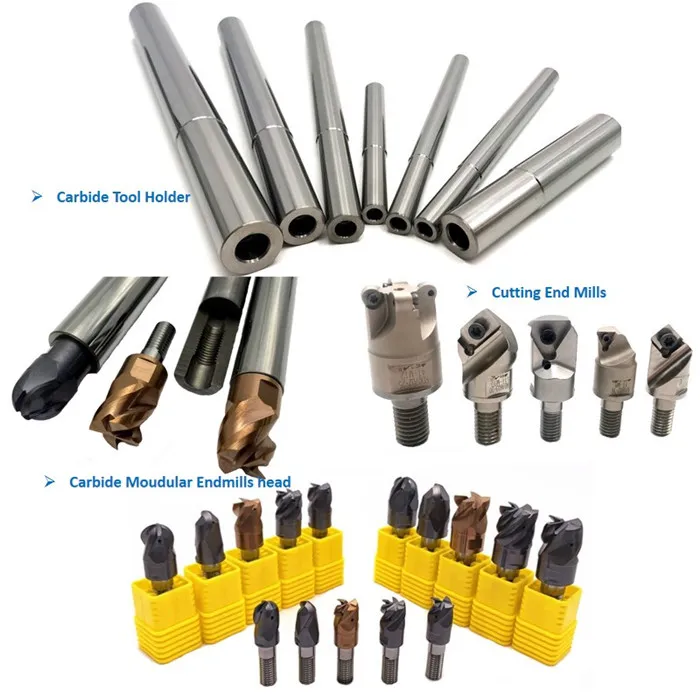

Our Main products include: Carbide Screwed Boring Bar, Plates, Rods, Sticks, Bushings, TP nozzles, 3D Printer Nozzles, Saw Blades, End Mills & Drill Bits, CNC inserts, Value Seats, Rotary Burrs, wheel cutters, Grits, Customized cutter: woodworking tool, V-cutter, textile cutter, shoes cutter ects. Any kinds of customized carbide products.

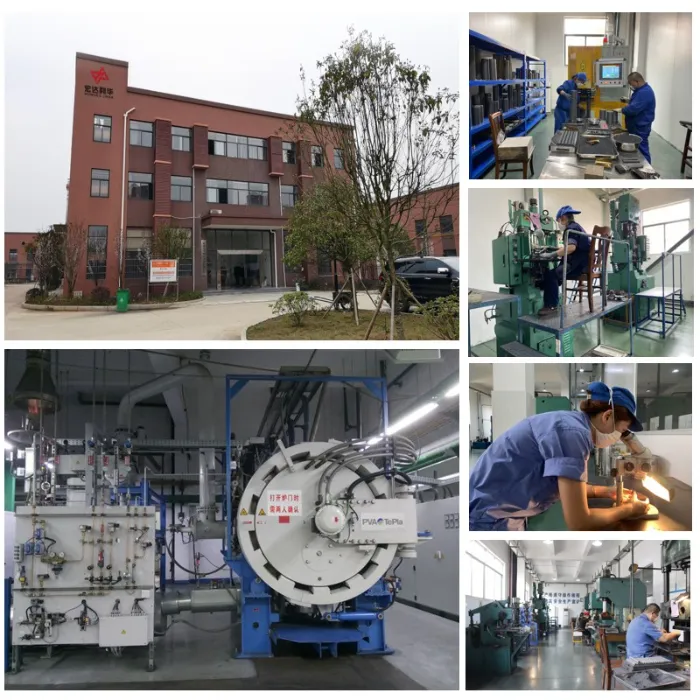

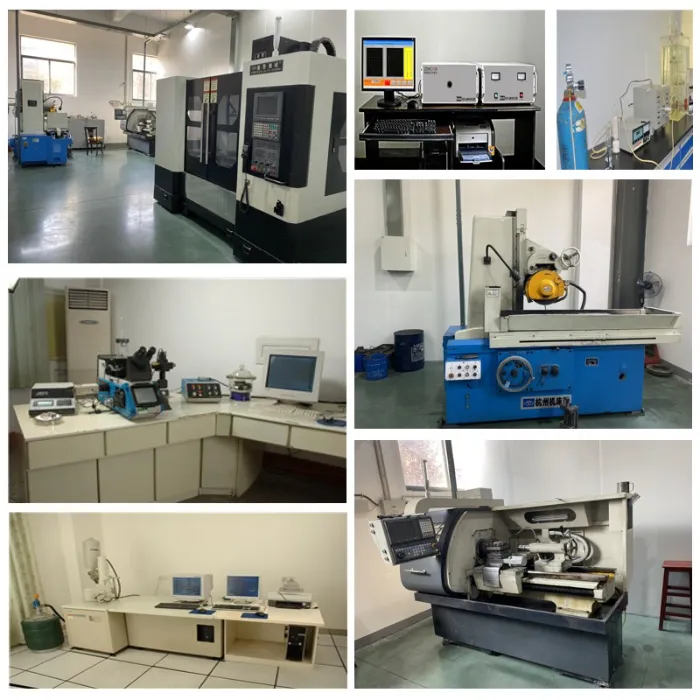

We have sophisticated equipments, such as Sintering Furnace, Automatic suppress Machine, Manual Hydraulic Suppress Machine, Ball Mill Machine, Drying Machine, Mixing Machine ect. Our production capacity is up to 15 Tons per month. Customization is welcome; customized samples can be ready in 3-5 days, and items in stock can be delivered within 1 day.
We have a professional QC team following the Quality Management System, covering the incoming raw materials, production processes, finished products, and packaging to ensure the output of high-quality products.
Our end mills are ideal for processing a wide range of workpiece materials including general steel, mould steel, low alloy steel, hardened steel, stainless steel, and various alloy steels.
We supply solid carbide end mills with hardness grades optimized for specific applications: HRC45 (using YG10X raw material), HRC55 (YG10.2 & WF25), HRC60 (K44 & K40), and HRC65 (H10F).
We offer advanced coatings such as AlTiN and NACO Blue/Black. These coatings provide excellent thermal stability and oxidation resistance, extending tool life during high-speed cutting operations.
Yes, custom specifications and designs are welcome. We can prepare custom samples in 3-5 days based on your specific requirements and drawings.
Our production adheres strictly to standard quality control protocols. Our specialized QC team monitors the complete workflow, including incoming raw materials inspection, in-process checking, and final packaging checks.
Our standard solid carbide square end mills are designed with a 35-degree helix angle, which balance edge strength and chip disposal capability perfectly for general-purpose CNC milling.
