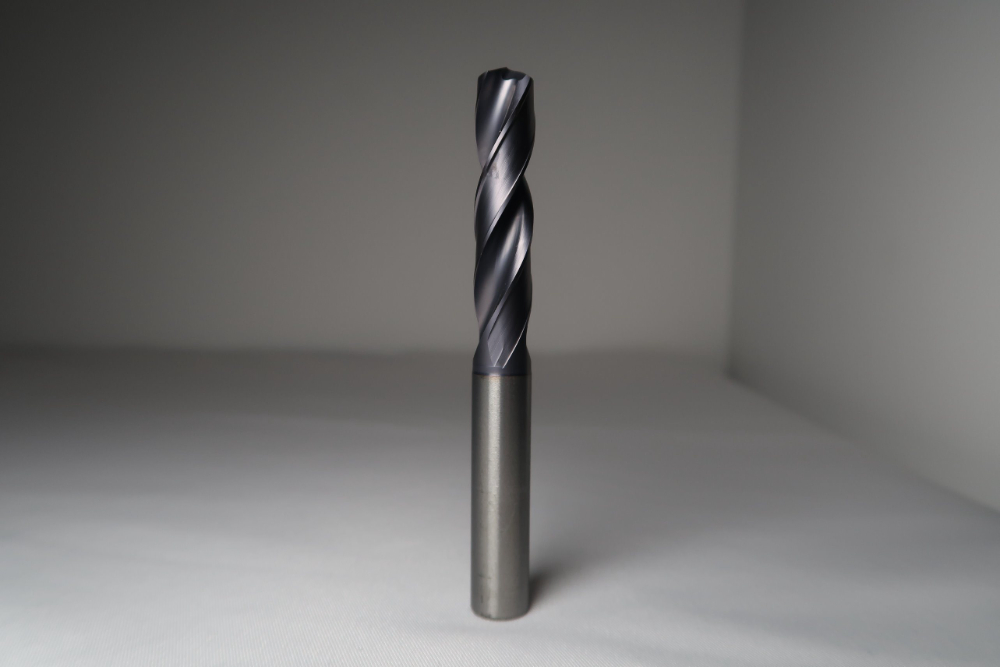

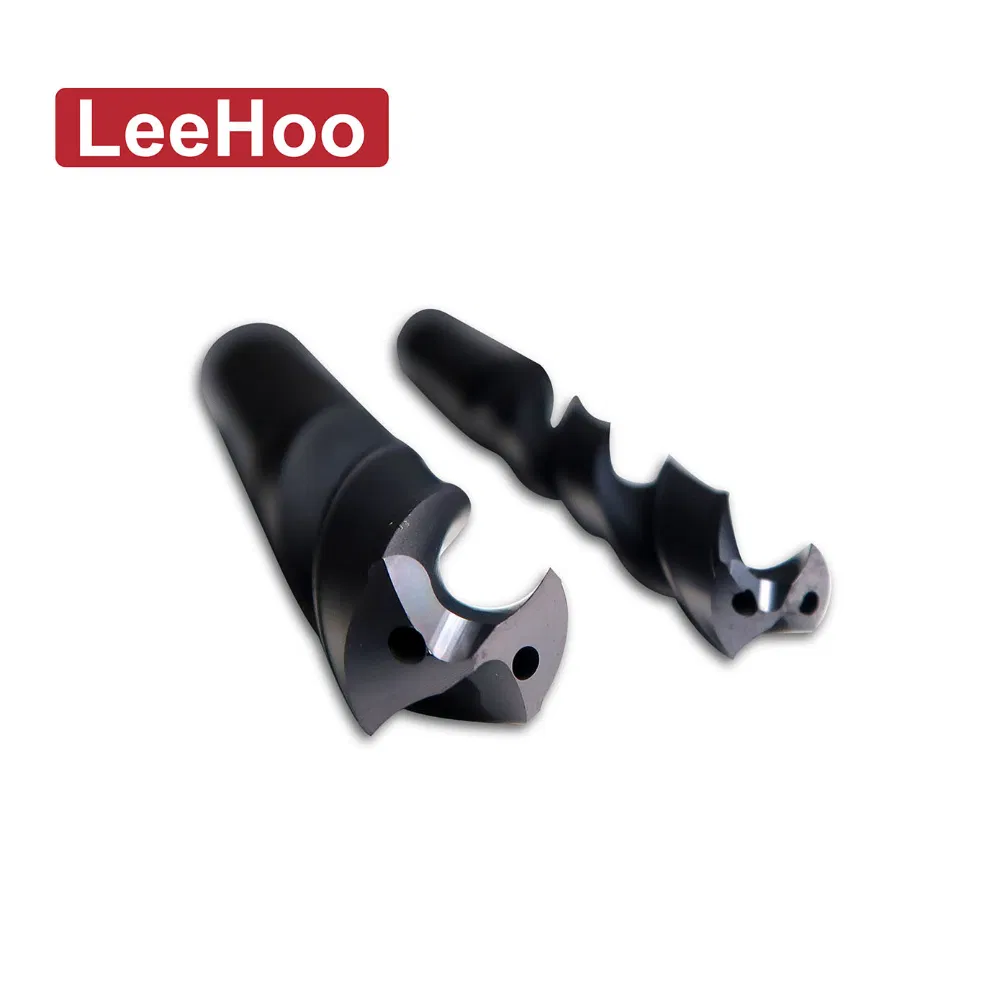

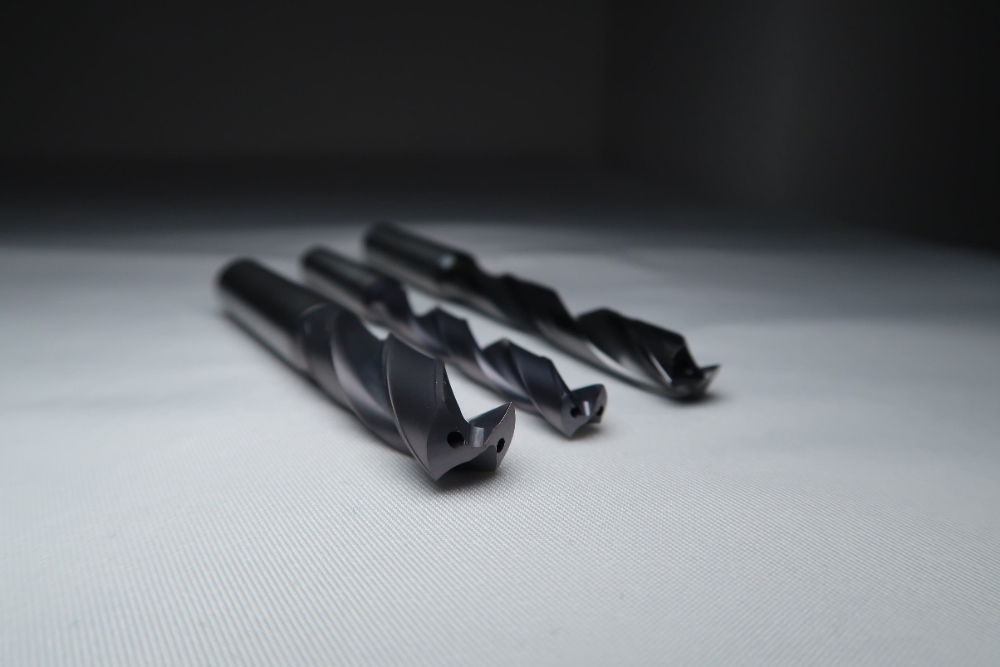

Tungsten Carbide Indexable End Mill Milling Cutter Aluminum 135 Degree/118 Degree CNC Drilling Solid Tungsten Carbide Center Spot External Coolant Drill Bits

Customization: Available
Customized: Customized
Length: Taper-length

Product Description

Basic Info

Model NO. drill
Type Twist Drill Bit
Material Solid Carbide
Usage Well Drilling, PCB Drilling, Metal Drilling
Free Service OEM
Flutes Number 2
Flute Diameter 3.1~20mm
Flute Length 28~150mm
Shank Diameter 4~20mm
Total Lengthv 66~153 mm
Application CNC Drilling Machine/Machining Center
OEM/ODM According to Samples/Drawings
Transport Package 1PC in a Plastic Tube, 10PCS a Group
Specification Customized
Origin China
HS Code 820770000
Production Capacity 500000

Packaging & Delivery

Package Size 20.00cm * 5.00cm * 5.00cm
Package Gross Weight 1.000kg

Product Description

Tungsten Carbide Indexable End Mill Milling Cutter Aluminum 135 Degree/118 Degree CNC Drilling Solid Tungsten Carbide Center Spot External Coolant Drill Bits
1. Anti-broken Heat Resistance And Impact Resistance Made by ultra micro-grain raw material imported from Germany, improve heat resistance and impact resistance.
2. Chipping Removal Effect Slot with big capacity, efficient chipping removal in high-speed cutting.
3. Improve Quality Of Surface Special design of cutting edge, decreasing of resistance.
ITEM SPECIFICATION DIAMETER TOTAL LENGTH FLUTE LENGTH Shank Length
D2103-3D D3-D3.7 6 62 20 36
D2103-3D D4-D4.7 6 66 24 36
D2103-3D D4.8-D6 6 66 28 36
D2103-3D D6.1-D7 8 79 34 36
D2103-3D D7.1-D8 8 79 41 36
D2103-3D D8.1-D10 10 89 47 40
D2103-3D D10.3-D12 12 102 55 45
D2103-3D D12.1-D14 14 107 60 45
D2103-3D D14.1-D16 16 115 65 45
D2103-3D D16.1-D18 18 123 73 50
D2103-3D D18.1-D20 20 131 79 50
D2103-5D D3-D3.7 6 66 28 36
D2103-5D D4-D4.7 6 74 36 36
D2103-5D D4.8-D6 6 82 44 36
D2103-5D D6.1-D8 8 91 53 36
D2103-5D D8.1-D10 10 103 61 40
D2103-5D D10.3-D12 12 118 71 45
D2103-5D D12.1-D14 14 124 77 48
D2103-5D D14.1-D16 16 133 83 48
D2103-5D D16.1-D18 18 143 93 48
D2103-5D D18.1-D20 20 153 101 50

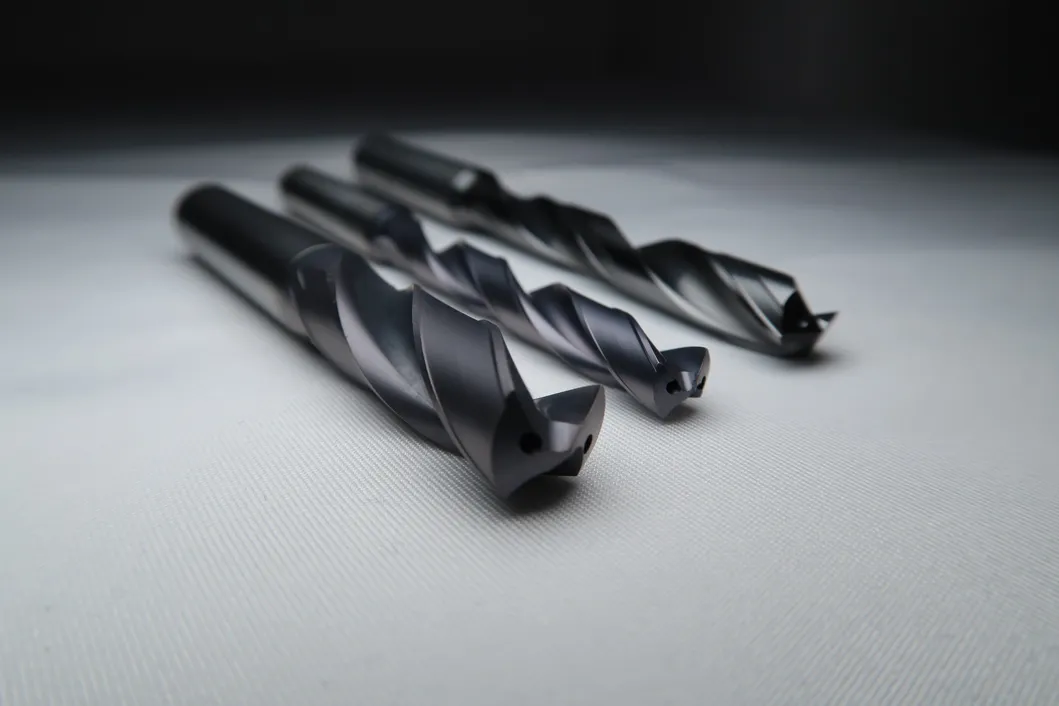

Milling Cutter Detail 1

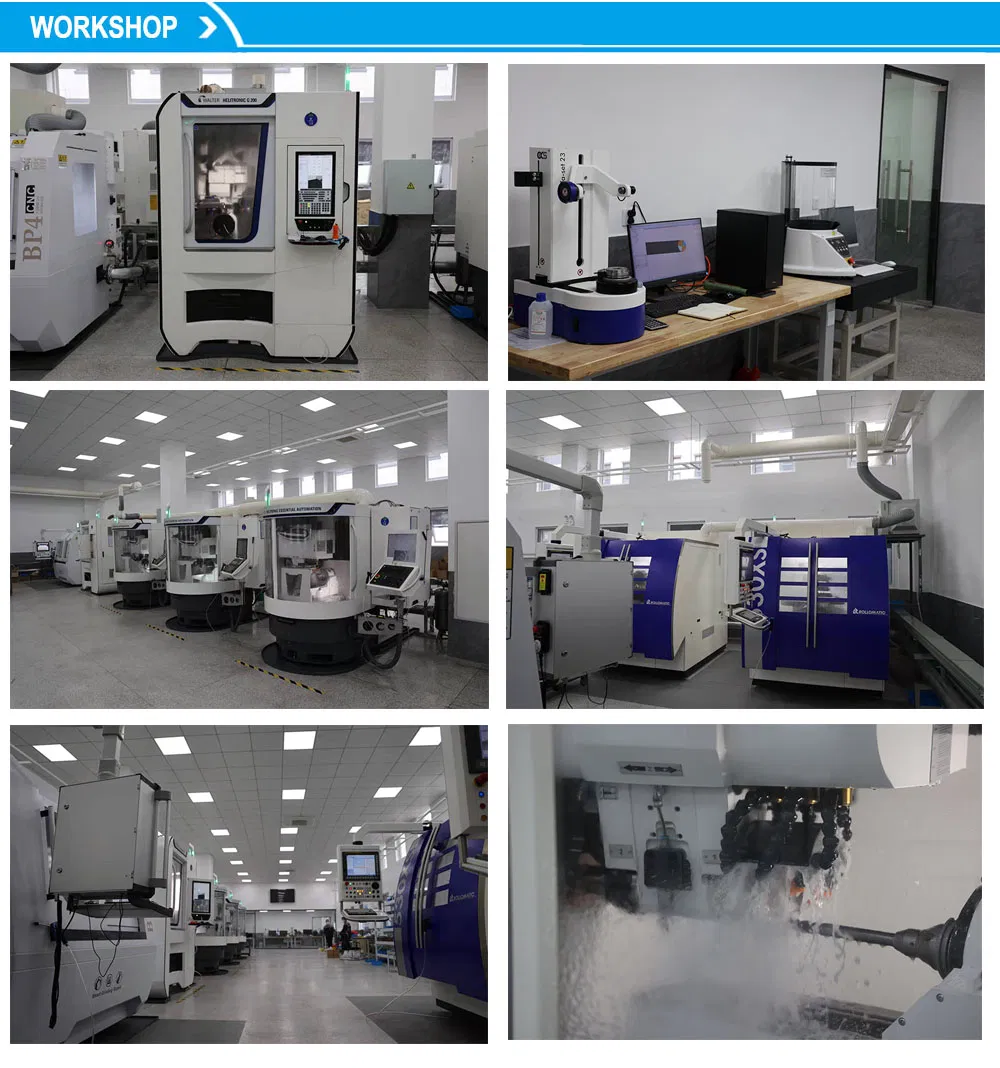

Milling Cutter Detail 2

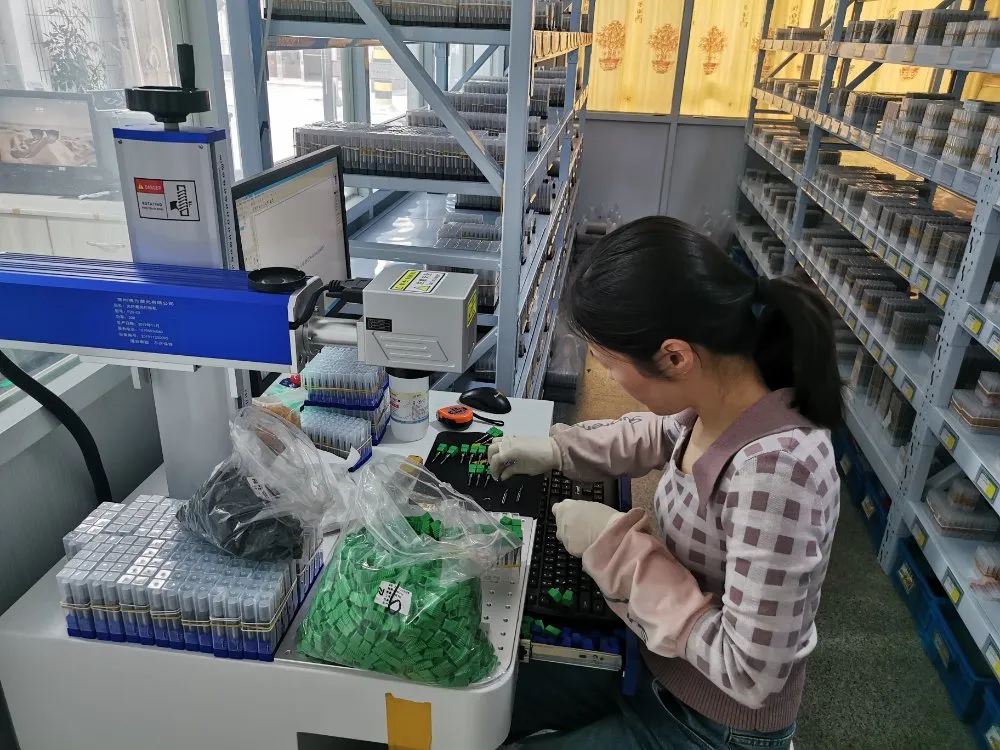

Milling Cutter Detail 3
Milling Cutter Detail 4
Milling Cutter Detail 5
Tungsten Carbide Drills Banner

FAQ

When can I get the price?

We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please contact us directly so that we will regard your inquiry priority.

How can I get a sample to check your quality?

After price confirmation, you can require samples to check our quality.

How long can I expect to get the sample?

After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 workdays. You can use your own express account or prepay us if you do not have an account.

How long does the whole procedure being worked out?

After you place an order, the production handling time is about 20 days. We need 5 days to prepare all the stuff then 15 days for manufacturing.

What about the transportation and delivery date?

Normally we use shipment to transport the goods. It is about 25-40 days. It also depends on which country and port you are in. It could be shorter if you need to send the goods like Asian. If there are some emergencies we can send the goods via air express, as long as you afford the traffic expense.

Are you a trading company or manufacturer?

We are a professional manufacturer.
